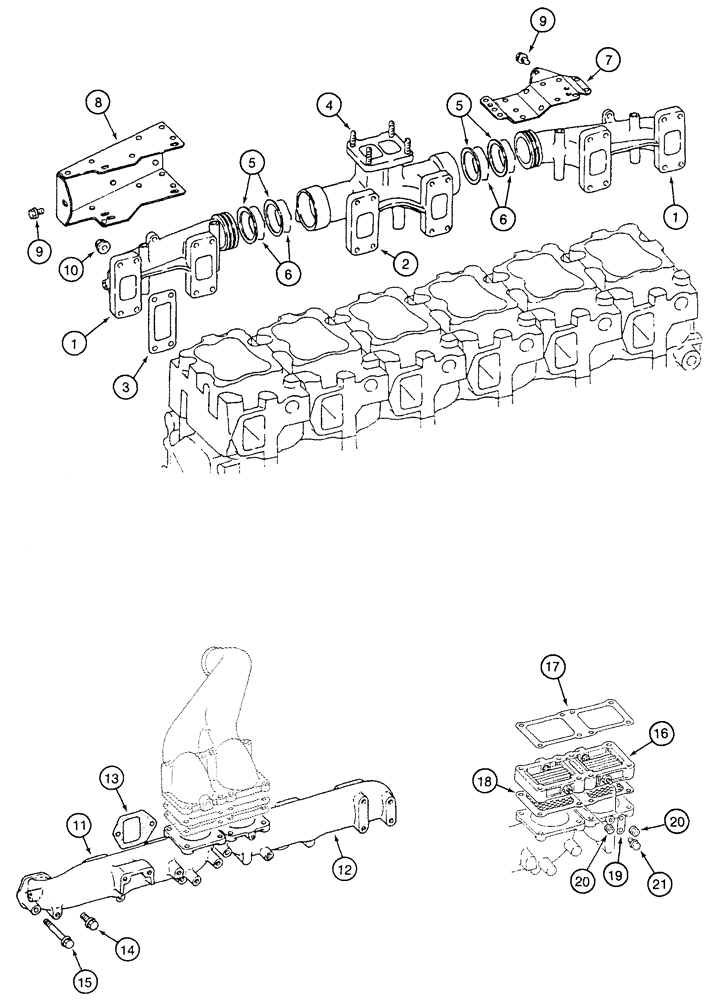

Запчасти Case 9050B (2-24) - MANIFOLDS, 6D22-T ENGINE, EXHAUST MANIFOLD (02) - ENGINE

1

134860A1

MANIFOLD

exhaust outer

2шт.

2

240307A1

MANIFOLD

exhaust center

1шт.

3

134861A1

MANIFOLD GASKET

manifold

6шт.

4

134865A1

STUD

special 10 x 30 mm center manifold

4шт.

5

134866A1

SEALING RING

RING - seal thick

4шт.

6

134867A1

SEALING RING

RING - seal thin

4шт.

7

134862A1

INSULATOR

SHIELD - heat

1шт.

8

134863A1

INSULATOR

SHIELD - heat

1шт.

9

134869A1

BOLT,M8 x 12mm, w/ Captive Wshr

- with captive washer, 8 x 12 mm

8шт.

10

134868A1

FLANGE NUT

hex flange, self-locking mm

24шт.

11

134856A1

MANIFOLD

intake, air heater

1шт.

12

134857A1

MANIFOLD

intake, air heater

1шт.

13

134855A1

MANIFOLD GASKET

manifold, air intake heater

6шт.

14

132500A1

BOLT,Hex Flg, M10 x 25mm

- hex flange, 10 x 25 mm, manifold and air intake heater

6шт.

15

134859A1

BOLT

hex flange 10 x 95 mm, manifold and air intake heater

6шт.

16

135029A1

HEATER ASSY.

air intake, manifold and heater

1шт.

17

135030A1

GASKET

heater, manifold and air intake

1шт.

18

135031A1

GASKET

heater, manifold and air intake

1шт.

19

135032A1

PLATE

ground connection heater, manifold and air intake

1шт.

20

135033A1

FLANGE NUT

hex flange 6 mm, manifold and air intake heater

2шт.

21

135034A1

BOLT

hex flange 8 x 10 mm, manifold and air intake heater

1шт.
