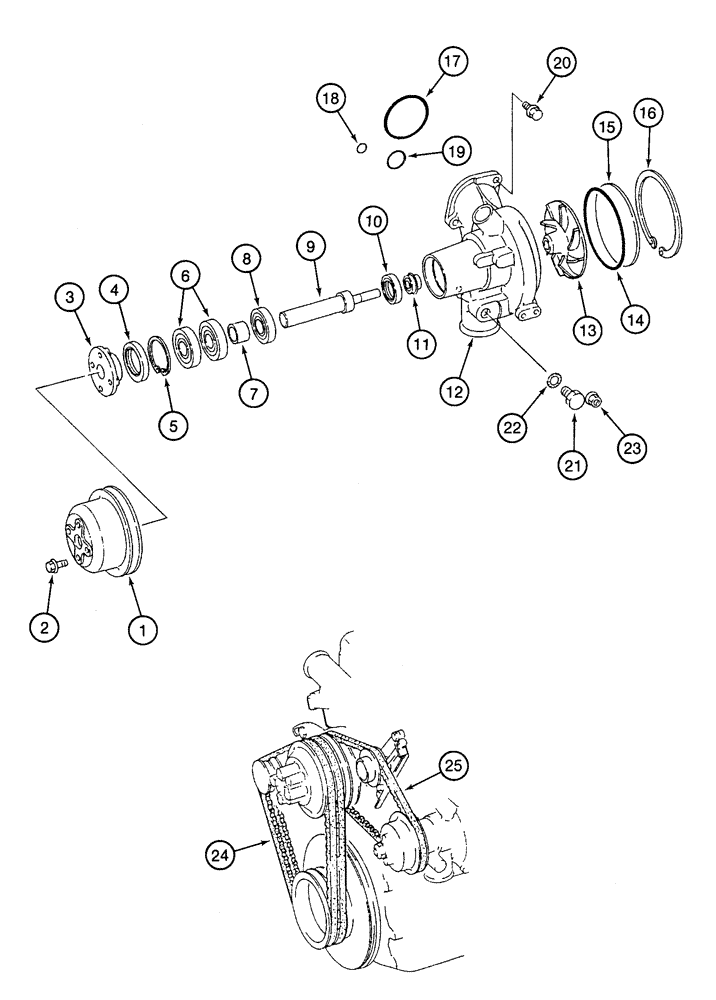

Запчасти Case 9050B (2-22) - WATER PUMP ASSEMBLY AND BELTS, 6D22-T ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
134748A1
PULLEY
water pump
1шт.
2
132378A1
BOLT,Hex Flg, M10 x 20mm
- hex flange, 10 x 20 mm
4шт.
134735A1
PUMP, WATER
ASSEMBLY - water, Includes: Ref. 3 - 16
1шт.
3
134744A1
FLANGE
flange, water pump
1шт.
4
134752A1
OIL SEAL
oil pump shaft, outer
1шт.
Part of Water Pump Kit, P/N 134741A1
1шт.
5
134770A1
RING, SNAP
retaining bearings
1шт.
6
134736A1
BALL BEARING
ball outer
2шт.
Part of Water Pump Kit, P/N 134741A1
1шт.
7
134767A1
SPACER
20 mm bearings
1шт.
8
134737A1
BALL BEARING
ball inner
1шт.
Part of Water Pump Kit, P/N 134741A1
1шт.
9
134750A1
SHAFT
pump
1шт.
Part of Water Pump Kit, P/N 134741A1
1шт.
10
134753A1
OIL SEAL
oil pump shaft, inner
1шт.
Part of Water Pump Kit, P/N 134741A1
1шт.
11
134749A1
SEAL
unitized shaft
1шт.
Part of Water Pump Kit, P/N 134741A1
1шт.
12
134742A1
BODY
HOUSING - pump
1шт.
13
134746A1
IMPELLER
pump
1шт.
Part of Water Pump Kit, P/N 134741A1
1шт.
14
134761A1
O-RING
125 mm dia. impeller
1шт.
Part of Water Pump Kit, P/N 134741A1
1шт.
14
134762A1
O-RING
135 mm dia. impeller
1шт.
Part of Water Pump Kit, P/N 134741A1
1шт.
15
134743A1
COVER
pump
1шт.
16
134769A1
RING, SNAP
retaininig cover
1шт.
16
134624A1
RING, SNAP
retaininig cover
1шт.
17
134756A1
O-RING
large
1шт.
Part of Water Pump Kit, P/N 134741A1
1шт.
18
133291A1
O-RING
small
1шт.
Part of Water Pump Kit, P/N 134741A1
1шт.
19
134757A1
O-RING
ntermediate
1шт.
Part of Water Pump Kit, P/N 134741A1
1шт.
20
132500A1
BOLT,Hex Flg, M10 x 25mm
- hex flange, 10 x 25 mm
2шт.
21
132430A1
PLUG
16 mm water pump
1шт.
22
132412A1
GASKET
special 16 mm plug
1шт.
23
134763A1
NUT
hex flange 10 mm
2шт.
24
134828A1
V-BELT
V-type 1480 mm long fan and alternator drive
2шт.
25
134755A1
BELT
V-type 1090 mm long water pump drive
1шт.
134741A1
SET OF PARTS
KIT - water pump rebuild, Includes Ref. 4, 6, 8, 9, 10, 11, 13, 14, 14, 17, 18, and 19
1шт.
Выбрано товаров: 41
