Запчасти Case 9050B (2-20) - AIR CONDITIONER COMPRESSOR MOUNTING (02) - ENGINE

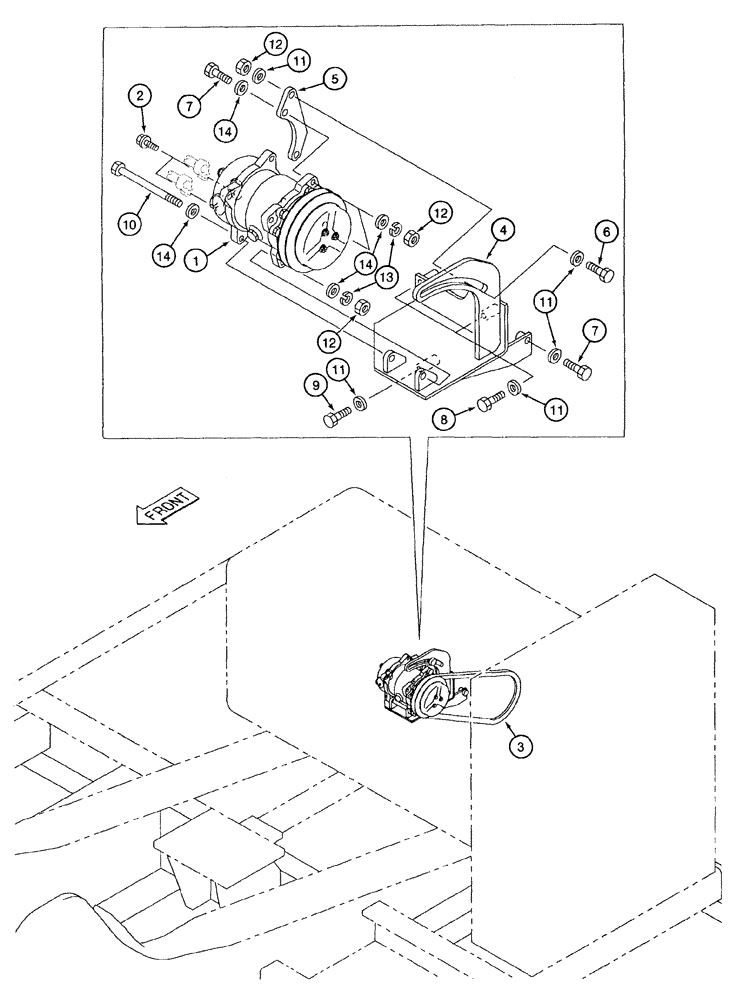

Схема запчастей Case 9050B - (2-20) - AIR CONDITIONER COMPRESSOR MOUNTING (02) - ENGINE
4
12
2
12
14
11
11
7
3
5
13
8
12
1
14
14
9
7
10
11
11
6

Артикул

Название

Примечание

Количество

1

159638A1

COMPRESSOR

air conditioner

1шт.

2

162457A1

SPECIAL BOLT,Spcl

BOLT - special

2шт.

3

162458A1

V-BELT

1шт.

4

162459A1

BRACKET

compressor mounting

1шт.

5

162460A1

SUPPORT

STAY - compressor

1шт.

6

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9

1шт.

7

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 40 mm, class 10.9

4шт.

8

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

- hex, 10-1.5 x 50 mm, class 10.9

2шт.

9

828-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

- hex 10 - 1.5 x 60 mm, class 10.9

1шт.

10

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

- hex, 10 - 1.5 x 130 mm, class 10.9

1шт.

11

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

5шт.

13

892-11010

LOCK WASHER,M10

4шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

8шт.

Выбрано товаров: 14
