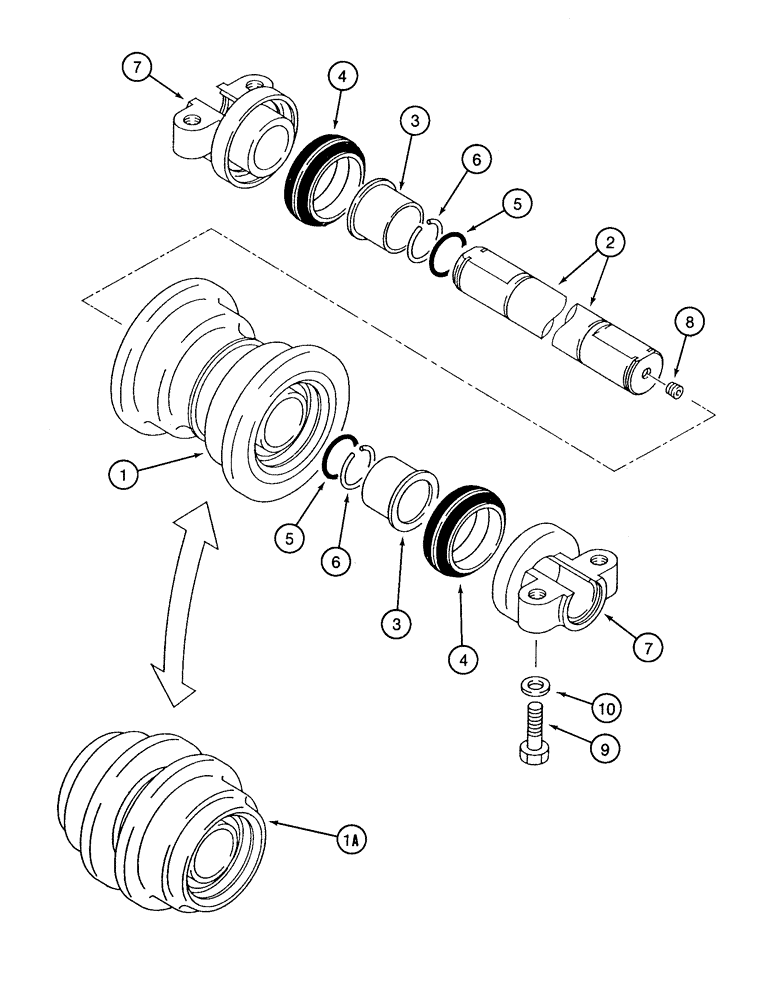

Запчасти Case 9050B (5-12) - TRACK ROLLERS (11) - TRACKS/STEERING

151865A1

ROLLER ASSY.

track with outer flanges, Includes: Ref. 1 - 8

10шт.

151871A1

ROLLER ASSY.

track with inner flanges, Includes: Ref. 1 - 8

8шт.

1

151678A1

SHIFTER ROLLER

HUB - outer flanges

1шт.

1a

151681A1

SHIFTER ROLLER

HUB - inner flanges

1шт.

2

151875A1

WHEEL SHAFT

roller

1шт.

3

151509A1

RING

BUSHING - roller

2шт.

4

151126A1

SEAL

ASSEMBLY - face includes two rings and two seals

2шт.

5

154655A1

O-RING

shaft

2шт.

6

151152A1

LOCKING RING

retaining shaft retaining (wire clip)

2шт.

7

151881A1

COLLAR

BRACKET - mounting track roller

2шт.

8

150824A1

PLUG

port

1шт.

9

827-20075

BOLT,Hex, M20 x 2.5 x 75mm, Cl 10.9, Full Thd

- hex, 20 - 2.5 x 75 mm, class 10.9

72шт.

10

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

flat, special

72шт.
