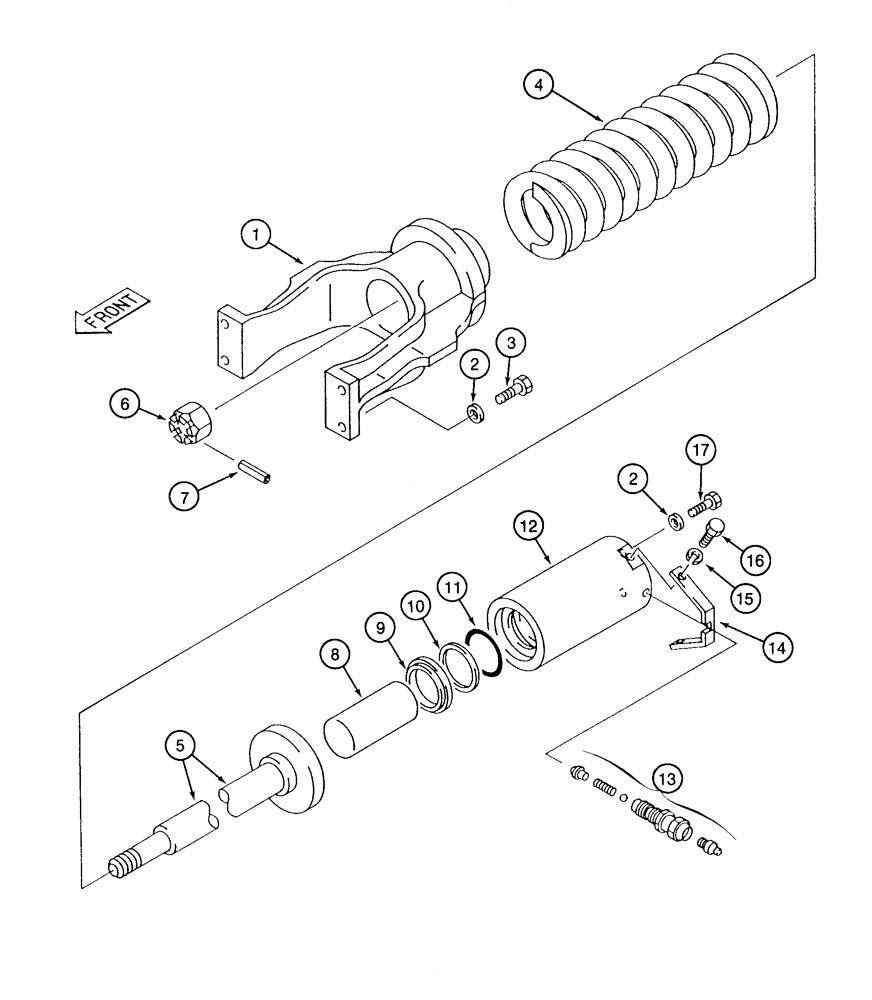

Запчасти Case 9050B (5-08) - TRACK ADJUSTER (11) - TRACKS/STEERING

1

151825A1

FORK

YOKE - track adjuster

2шт.

2

150991A1

WASHER

flat, special 16 mm

12шт.

3

626-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

4

151830A1

SPRING

track tension

2шт.

5

151835A1

ROD,THREADED

GUIDE - tension spring

2шт.

6

825-3064

SLOTTED NUT,M64 x 6, Cl 8

hex slotted 64 mm - 6

2шт.

7

538-816

LOCK PIN,M10 x 100, Slotted

roll, 10 x 100 mm

2шт.

151840A1

CYLINDER

ASSEMBLY - track adjuster, Includes: Ref. 8 - 16

2шт.

8

151846A1

JACK PISTON

ROD

1шт.

9

150689A1

SEAL

WIPER - rod

1шт.

10

154133A1

BACK-UP RING

rod wiper

1шт.

11

154704A1

O-RING

seal piston rod

1шт.

12

151850A1

CYLINDER

TUBE - cylinder track adjuster

1шт.

13

150107A1

LUBE NIPPLE

ASSEMBLY - check

1шт.

14

152171A1

BRACKET

mounting check valve

1шт.

15

892-10012

LOCK WASHER,M12

2шт.

16

626-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads 12 - 1.75 x 25 mm, class 10.9

2шт.

17

828-16065

BOLT,Hex, M16 x 2 x 65mm, Cl 10.9

4шт.
