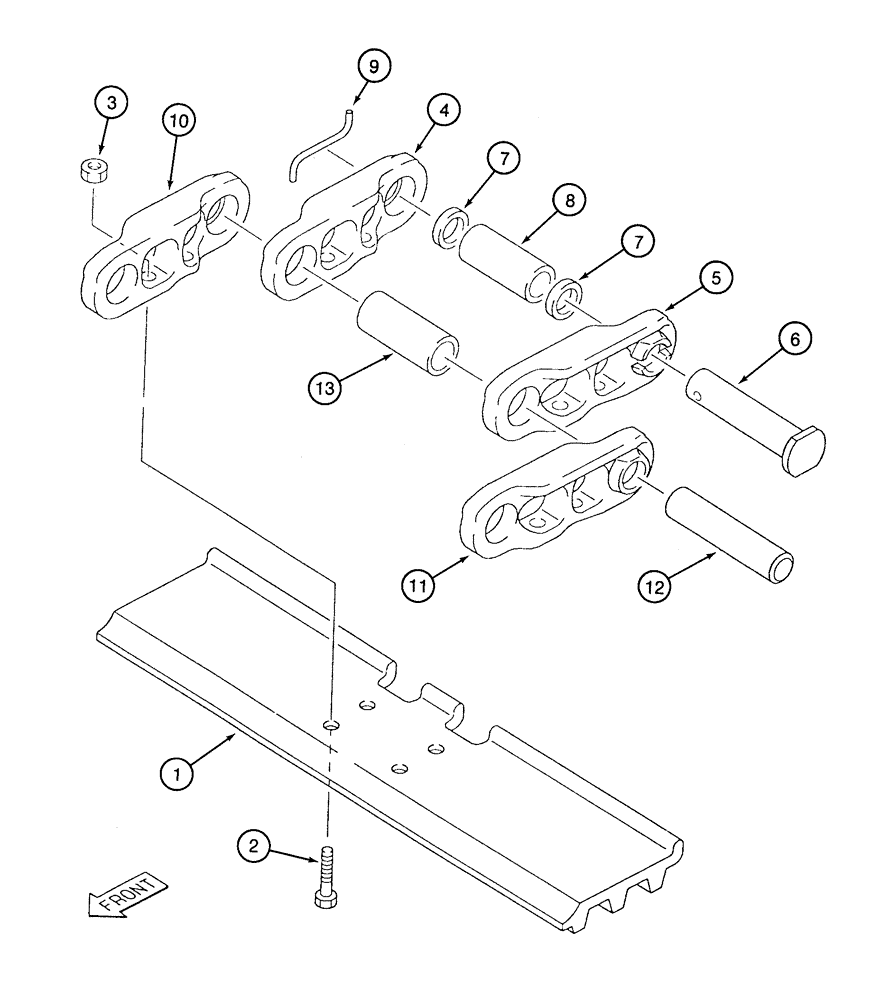

Запчасти Case 9050B (5-04) - TRACK CHAIN AND SHOES (11) - TRACKS/STEERING

151771A1

TRACK CHAIN

ASSEMBLY - includes track shoes, Includes: Ref. 1 - 13

2шт.

1

152263A1

TRACK SHOE

three bar grouser 31-1/2 inch (800 mm) wide

50шт.

2

151985A1

BOLT,Spher Hex, M20 x 65mm

special track shoe mounting

200шт.

3

151767A1

NUT

special shoe retaining

200шт.

151979A1

TRACK CHAIN

ASSEMBLY - without track shoes, Includes: Ref. 4 - 13

1шт.

4

151998A1

LINK

master track, right-hand

1шт.

5

152003A1

LINK

master track, left-hand

1шт.

6

152062A1

HEADED PIN,44mm OD x 247.5mm L

master link with head pin hole

1шт.

7

150048A1

SPACER

bushing master pin

2шт.

8

151037A1

BUSHING

- master pin

1шт.

9

151064A1

LINCH PIN

lock master link pin

1шт.

10

151989A1

TRACK LINK

LINK - track standard, right hand

49шт.

11

151993A1

LINK

track standard, left-hand

49шт.

12

150958A1

PIN

track standard

49шт.

13

150955A1

RING

BUSHING - track standard

49шт.
