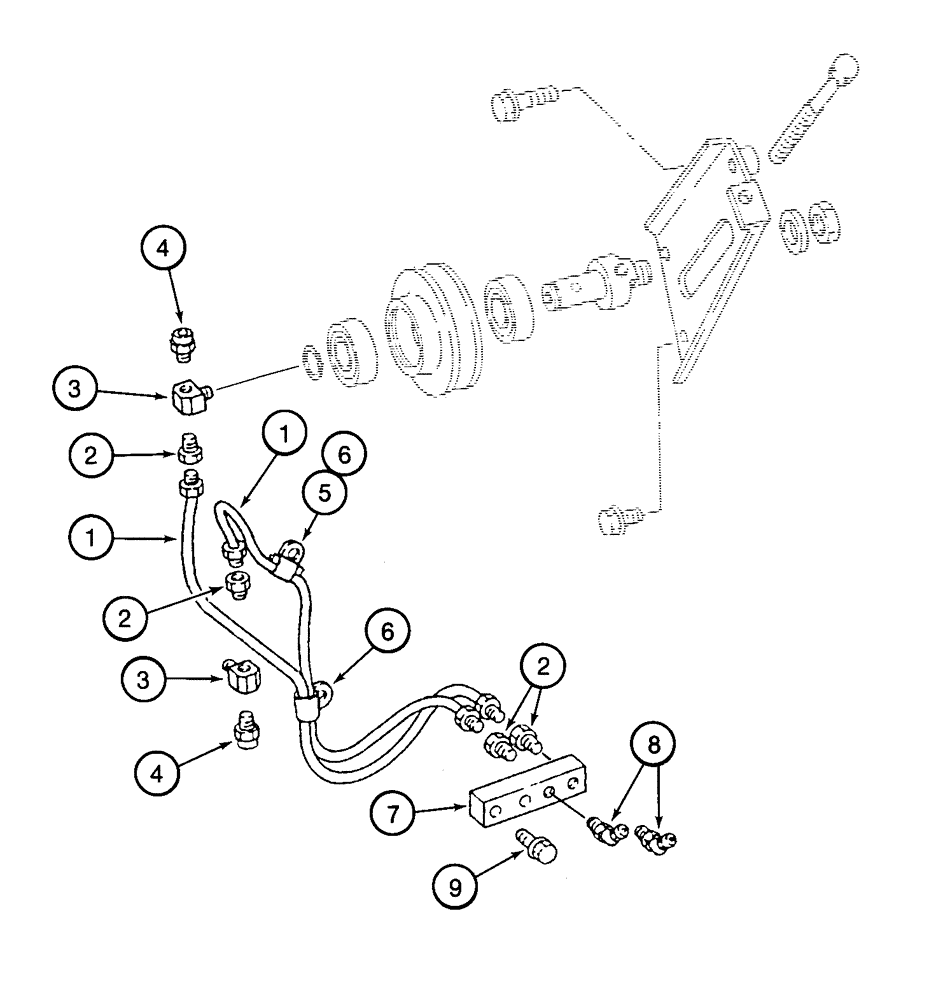

Запчасти Case 9050B (2-18) - FAN LUBE LINES, 6D22-T ENGINE (02) - ENGINE

1

134726A1

TUBE

grease 6 x 490 mm

1шт.

1

134791A1

TUBE

grease 6 x 530 mm

1шт.

2

134817A1

FITTING

CONNECTOR - T- straight

4шт.

3

134816A1

FITTING

CONNECTOR - type to fan idler shaftand fan drive housing

2шт.

4

134754A1

VALVE

grease escape

2шт.

5

134811A1

PROTECTOR

tube

1шт.

6

134795A1

CLIP

tube 12 mm diameter

2шт.

7

134818A1

FITTING

MANIFOLD - grease fitting

1шт.

8

134794A1

NIPPLE, LUBE

FITTING - grease, 45 degrees

2шт.

9

134809A1

BOLT,Hex, M8 x 30mm

- hex flange, 8 x 30 mm

2шт.
