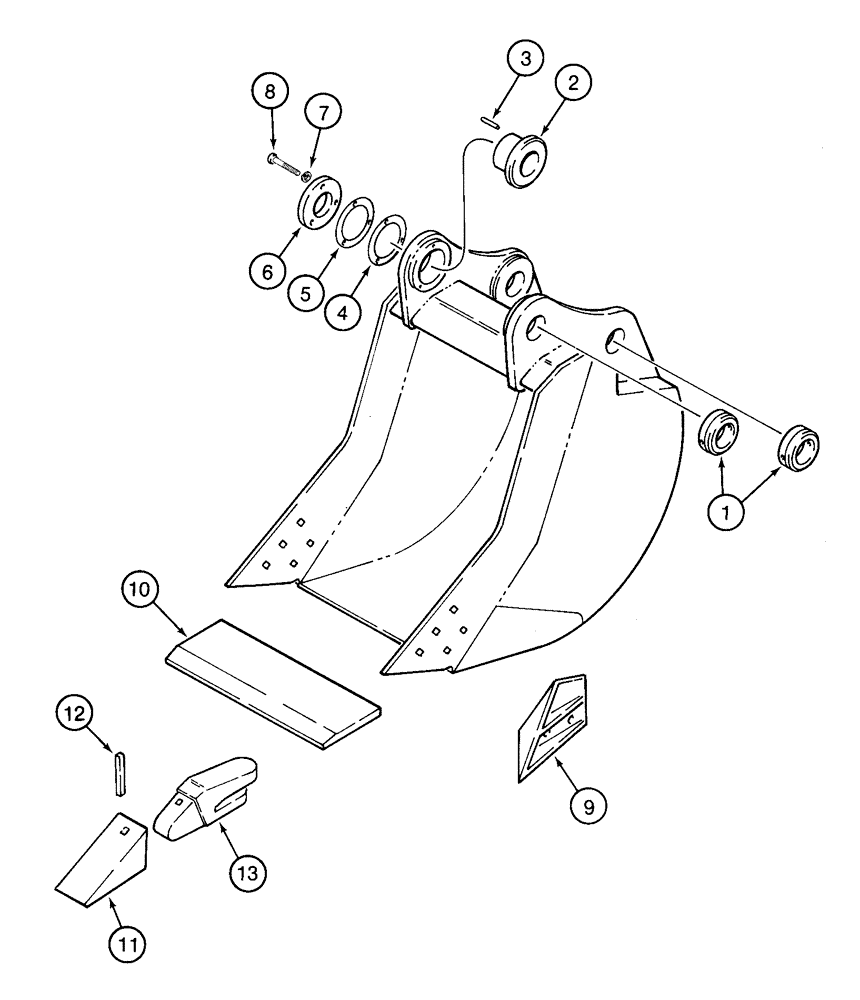

Запчасти Case 9050B (9-088) - H & H BUCKETS, SEVERE DUTY, BUCKET ASSEMBLY - SEVERE DUTY (09) - CHASSIS

REF

INSTRUCTION

BUCKET ASSEMBLY - 42 inch (1067 mm), with 4 teeth, 1.70 cu. yd., Includes: Ref. 1 - 13

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET ASSEMBLY - 48 inch (1219 mm), with 5 teeth, 1.75 cu. yd., Includes: Ref. 1 - 13

1шт.

Order bucket assebmly from Machinery Price List

1шт.

1

125674A1

LATCH

BUSHING - bucket, with locking collar, Includes: Ref. 3

2шт.

2

125672A1

BUSHING

- bucket, adjustable includes dowel pin, Includes: Ref. 3

1шт.

3

125664A1

DOWEL

PIN - dowel, special

2шт.

4

125668A1

SHIM

plate mounting

1шт.

5

125669A1

SHIM

plate mounting

1шт.

6

125670A1

RETAINER

PLATE - bushing

1шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

8

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

3шт.

9

NSS

NOT SOLD SEPARAT

EDGE cutting - see below

1шт.

10

125732A1

EDGE, CUTTING

center, 42 inch (1067 mm) bucket

1шт.

10

125733A1

EDGE, CUTTING

center, 48 inch (1219 mm) bucket

1шт.

11

122677A1

TOOTH

POINT - standard

1шт.

12

122678A1

FASTENER

PIN - flex, standard

1шт.

13

135929A1

ADAPTER

SHANK - tooth 2 inch

1шт.

112780A1

EDGE, CUTTING

KIT - side cutter blade 4 inch

1шт.

128170A1

HALF BLADE

KIT - side cutter blade 5 inch

1шт.
