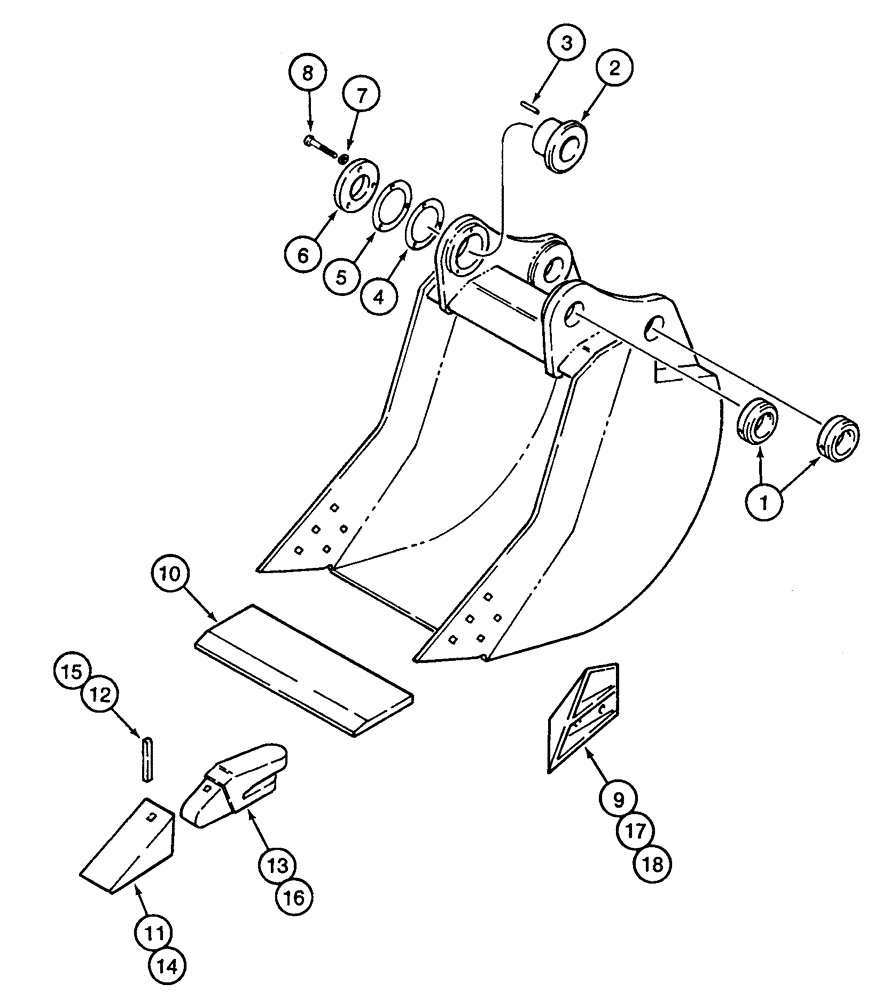

Запчасти Case 9050B (9-084) - H & H BUCKETS, GENERAL PURPOSE AND HEAVY DUTY - STANDARD AND HIGH CAPACITY (09) - CHASSIS

REF

INSTRUCTION

BUCKET - 30 inch (762 mm), with 3 teeth, 1.20 cu. yd.

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 36 inch (914 mm), with 4 teeth, 1.49 cu. yd.

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 42 inch (1067 mm), with 5 teeth, 1.80 cu. yd.

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 48 inch (1219 mm), with 5 teeth, 2.01cu. yd.

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 54 inch (1372 mm), with 6 teeth, 2.30 cu. yd.

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 60 inch (1524 mm), with 7 teeth, 2.60 cu. yd.

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 30 inch (762 mm), with 4 teeth, 1.20 cu. yd., assembly, heavy duty, standard capacity

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 36 inch (914 mm), with 4 teeth, 1.40 cu. yd., assembly, heavy duty, standard capacity

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 36 inch (914 mm), with 4 teeth, 1.40 cu. yd., assembly, heavy duty, standard capacity

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 48 inch (1219 mm), with 5 teeth, 1.75 cu. yd., assembly, heavy duty, standard capacity

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 54 inch (1372 mm), with 6 teeth, 1.87 cu. yd., assembly, heavy duty, standard capacity

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 36 inch (914 mm), with 4 teeth, 1.64 cu. yd., assembly, heavy duty, high capacity

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 42 inch (1067 mm), with 5 teeth, 1.79 cu. yd., assembly, heavy duty, high capacity

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 48 inch (1219 mm), with 5 teeth, 2.01 cu. yd., assembly, heavy duty, high capacity

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 54 inch (1372 mm), with 6 teeth, 2.05 cu. yd., assembly, heavy duty, high capacity, Includes: Ref. 1 - 18

1шт.

Order bucket assebmly from Machinery Price List

1шт.

1

125674A1

LATCH

BUSHING - bucket, with locking collar, assembly, heavy duty, high capacity, Includes: Ref. 3

2шт.

2

125672A1

BUSHING

- bucket, adjustable , assembly, heavy duty, high capacity, Includes: Ref. 3

1шт.

3

125664A1

DOWEL

PIN - dowel, special, bucket assembly, heavy duty, high capacity

2шт.

4

125669A1

SHIM

plate mounting, bucket assembly, heavy duty, high capacity

1шт.

5

125669A1

SHIM

plate mounting, bucket assembly, heavy duty, high capacity

1шт.

6

125670A1

RETAINER

PLATE - bushing, bucket assembly, heavy duty, high capacity

1шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Bucket assembly, Heavy duty, High capacity 5/8"

3шт.

8

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

Bucket assembly, heavy duty, high capacity Hex, 5/8"-11 x 2", G8

3шт.

9

112780A1

EDGE, CUTTING

KIT - side cutter blade 4 inch, bucket assembly, heavy duty, high capacity

2шт.

9

128170A1

HALF BLADE

KIT - side cutter blade 5 inch, bucket assembly, heavy duty, high capacity

2шт.

REF

INSTRUCTION

BUCKET ASSEMBLY - continued, bucket assembly, heavy duty, high capacity

1шт.

10

125720A1

EDGE, CUTTING

center 30 inch (762 mm) bucket, 1 1/2 inch, general purpose

1шт.

10

125721A1

EDGE, CUTTING

center 36 inch (914 mm) bucket, 1 1/2 inch, general purpose

1шт.

10

125722A1

EDGE, CUTTING

center 42 inch (1067 mm) bucket, 1 1/2 inch, general purpose

1шт.

10

125723A1

EDGE, CUTTING

center 48 inch (1219 mm) bucket, 1 1/2 inch, general purpose

1шт.

10

125815A1

EDGE, CUTTING

center 54 inch (1372 mm) bucket, 1 1/2 inch, general purpose

1шт.

10

125725A1

EDGE, CUTTING

center 60 inch (1524 mm) bucket, 1 1/2 inch, general purpose

1шт.

11

122674A1

TOOTH

POINT - tooth, standard, 1 1/2 inch, general purpose

1шт.

See figures 9-90 and 9-92 for point, pin, and shank options

1шт.

12

122675A1

FASTENER

PIN - flex, point, standard, 1 1/2 inch cutting edges, general purpose

1шт.

See figures 9-90 and 9-92 for point, pin, and shank options

1шт.

12

176553A1

PIN

LOCK - tooth this is a direct replacement for 122675A1, 1 1/2 inch cutting edges, general purpose

1шт.

13

122676A1

BUCKET TOOTH SHANK

SHANK - tooth 1-1/2 inch, 1 1/2 inch cutting edges, general purpose

1шт.

See figures 9-90 and 9-92 for point, pin, and shank options

1шт.

10

125726A1

EDGE, CUTTING

center 30 inch (762 mm) bucket, 2 inch, heavy duty, standard and high capacity

1шт.

10

125727A1

EDGE, CUTTING

center 36 inch (914 mm) bucket, 2 inch, heavy duty, standard and high capacity

1шт.

10

125728A1

EDGE, CUTTING

center 42 inch (1067 mm) bucket, 2 inch, heavy duty, standard and high capacity

1шт.

10

125729A1

EDGE, CUTTING

center 48 inch (1219 mm) bucket, 2 inch, heavy duty, standard and high capacity

1шт.

10

125734A1

EDGE, CUTTING

center 54 inch (1372 mm) bucket, 2 inch, heavy duty, standard and high capacity

1шт.

14

122671A1

TOOTH

POINT - tooth standard, 2 inch cutting edges, heavy duty, standard and high capacity buckets

1шт.

See figures 9-90 and 9-92 for point, pin, and shank options

1шт.

15

122672A1

FASTENER

PIN - flex, standard, 2 inch cutting edges, heavy duty, standard and high capacity buckets

1шт.

See figures 9-90 and 9-92 for point, pin, and shank options

1шт.

15

176554A1

PIN

- steel, point to shank this is a direct replacement for 122672A1, 2 inch cutting edges, heavy duty, standard and high capacity buckets

1шт.

16

122673A1

BUCKET TOOTH SHANK

tooth 2 inch cutting edges, heavy duty, standard and high capacity buckets

1шт.

See figures 9-90 and 9-92 for point, pin, and shank options

1шт.

17

112985A1

EDGE, CUTTING

KIT - side cutter blade 3 inch, 2 inch cutting edges, heavy duty, standard and high capacity buckets

1шт.

18

112732A1

KIT

- side cutter blade 4 inch, 2 inch cutting edges, heavy duty, standard and high capacity buckets

1шт.
