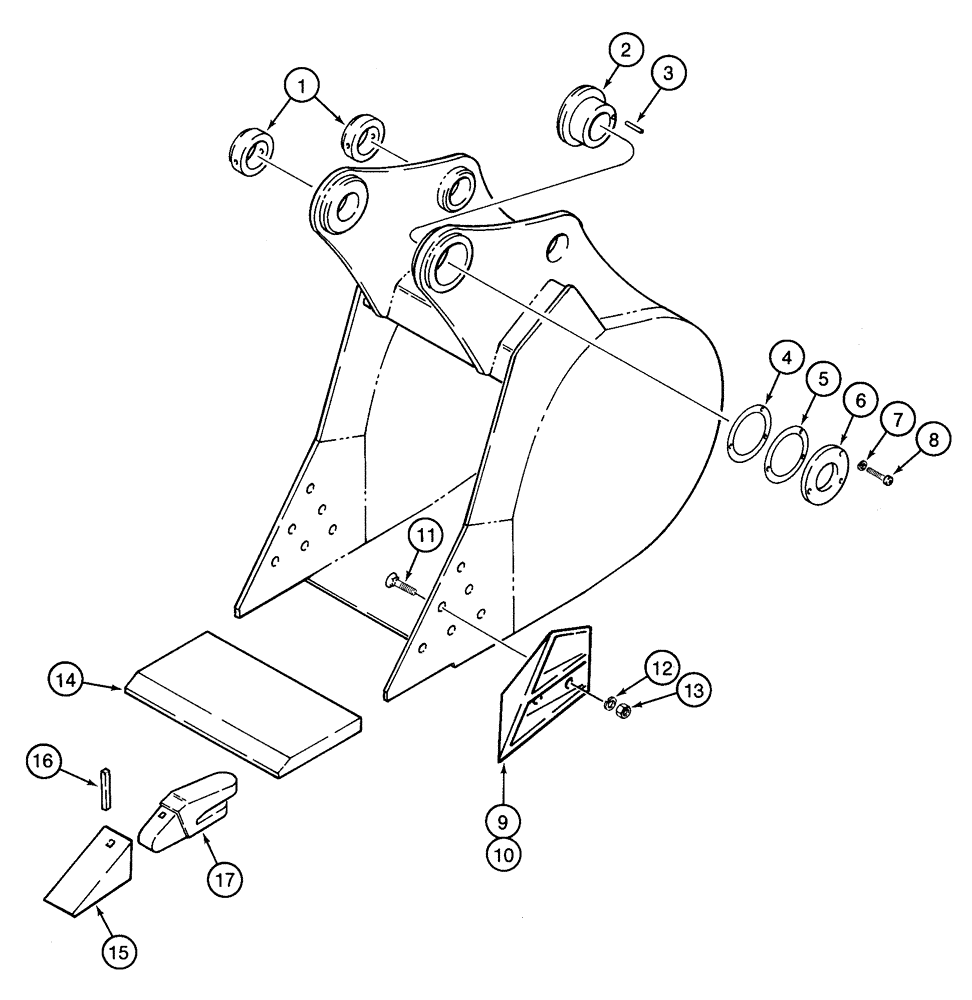

Запчасти Case 9050B (9-082) - CENTRAL FABRICATORS BUCKETS, SEVERE DUTY, BUCKET ASSEMBLY - SEVERE DUTY (09) - CHASSIS

REF

INSTRUCTION

BUCKET ASSEMBLY - 42 inch (1067 mm), with 4 teeth, 1.75 cu. yd., Includes: Ref. 1 - 17

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET ASSEMBLY - 48 inch (1219 mm), with 5 teeth, 2.03 cu. yd., Includes: Ref. 1 - 17

1шт.

Order bucket assebmly from Machinery Price List

1шт.

1

122690A1

LATCH

BUSHING - bucket, with locking collar, Includes: Ref. 3

2шт.

2

122689A1

BUSHING

- bucket, adjustable includes dowel pin, Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

PIN - dowel, hardened 1/2 x 1 inch

1шт.

4

122685A1

SHIM

plate mounting 0.039 inch thick

1шт.

5

122686A1

SHIM

plate mounting 0.020 inch thick

1шт.

6

122687A1

RETAINER

PLATE - bushing

1шт.

7

429-11062

LOCK WASHER

lock 5/8 inch

3шт.

8

361-36232

HEX SOC SCREW,5/8" - 11 x 2"

hex socket 5/8 NC x 2 inch

3шт.

112222A1

HALF BLADE

KIT - edge, side cutting 6 inch, Includes: Ref. 9 - 13

1шт.

9

122682A1

CUTTER

EDGE - cutting, bucket, right-hand side

1шт.

10

122682A1

CUTTER

EDGE - cutting, bucket, left-hand side

1шт.

11

320-21448

CARRIAGE BOLT,#3, 7/8" - 9 x 3", Gr 8

plow, #3 head 7/8 NC x 3 inch, grade 8

6шт.

12

392-21088

LOCK WASHER,7/8"

7/8"

6шт.

13

329-1014

NUT,7/8"-9, G8

6шт.

14

125029A1

EDGE, CUTTING

cutting, center 42 inch (1067 mm) bucket

1шт.

14

125030A1

EDGE, CUTTING

cutting, center 48 inch (1219 mm) bucket

1шт.

15

122677A1

TOOTH

POINT - tooth, standard

1шт.

See figures 9-90 and 9-92 for point, pin, and shank options

1шт.

16

122678A1

FASTENER

PIN - flex, standard

1шт.

See figures 9-90 and 9-92 for point, pin, and shank options

1шт.

17

122679A1

ADAPTER

SHANK - tooth 2-1/2 inch

1шт.

See figures 9-90 and 9-92 for point, pin, and shank options

1шт.
