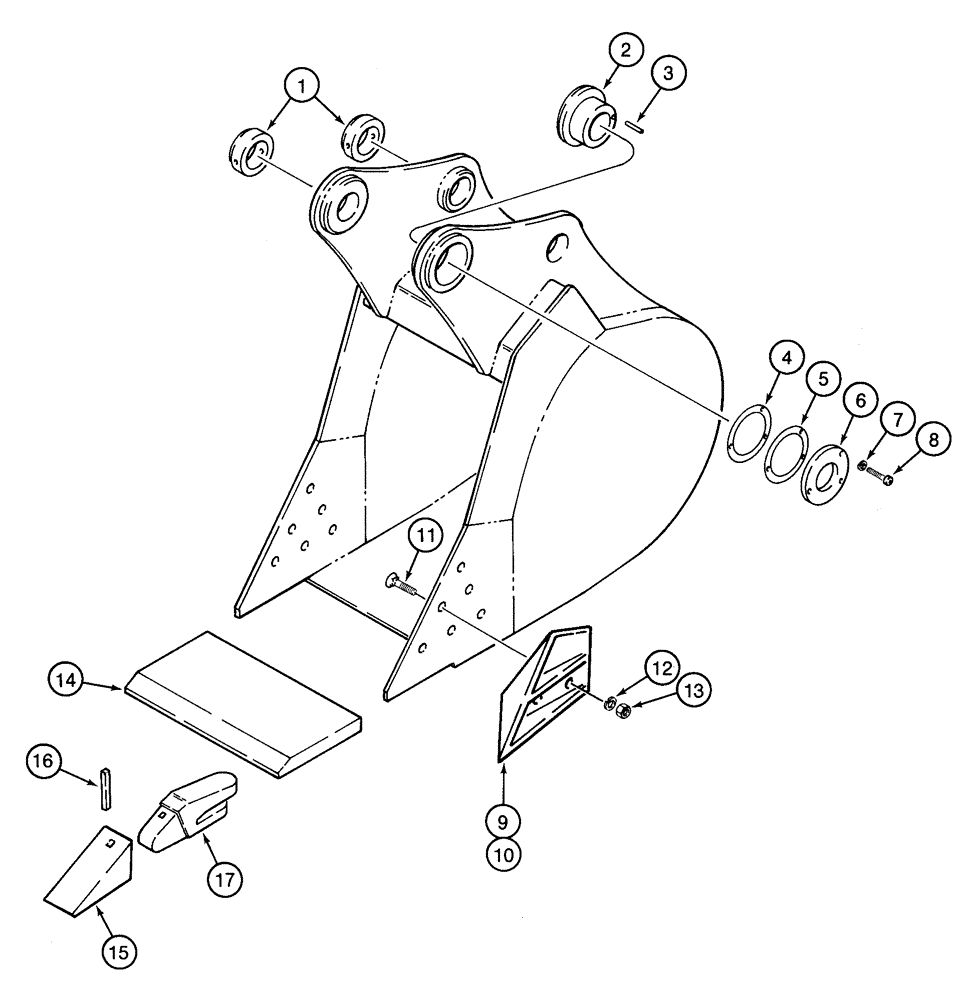

Запчасти Case 9050B (9-078) - CENTRAL FABRICATORS BUCKETS, GENERAL PURPOSE AND HEAVY DUTY-STANDARD AND HIGH CAPACITY (09) - CHASSIS

REF

INSTRUCTION

BUCKET - 30 inch (762 mm), with 4 teeth, 1.20 cu. yd.

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 36 inch (914 mm), with 4 teeth, 1.48 cu. yd.

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 42 inch (1067 mm), with 5 teeth, 1.75 cu. yd.

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 48 inch (1219 mm), with 6 teeth, 2.03 cu. yd.

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 54 inch (1372 mm), with 7 teeth, 2.30 cu. yd.

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 60 inch (1524 mm), with 7 teeth, 2.59 cu. yd.

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 30 inch (762 mm), with 4 teeth, 1.26 cu. yd., assembly, general purpose, high capacity

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 36 inch (914 mm), with 4 teeth, 1.56 cu. yd., assembly, general purpose, high capacity

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 42 inch (1067 mm), with 5 teeth, 1.85 cu. yd., assembly, general purpose, high capacity

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 48 inch (1219 mm), with 6 teeth, 2.15 cu. yd., assembly, general purpose, high capacity

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 54 inch (1372 mm), with 7 teeth, 2.45 cu. yd., assembly, general purpose, high capacity

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 60 inch (1524 mm), with 7 teeth, 2.74 cu. yd., assembly, general purpose, high capacity

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 30 inch (762 mm), with 4 teeth, 1.20 cu. yd., assembly, heavy duty, standard capacity

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 36 inch (914 mm), with 4 teeth, 1.48 cu. yd., assembly, heavy duty, standard capacity

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 42 inch (1067 mm), with 5 teeth, 1.75 cu. yd., assembly, heavy duty, standard capacity

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 48 inch (1219 mm), with 6 teeth, 2.03 cu. yd., assembly, heavy duty, standard capacity

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 54 inch (1372 mm), with 6 teeth, 2.30 cu. yd., assembly, heavy duty, standard capacity

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 30 inch (762 mm), with 4 teeth, 1.26 cu. yd., assembly, heavy duty, high capacity

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 36 inch (914 mm), with 4 teeth, 1.56 cu. yd., assembly, heavy duty, high capacity

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 42 inch (1067 mm), with 5 teeth, 1.85 cu. yd., assembly, heavy duty, high capacity

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 48 inch (1219 mm), with 6 teeth, 2.15 cu. yd., assembly, heavy duty, high capacity

1шт.

Order bucket assebmly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 54 inch (1372 mm), with 6 teeth, 2.45 cu. yd., assembly, heavy duty, high capacity, Includes: Ref. 1 - 13

1шт.

Order bucket assebmly from Machinery Price List

1шт.

1

122690A1

LATCH

BUSHING - bucket, with locking collar, assembly, heavy duty, high capacity

2шт.

2

122689A1

BUSHING

- bucket, adjustable includes dowel pin, assembly, heavy duty, high capacity

1шт.

3

NSS

NOT SOLD SEPARAT

PIN - dowel, hardened 1/2 x 1 inch, bucket assembly, heavy duty, high capacity

1шт.

4

122685A1

SHIM

plate mounting 0.039 inch thick, bucket assembly, heavy duty, high capacity

1шт.

5

122686A1

SHIM

plate mounting 0.020 inch thick, bucket assembly, heavy duty, high capacity

1шт.

6

122687A1

RETAINER

PLATE - bushing, bucket assembly, heavy duty, high capacity

1шт.

7

429-11062

LOCK WASHER

lock 5/8 inch, bucket assembly, heavy duty, high capacity

3шт.

8

361-36232

HEX SOC SCREW,5/8" - 11 x 2"

hex socket 5/8 NC x 2 inch, bucket assembly, heavy duty, high capacity

3шт.

112222A1

HALF BLADE

KIT - edge, side cutting 6 inch, bucket assembly, heavy duty, high capacity, Includes: Ref. 9 - 13

1шт.

9

122682A1

CUTTER

EDGE - cutting, bucket, right-hand side, bucket assembly, heavy duty, high capacity

1шт.

10

122683A1

CUTTER

EDGE - cutting, bucket, left-hand side, bucket assembly, heavy duty, high capacity

1шт.

11

320-21448

CARRIAGE BOLT,#3, 7/8" - 9 x 3", Gr 8

plow, #3 head 7/8 NC x 3 inch, grade 8, bucket assembly, heavy duty, high capacity

6шт.

12

392-21088

LOCK WASHER,7/8"

bucket assembly, heavy duty, high capacity 7/8"

6шт.

13

329-1014

NUT,7/8"-9, G8

Bucket assembly, heavy duty, high capacity 7/8"-9, G8

6шт.

REF

INSTRUCTION

BUCKET ASSEMBLY - continued, bucket assembly, heavy duty, high capacity

1шт.

14

125006A1

EDGE, CUTTING

cutting, center 30 inch (762 mm) bucket, 1 1/2 inch, all general purpose

1шт.

14

125007A1

EDGE, CUTTING

cutting, center 36 inch (914 mm) bucket, 1 1/2 inch, all general purpose

1шт.

14

125008A1

EDGE, CUTTING

cutting, center 42 inch (1067 mm) bucket, 1 1/2 inch, all general purpose

1шт.

14

125009A1

EDGE, CUTTING

cutting, center 48 inch (1219 mm) bucket, 1 1/2 inch, all general purpose

1шт.

14

125027A1

EDGE, CUTTING

cutting, center 54 inch (1372 mm) bucket, 1 1/2 inch, all general purpose

1шт.

14

125028A1

EDGE, CUTTING

cutting, center 60 inch (1524 mm) bucket, 1 1/2 inch, all general purpose

1шт.

14

125021A1

EDGE, CUTTING

cutting, center 30 inch (762 mm) bucket, 2 inch, all heavy duty

1шт.

14

125022A1

EDGE, CUTTING

cutting, center 36 inch (914 mm) bucket, 2 inch, all heavy duty

1шт.

14

125023A1

EDGE, CUTTING

cutting, center 42 inch (1067 mm) bucket, 2 inch, all heavy duty

1шт.

14

125024A1

EDGE, CUTTING

cutting, center 48 inch (1219 mm) bucket, 2 inch, all heavy duty

1шт.

14

125025A1

EDGE, CUTTING

cutting, center 54 inch (1372 mm) bucket, 2 inch, all heavy duty

1шт.

14

125026A1

EDGE, CUTTING

cutting, center 60 inch (1524 mm) bucket, 2 inch, all heavy duty

1шт.

15

122674A1

TOOTH

POINT - tooth, standard, 2 inch cutting edges, all heavy duty buckets

1шт.

See figures 9-90 and 9-92 for point, pin, and shank options

1шт.

16

122675A1

FASTENER

PIN - flex, point, standard, 2 inch cutting edges, all heavy duty buckets

1шт.

See figures 9-90 and 9-92 for point, pin, and shank options

1шт.

16

176553A1

PIN

LOCK - tooth this is a direct replacement for 122675A1, 2 inch cutting edges, all heavy duty buckets

1шт.

17

122676A1

BUCKET TOOTH SHANK

SHANK - tooth 1-1/2 inch, 2 inch cutting edges, all heavy duty buckets

1шт.

See figures 9-90 and 9-92 for point, pin, and shank options

1шт.
