Запчасти Case 9050B (2-16) - FAN, FAN DRIVE AND IDLER PULLEY, 6D22-T ENGINE (02) - ENGINE

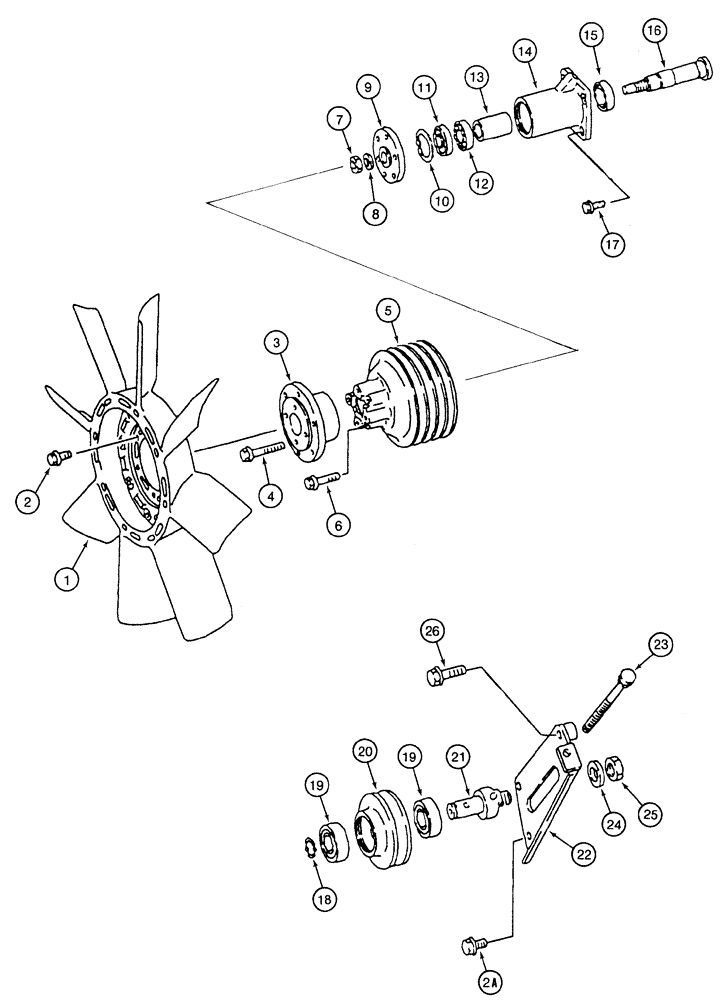

Схема запчастей Case 9050B - (2-16) - FAN, FAN DRIVE AND IDLER PULLEY, 6D22-T ENGINE (02) - ENGINE
11
1
10
2a
17
25
6
23
5
3
20
13
21
19
2
19
9
8
18
24
7
15
4
26
14
22
16
12

Артикул

Название

Примечание

Количество

1

240285A1

FAN

cooling

1шт.

2

132378A1

BOLT,Hex Flg, M10 x 20mm

- hex flange, 10 x 20 mm

8шт.

2a

133168A1

BOLT,M10 x 30mm, W/ Captive Wshr

with captive washer 10 x 30 mm

4шт.

3

240287A1

SPACER

FLANGE - fan mounting

1шт.

4

240288A1

BOLT

- hex flange, 10 x 75 mm

4шт.

4

134797A1

BOLT,Hex, M10 x 90mm

hex flange 10 x 90 mm

4шт.

5

134781A1

PULLEY

fan

1шт.

6

134807A1

BOLT,Hex, M10 x 50mm

- hex flange, 10 x 50 mm

4шт.

134793A1

PULLEY

DRIVE ASSEMBLY - fan, Includes: Ref. 7 - 16

1шт.

7

132633A1

NUT

hex jam 20 mm

1шт.

8

134789A1

WASHER

flat 22.5 x 36 mm

1шт.

9

134777A1

FLANGE

coupling fan drive

1шт.

10

134770A1

RING, SNAP

retaining 62 mm o.d.

1шт.

11

134774A1

BALL BEARING

plley drive outer

1шт.

12

134739A1

BALL BEARING

ball fan drive shaft, head end

1шт.

13

134786A1

SPACER

fan drive shaft

1шт.

14

NSS

NOT SOLD SEPARAT

HOUSING - fan drive

1шт.

15

134776A1

BALL BEARING

ball inner

1шт.

16

134783A1

SHAFT

fan drive

1шт.

17

132500A1

BOLT,Hex Flg, M10 x 25mm

- hex flange, 10 x 25 mm

2шт.

17

133250A1

BOLT,Hex, M12 x 25mm, W/ Captive Wshr

hex, with captive washer 12 x 25 mm

2шт.

134792A1

PULLEY ASSY.

fan idler, Includes: Ref. 18 - 25

1шт.

18

137441A1

COUPLING

RING - retaining

1шт.

19

134738A1

BEARING

ball fan idler shaft

2шт.

20

134778A1

PULLEY

fan idler

1шт.

21

134751A1

SHAFT

idler pulley

1шт.

22

134740A1

BRACKET

idler pulley

1шт.

23

134796A1

BOLT

- hex, 10 x 150 mm

1шт.

24

134787A1

WASHER

flat 17 mm

1шт.

25

134814A1

JAM NUT

hex jam 16 mm

1шт.

26

132500A1

BOLT,Hex Flg, M10 x 25mm

- hex flange, 10 x 25 mm

1шт.

26

133294A1

BOLT,Hex Flg, M10 x 30mm

hex flange 10 x 30 mm

1шт.

Выбрано товаров: 32
