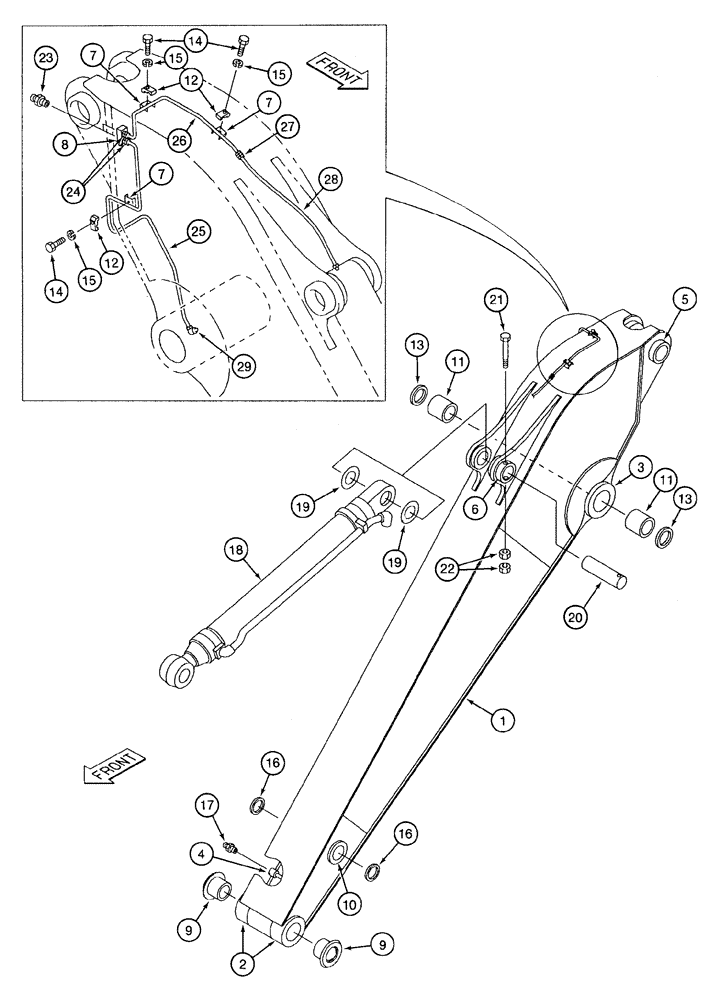

Запчасти Case 9050B (9-074) - ARM AND CYLINDER, 10 FT. 7 INCH (3.23 M) ARM (09) - CHASSIS

1

162604A1

DIPPER

excavator, standard 10 ft 7 inch (3.23 m) long, Includes: Ref. 2 - 11

1шт.

2

151428A1

BOSS

arm bucket end

2шт.

3

151169A1

BOSS

arm, cast boom end

2шт.

4

151365A1

FITTING

ADAPTER - special

1шт.

5

163086A1

COLLAR

cylinder mount

1шт.

6

163084A1

COLLAR

pin securing

1шт.

7

150730A1

BAR

base

3шт.

8

151612A1

MANIFOLD

BLOCK - manifold, lubrication

1шт.

9

153778A1

BUSHING,90mm ID x 185mm OD x 100mm L

- Arm bucket end

2шт.

10

151206A1

BUSHING

- Arm bucket end

2шт.

11

151208A1

BUSHING,110mm ID x 140mm OD x 110mm L

- Arm bucket end

2шт.

12

151504A1

CLAMP

lubrication line, single type

3шт.

13

162103A1

SEAL,110mm ID x 125mm OD x 5mm Thk

dust

2шт.

15

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

16

159647A1

SEAL,80mm ID x 95mm OD x 5mm Thk

dust

2шт.

17

153630A1

LUBE NIPPLE

FITTING - grease, special

1шт.

18

162090A1

CYLINDER ASSY.

5-1/2 (140) ID x 50-1/8 inch (1275 mm) stroke bucket, see figures 8-160

1шт.

19

151241A1

ADJUSTING PLATE

SHIM - bucket cylinder

2шт.

20

151190A1

PIN

mounting

1шт.

21

514-1222

BOLT,Hex, M20 x 1.5 x 170mm, Cl 10.9

hex 20 - 1.5 x 170 mm, class 10.9

1шт.

22

829-11420

NUT,M20 x 1.5, Cl 10

hex 20 mm - 1.5, class 10

2шт.

23

153631A1

LUBE NIPPLE,1/8"-27 NPT

FITTING - grease, special

2шт.

24

152599A1

MULTIPOLE CONNECTOR

straight, special

2шт.

25

151519A1

TUBE ASSY.,6 mm ID, 8 mm OD

lubrication

1шт.

26

151718A1

TUBE ASSY.,6 mm ID, 8 mm OD

lubrication

1шт.

27

152032A1

UNION

CONNECTOR - straight

1шт.

28

152362A1

HOSE,530.00 mm

- Nylon, lubrication 530.00 mm

1шт.

29

152627A1

ELBOW

90 degree, special

1шт.

14

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

Full Thd Hex, M8 x 30, 10.9

3шт.
