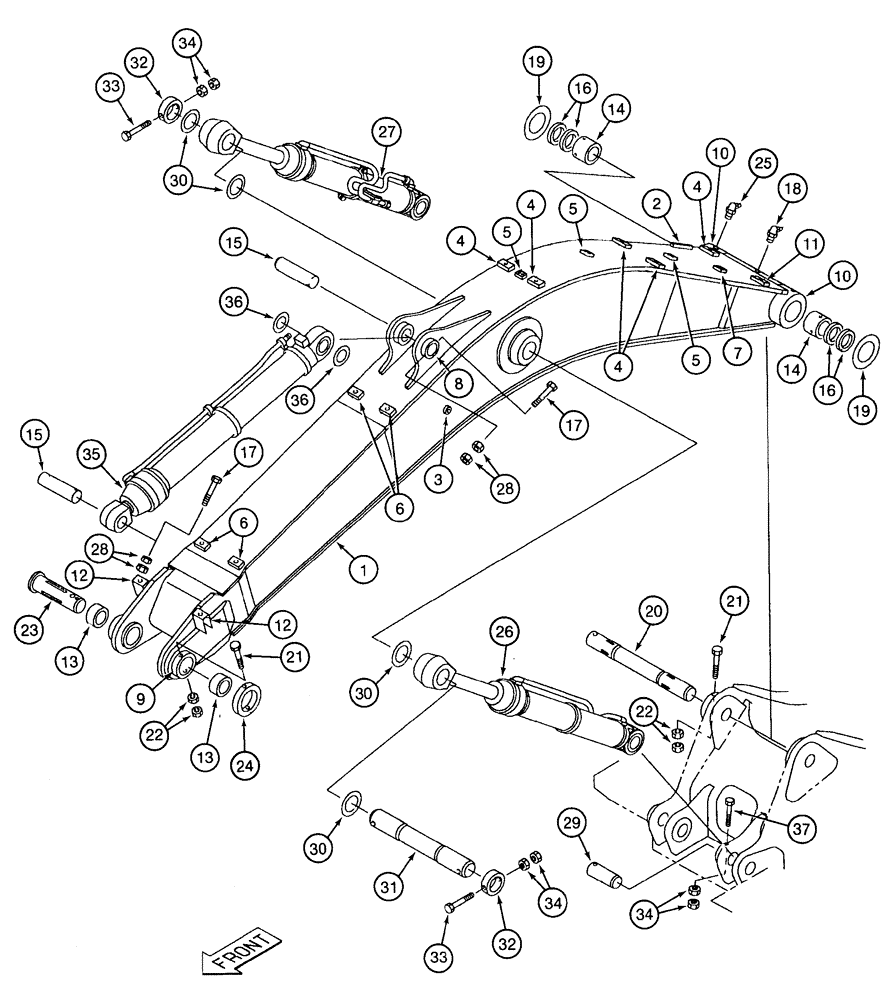

Запчасти Case 9050B (9-072) - BOOM, MOUNTING PINS AND CYLINDERS (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
162605A1
BOOM
ASSY - excavator 21 ft 2 in (6.45 m) long, Includes: Ref. 2 - 37
1шт.
2
150846A1
MANIFOLD
boom
1шт.
3
150255A1
BAR
base
1шт.
4
151992A1
BAR
base
5шт.
5
151253A1
BAR
base
3шт.
6
152014A1
BAR
base
4шт.
7
150730A1
BAR
base
1шт.
8
163086A1
COLLAR
cylinder mount
1шт.
9
163092A1
COLLAR
arm mount
1шт.
10
163424A1
BOSS
boom mount
2шт.
11
151394A1
BAR
base
1шт.
12
152008A1
BAR
base
2шт.
13
151214A1
BUSHING
Boom, Arm mount end
2шт.
14
163425A1
BUSHING
boom boom mount end
2шт.
15
151194A1
PIN
arm cylinder
2шт.
17
514-1218
BOLT,Hex, M20 x 1.5 x 180mm, Cl 10.9
hex, 24 - 1.5 x 180 mm, class 10.9
2шт.
19
151236A1
SHIM
- base of boom
1шт.
20
151185A1
PIN
boom attaching
1шт.
21
514-1500
BOLT,Hex, M30 x 2 x 240mm, Cl 10.9
hex, 30 - 2.0 x 240 mm, class 10.9
2шт.
22
829-13430
NUT,M30 x 1.5, Cl 10
hex, 30 mm - 2.0, class 10
4шт.
23
151181A1
PIN
attaching
1шт.
24
151222A1
COLLAR CLAMP
pin retaining
1шт.
25
153631A1
LUBE NIPPLE,1/8"-27 NPT
FITTING - grease, special
1шт.
26
162984A1
CYLINDER ASSY.
5-1/2 (140) ID x 58-1/4 (1480 mm) stroke boom, see figure 8-152
1шт.
27
162983A1
CYLINDER ASSY.
5-1/2 (140) ID x 58-1/4 (1480 mm) stroke boom, see figure 8-152
1шт.
28
829-11420
NUT,M20 x 1.5, Cl 10
hex, 20 mm - 1.5, class 10
4шт.
29
151189A1
PIN
mounting
2шт.
30
162102A1
SHIM
plate, 0.05 inch (1.27 mm) thick
4шт.
31
151187A1
PIN
mounting
1шт.
32
150762A1
RING, LOCKING
COLLAR - pin retaining
2шт.
33
514-1219
BOLT,Hex, M20 x 1.5 x 190mm, Cl 10.9
hex, 20 - 1.5 x 190 mm, class 10.9
2шт.
34
829-11420
NUT,M20 x 1.5, Cl 10
hex, 20 mm - 1.5, class 10
8шт.
35
162091A1
CYLINDER
6-5/16 (160) ID x 68-1/4 (1733 mm) stroke arm, see figure 8-156
1шт.
36
151247A1
ADJUSTING PLATE
SHIM - base of arm cylinder
2шт.
37
514-1222
BOLT,Hex, M20 x 1.5 x 170mm, Cl 10.9
hex, 20 - 1.5 x 170 mm, class 10.9
2шт.
