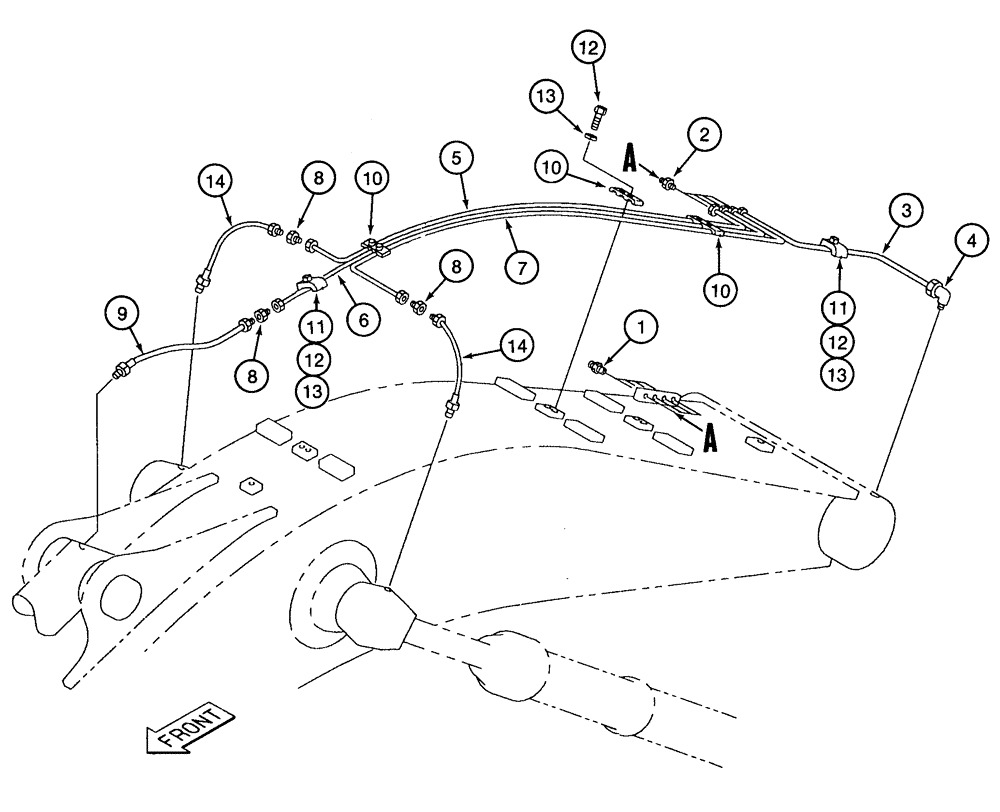

Запчасти Case 9050B (9-070) - BOOM LUBRICATION LINES (09) - CHASSIS

1

153630A1

LUBE NIPPLE

FITTING - grease, special

4шт.

2

152599A1

MULTIPOLE CONNECTOR

straight, special

4шт.

3

162596A1

TUBE ASSY.,6 mm ID, 8 mm OD

grease lubrication

1шт.

4

152627A1

ELBOW

90 degree, special

1шт.

5

162601A1

TUBE

grease lubrication

1шт.

6

162602A1

TUBE ASSY.,6 mm ID, 8 mm OD

grease lubrication

1шт.

7

162603A1

TUBE

grease lubrication

1шт.

8

152032A1

UNION

CONNECTOR - straight

3шт.

9

151508A1

HOSE,700.00 mm

- Nylon, Lubrication 700.00 mm

1шт.

10

151497A1

CLAMP

lubrication line, triple type

3шт.

11

151504A1

CLAMP

lubrication line, single type

2шт.

13

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

14

152776A1

HOSE,560.00 mm

- Nylon, Lubrication 560.00 mm

2шт.

12

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

Full Thd Hex, M8 x 30, 10.9

8шт.
