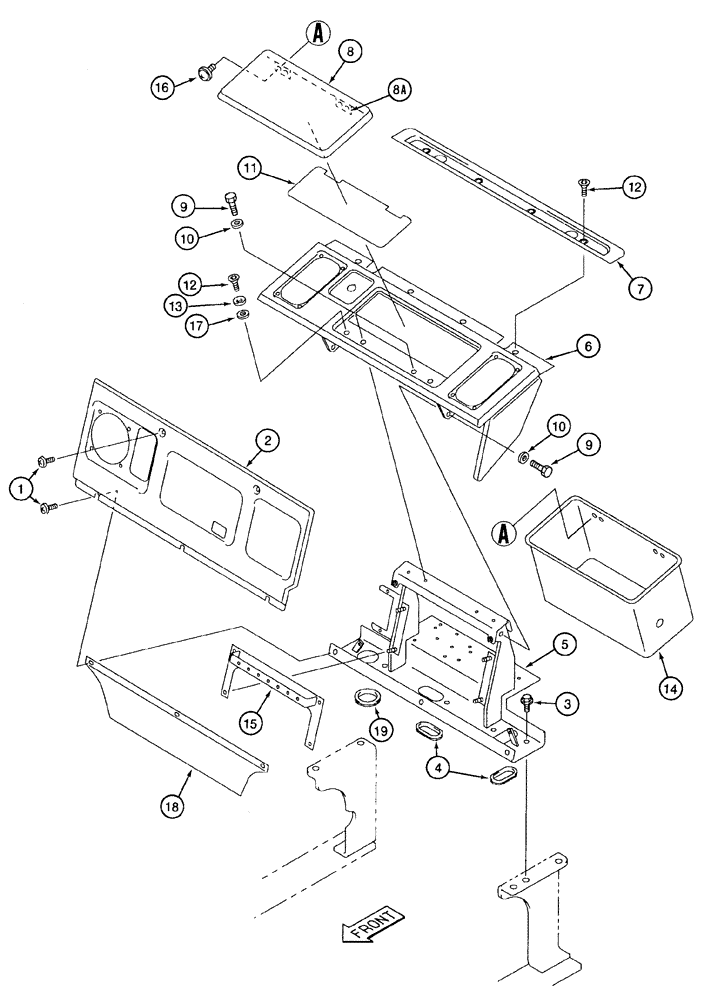

Запчасти Case 9050B (9-066) - CAB REAR CONSOLE AND PANELS, MACHINES WITH AIR CONDITIONING (09) - CHASSIS

1

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

5шт.

2

159527A1

COVER

PANEL - upper, cab rear console

1шт.

3

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

4шт.

4

159289A1

GROMMET

rubber

2шт.

5

161694A1

STAND

CONSOLE - rear, cab

1шт.

6

159528A1

COVER

PANEL - top, cab rear console

1шт.

7

159293A1

COVER

PANEL - filler, top

1шт.

8

159529A1

COVER

ASSY - special, Includes: Ref. 8A

1шт.

8a

159530A1

HINGE

cover, special

2шт.

9

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

4шт.

10

153081A1

WASHER

flat, special

4шт.

11

159531A1

SEAL

cushion

1шт.

12

151290A1

HEX SOC SCREW,Flat Csk Hd, M8 x 20mm

6шт.

13

113631A1

LOCK WASHER

toothed conical, special 8 mm

2шт.

14

159532A1

BRACKET

special cab rear console

1шт.

15

159290A1

SUPPORT

BRACKET - mounting

1шт.

16

159542A1

SELF-TAP SCREW,Flg, M3 x 1.06 x 8mm

self-tapping, special hinge

4шт.

17

159292A1

WASHER

special

2шт.

18

162268A1

RUBBER PAD

PLATE - rubber, special

1шт.

19

161688A1

GROMMET

rubber

1шт.
