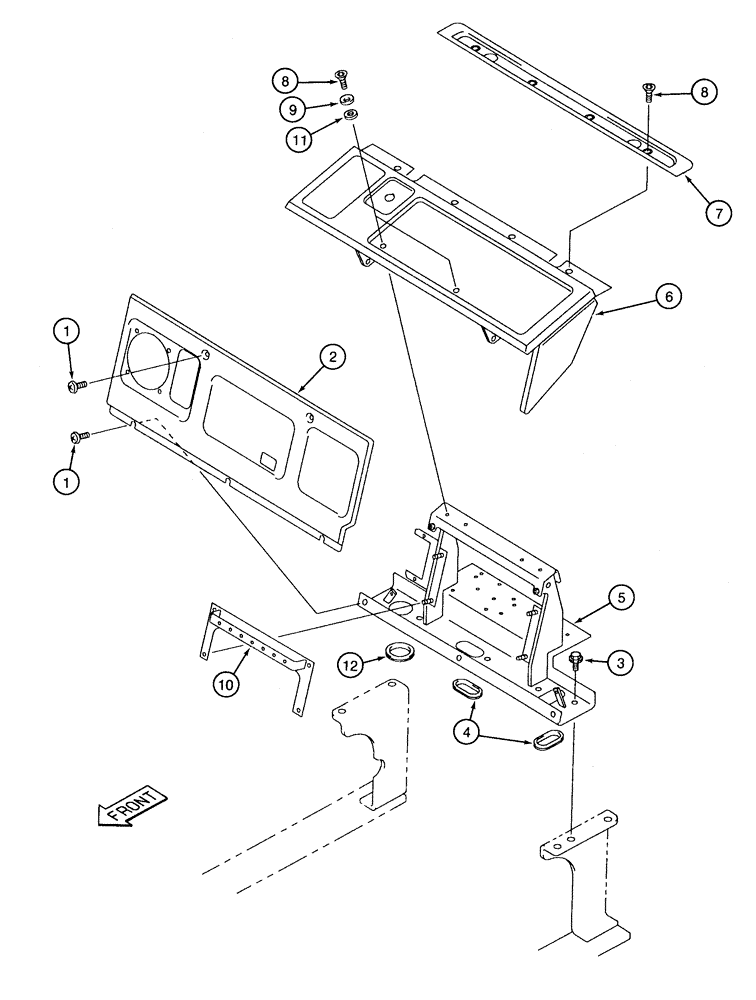

Запчасти Case 9050B (9-064) - CAB REAR CONSOLE AND PANELS, MACHINES WITHOUT AIR CONDITIONING (09) - CHASSIS

1

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

5шт.

2

159527A1

COVER

PANEL - upper, cab rear console

1шт.

3

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

4шт.

4

159289A1

GROMMET

rubber

2шт.

5

161694A1

STAND

CONSOLE - rear, cab

1шт.

6

159291A1

COVER

PANEL - top, cab rear console

1шт.

7

159293A1

COVER

PANEL - filler, top

1шт.

8

151290A1

HEX SOC SCREW,Flat Csk Hd, M8 x 20mm

2шт.

9

113631A1

LOCK WASHER

toothed conical, special 8 mm

2шт.

10

159290A1

SUPPORT

BRACKET - mounting

1шт.

11

159292A1

WASHER

special

2шт.

12

161688A1

GROMMET

rubber

1шт.
