Артикул
Название
Примечание
Количество

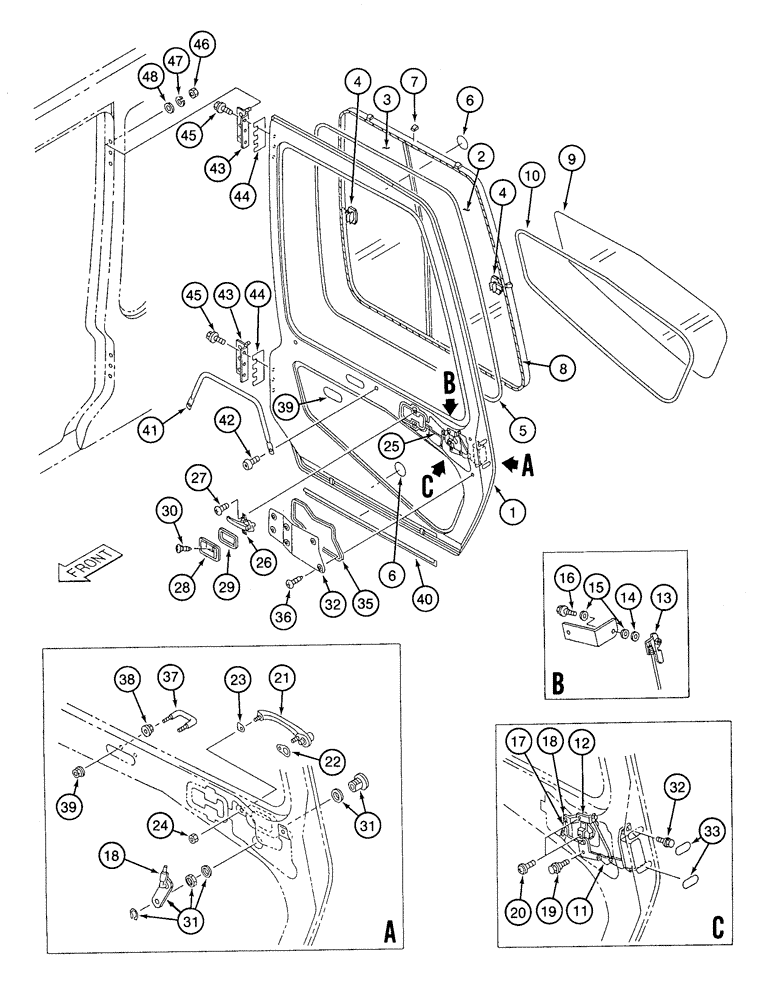

161802A1
CAB
ASSY - opearors includes all parts on figures 9-50 thru 9-58 and 9-62, Includes: Ref. 1 - 48
1шт.
166158A1
DOOR ASSY.
cab, Includes: Ref. 1 - 48, Replaces 162170A1
1шт.
1
167464A1
CABIN DOOR
cab, Replaces 159587A1
1шт.
162173A1
WINDOW ASSY
upper, Includes: Ref. 2 - 4
1шт.
In the text between Ref. 1 and Ref. 2 is 162173A1 upper window assy. The strip that runs vertically down the center of the window (strip that separates the two sliding windows as they pass each other) is not serviced separately.
1шт.
2
162180A1
WINDOW
sliding, plastic front
1шт.
3
162181A1
WINDOW
sliding, plastic rear
1шт.
4
162829A1
LOCK
window
2шт.
5
159549A1
SEAL
TRIM - window
1шт.
6
159573A1
DOOR SEAL
BUMPER - door stop
2шт.
7
159543A1
SPACER
sash
8шт.
8
159590A1
DOOR SEAL
rubber, window frame left-hand
1шт.
9
162182A1
WINDOW
plastic, door, lower
1шт.
10
159551A1
WEATHERSTRIP
STRIP - weather
1шт.
11
159554A1
LATCH ASSY.
LOCK - door
1шт.
12
159555A1
SUPPORT
BRACKET - angled strap link mounting
1шт.
13
159560A1
LEVER
LINK - connecting, outer handle
1шт.
14
159582A1
WASHER
special
1шт.
15
159583A1
WASHER
special
2шт.
16
159584A1
FLANGE BOLT,Shldr
flange, special
1шт.
17
159559A1
LATCH
LOCK - manual
1шт.
18
159556A1
PITMAN
PIVOT - rod, door handle
2шт.
19
159574A1
FLANGE BOLT,Shldr
flange, special
1шт.
20
159545A1
SELF-TAP SCREW
self-tapping, special
2шт.
21
159566A1
HANDLE
door, outer
1шт.
22
159567A1
SPACER
SEAT - handle mounting
1шт.
23
159568A1
SPACER
SEAT - handle mounting
1шт.
24
159585A1
NUT
flange, special
2шт.
25
159557A1
THREADED ROD
LINK - connecting
1шт.
26
159563A1
HANDLE
door, inner
1шт.
27
159589A1
SCREW,Pan Hd
pan head, special
2шт.
28
159561A1
BEZEL
COVER - inside handle, door
1шт.
29
159562A1
LINING
GASKET - cover
1шт.
30
159576A1
SELF-TAP SCREW,Oval Hd
self-tapping, special
1шт.
31
159558A1
LOCK ASSY
outer keyed
1шт.
32
161377A1
BOLT
special, door lever
4шт.
33
159572A1
SEAL
GASKET - latch mounting
2шт.
34
159552A1
COVER
PANEL - access, door latch
1шт.
35
159553A1
DOOR SEAL
GASKET - panel
1шт.
36
159545A1
SELF-TAP SCREW
Replaces 159577A1
6шт.
37
159570A1
U-BOLT
type
1шт.
38
159579A1
NUT
special
4шт.
39
159571A1
GROMMET
rubber
1шт.
40
159588A1
DOOR SEAL
rubber
1шт.
41
159569A1
HANDLE
grab
1шт.
42
159586A1
BOLT,Hex Skt, M10 x 1.5 x 25mm
special
2шт.
43
159564A1
HINGE
door
2шт.
44
159565A1
ADJUSTING PLATE
SHIM - hinge mounting
2шт.
45
158544A1
BOLT
special
6шт.
46
159578A1
NUT
special
6шт.
47
159580A1
LOCK WASHER
lock
6шт.
48
159581A1
WASHER
flat
6шт.
Выбрано товаров: 52
