(9-058) - CAB LOWER FRONT WINDOW AND ROOF PANEL ASSEMBLY

Запчасти Case 9050B (9-058) - CAB LOWER FRONT WINDOW AND ROOF PANEL ASSEMBLY (09) - CHASSIS

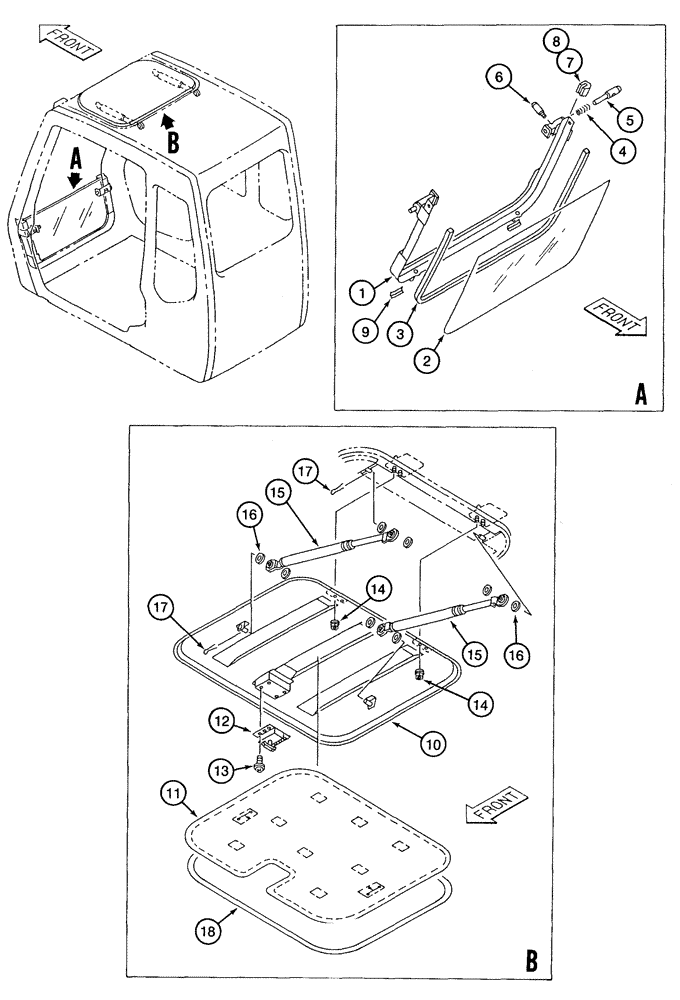

Схема запчастей Case 9050B - (9-058) - CAB LOWER FRONT WINDOW AND ROOF PANEL ASSEMBLY (09) - CHASSIS
2
6
9
17
1
17
14
13
3
14
16
7
16
5
12
15
15
18
11
4
10
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

161802A1

CAB

ASSEMBLY - operators includes all parts on figures 9-50 thru 9-58 and 9-62, Includes: Ref. 1 - 18

1шт.

162167A1

WINDOW ASSY

lower front, Includes: Ref. 1 - 9

1шт.

1

161443A1

WINDOW FRAME

front window, lower

1шт.

2

162174A1

GLASS

WINDOW - plastic

1шт.

3

161444A1

SEAL, GLASS

STRIP - weather

1шт.

4

161436A1

SPRING

compression-type

2шт.

5

161437A1

STEM

PIN - special

2шт.

6

161438A1

LEVER

HANDLE - lock pin

2шт.

7

161445A1

SEAL

special

1шт.

8

161446A1

SEAL

special

1шт.

9

161447A1

TAPE

weather stripping

2шт.

162171A1

ROOF

PANEL ASSEMBLY - roof, hinged, Includes: Ref. 10 - 17

1шт.

10

161449A1

ROOF

PANEL - roof, hinged clear plastic

1шт.

11

161450A1

INSULATOR

PAD - roof panel

1шт.

12

161451A1

LATCH ASSY.

window

1шт.

13

161452A1

SCREW

special window latch

4шт.

14

161453A1

FLANGE NUT

hex, flange, special

4шт.

15

161454A1

SHOCK ABSORBER

gas, roof panel

2шт.

16

161389A1

WASHER

flat, special

8шт.

17

161455A1

PIN, SPLIT (COTTER)

CLIP - hair pin

4шт.

18

161335A1

SEAL

hinged roof panel

1шт.
