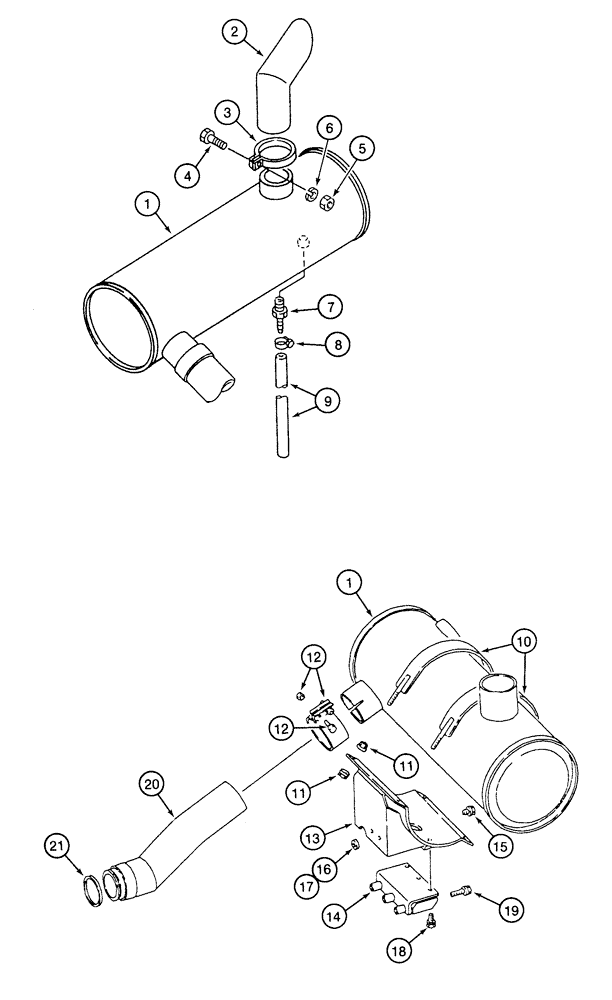

Запчасти Case 9050B (2-14) - MUFFLER AND EXHAUST SYSTEM, 6D22-T ENGINE (02) - ENGINE

1

163399A1

MUFFLER

engine

1шт.

2

162510A1

PIPE, EXHAUST SYSTEM

exhaust tail

1шт.

3

163405A1

CLAMP

special tail pipe

1шт.

4

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

5

829-1412

NUT,M12, Cl 10.9

1шт.

6

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

7

151252A1

NIPPLE, LUBE

ADAPTER - straight muffler drain

1шт.

8

153041A1

COLLAR

wire-type

1шт.

9

150662A1

TUBE,10 mm ID, 950 mm Length

drain, muffler 31-13/32 inch (950 mm) long

1шт.

10

163403A1

U-BOLT

muffler clamping

2шт.

11

134763A1

NUT

hex flange 10 mm

8шт.

12

163402A1

CLAMP

special exhaust pipe, includes bolt and nut

1шт.

13

135005A1

BRACKET

muffler support

1шт.

14

135006A1

SUPPORT

muffler bracket

1шт.

15

240323A1

BOLT

hex flange 12 x 25 mm

2шт.

16

132620A1

WASHER

lock 10 mm

2шт.

17

240319A1

WASHER

flat

2шт.

18

132376A1

BOLT,Hex, M10 x 20mm, W/ Wshr

hex, with captive washer 10 x 20 mm

3шт.

19

135003A1

BOLT,Hex Flg, M10 x 95mm

hex flange 12 x 95 mm

3шт.

20

163398A1

EXHAUST SYSTEM PIPE

exhaust, Serial Range: turbo-muffler

1шт.

21

163401A1

SEALING RING

ring-type at turbo

1шт.
