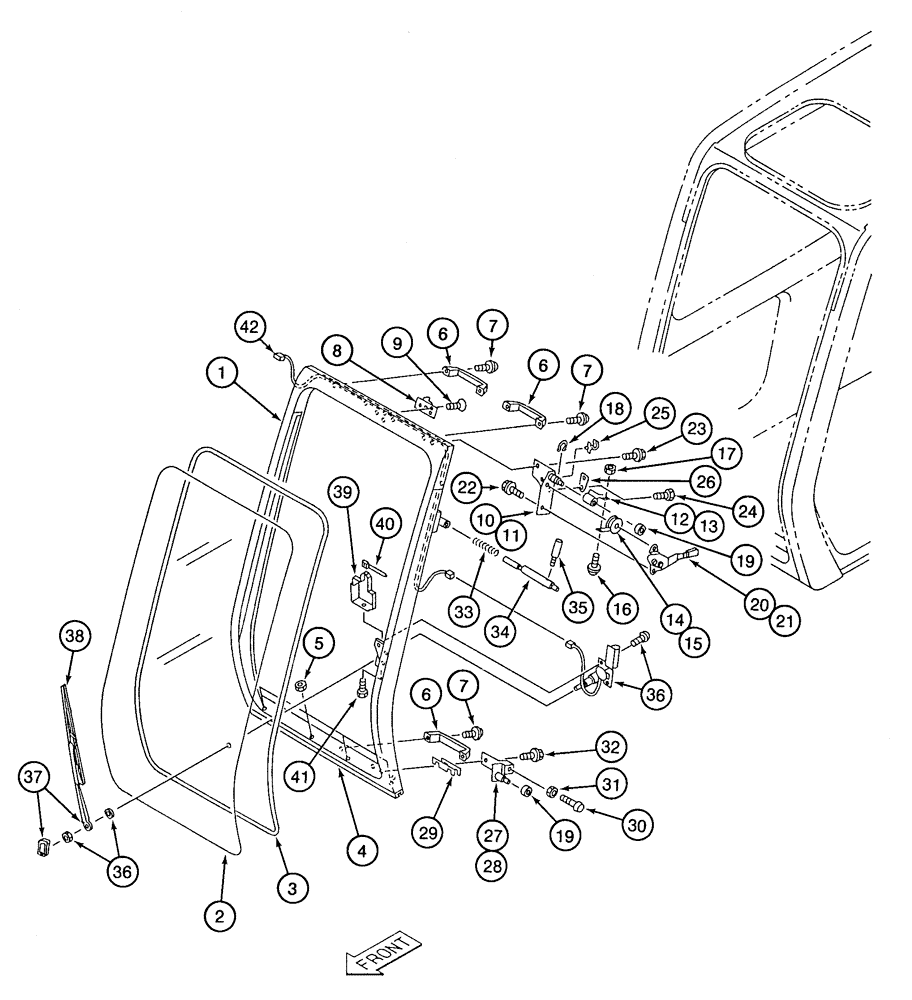

Запчасти Case 9050B (9-056) - CAB FRONT WINDOW ASSEMBLY (09) - CHASSIS

161802A1

CAB

ASSEMBLY - operators includes all parts on figures 9-50 thru 9-58 and 9-62, Includes: Ref. 1 - 42

1шт.

161405A1

WINDOW ASSY

cab front, Includes: Ref. 1 - 42

1шт.

1

161406A1

WINDOW ASSY

cab front

1шт.

2

161407A1

GLASS

tempered, cab front window

1шт.

3

161408A1

SEAL, GLASS

STRIP - weather

1шт.

4

161409A1

SEAL, GLASS

STRIP - weather

1шт.

5

159585A1

NUT

flange, special

4шт.

6

161410A1

HANDLE

window

3шт.

7

161411A1

SCREW

special, window handle

6шт.

8

161412A1

CATCH PLATE

STRIKER - front window

1шт.

9

161397A1

SCREW

front window stopper

3шт.

10

161414A1

BRACKET

window release, left-hand

1шт.

11

161415A1

BRACKET

window release, right-hand

1шт.

12

161416A1

HOOK

window catch left-hand

1шт.

13

161417A1

HOOK

window catch, right-hand

1шт.

14

161418A1

SPRING

torsion-type, window lock right-hand

1шт.

15

161419A1

SPRING

torsion-type, window lock left-hand

1шт.

16

161420A1

SCREW

- special

4шт.

17

161421A1

NUT

special

4шт.

18

161422A1

RING

snap, special

2шт.

19

161423A1

ROLLER

window lock

4шт.

20

161424A1

LOCK

front window, left-hand

1шт.

21

161425A1

LOCK

front window, right-hand

1шт.

22

161426A1

BOLT,Sems, Hex, M6 x 20mm

special bracket and lock

4шт.

23

161427A1

BOLT

special bracket

6шт.

24

161342A1

BOLT

flange, special stopper

2шт.

25

161429A1

CLIP

wire

1шт.

26

161430A1

STOP

hook

2шт.

27

161431A1

BRACKET

special left-hand

1шт.

28

161432A1

BRACKET

special right-hand

1шт.

29

161433A1

ADJUSTING PLATE

SHIM - plate, special

4шт.

30

161434A1

STOP

front window

2шт.

31

161357A1

NUT

rubber door stopper

2шт.

32

161426A1

BOLT,Sems, Hex, M6 x 20mm

special

4шт.

33

161436A1

SPRING

compression-type

1шт.

34

161437A1

STEM

PIN - special front window

1шт.

35

161438A1

LEVER

HANDLE - lock pin

1шт.

36

160366A1

WIPER MOTOR

wiper, windshield

1шт.

37

160364A1

WIPER ARM

wiper, windshield

1шт.

38

160363A1

WIPER BLADE

wiper, windshield

1шт.

39

161439A1

COVER

wiper motor

1шт.

40

161440A1

MOUNTING CLIP

STRAP - tie, special

1шт.

41

161441A1

FLANGE BOLT

flange, special

1шт.

42

161442A1

HARNESS

electrical wiring, wiper motor

1шт.
