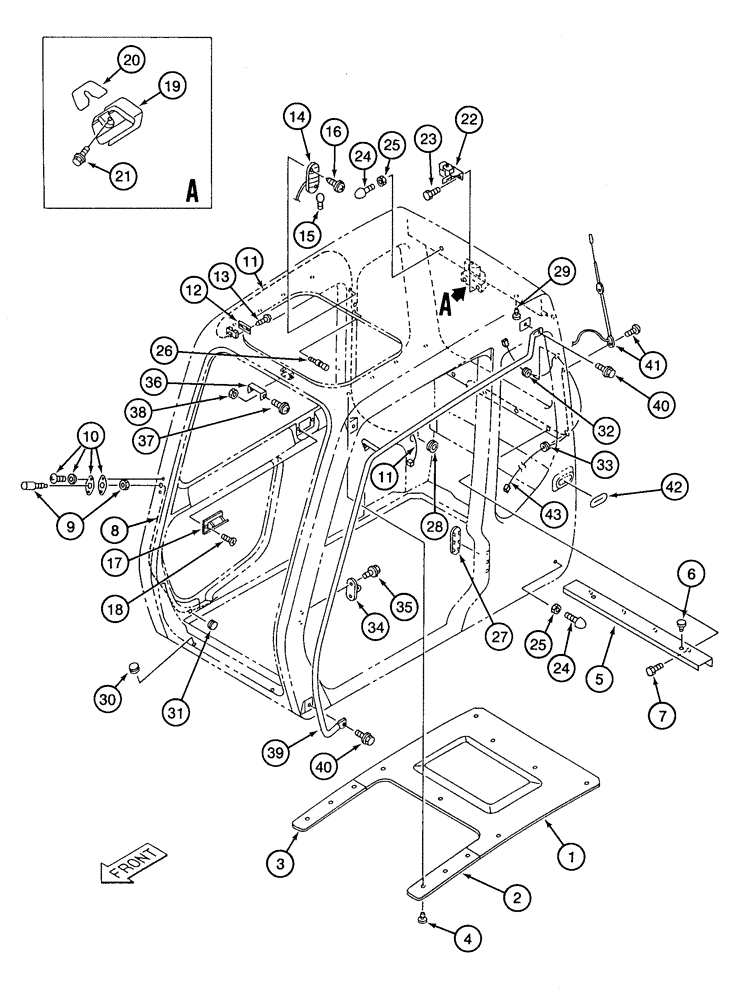

Запчасти Case 9050B (9-052) - CAB MISCELLANEOUS PARTS (09) - CHASSIS

161802A1

CAB

ASSEMBLY - operators inculdes all parts on figures 9-50 thru 9-58 and 9-62, Includes: Ref. 1 - 43

1шт.

162169A1

CAB

BODY ASSEMBLY - cab includes all parts on figures 9-50 thru 9-54, Includes: Ref. 1 - 43

1шт.

1

161336A1

INSULATOR

PAD - roof, rear

1шт.

2

161337A1

INSULATOR

PAD - roof, left-hand

1шт.

3

161338A1

INSULATOR

PAD - roof, right-hand

1шт.

4

161339A1

COLLAR

CLIP - trim

13шт.

5

161340A1

LARGE PLATE

special

1шт.

6

161341A1

STOP

special

2шт.

7

161342A1

BOLT

flange, special

8шт.

8

161343A1

HOSE

- 1250 mm (49-3/16 inch) long, Windshield washer

1шт.

9

161344A1

DIFFUSER

NOZZLE - special windshield washer

1шт.

10

161345A1

ADAPTER

nozzle, special

1шт.

11

161346A1

HARNESS

electircal wiring, special

1шт.

12

161347A1

PLATE, SPACER

connector, special

1шт.

13

161348A1

SELF-TAP SCREW

self-tapping, special

2шт.

14

161349A1

CEILING LAMP

LAMP - cab dome, Includes: Ref. 15

1шт.

15

162830A1

BULB

dome lamp

1шт.

16

159545A1

SELF-TAP SCREW

self-tapping, special

10шт.

17

161350A1

ASH TRAY

cab

1шт.

18

161351A1

SELF-TAP SCREW

self-tapping, special

2шт.

19

161352A1

STOP

rubber special

1шт.

20

161353A1

SHIM

rubber stopper

1шт.

21

159544A1

BOLT

rubber stopper, special

1шт.

22

161354A1

LOCK

window

1шт.

23

161355A1

FLANGE BOLT

flange, special

8шт.

24

161356A1

STOP

rubber, door

4шт.

25

161357A1

NUT

rubber door stopper

6шт.

26

161358A1

COAT HOOK

HANGER - operators clothes

1шт.

27

161359A1

CAP

special

2шт.

28

161360A1

GUARD ASSY.

GROMMET - rubber, special

1шт.

29

161361A1

PLUG

special

2шт.

30

161362A1

GROMMET

- rubber, special

2шт.

31

161363A1

GROMMET

- rubber, special

1шт.

32

162833A1

GROMMET

- rubber, special

1шт.

33

161365A1

GROMMET

- rubber, special

1шт.

34

161366A1

CATCH PLATE

STRIKER - cab door

1шт.

35

161367A1

BOLT

door striker

10шт.

36

161368A1

STOP

roof lock

1шт.

37

161369A1

SCREW

roof lock stopper

2шт.

38

161370A1

NUT

special

2шт.

39

162834A1

RAIL ASSY.

cab hand

1шт.

40

161371A1

BOLT

special, hand rail

3шт.

41

161372A1

ANTENNA

cab radio

1шт.

42

161373A1

GROMMET

special, door catch

1шт.

43

162832A1

HARNESS

electrical wiring, cab fan

1шт.
