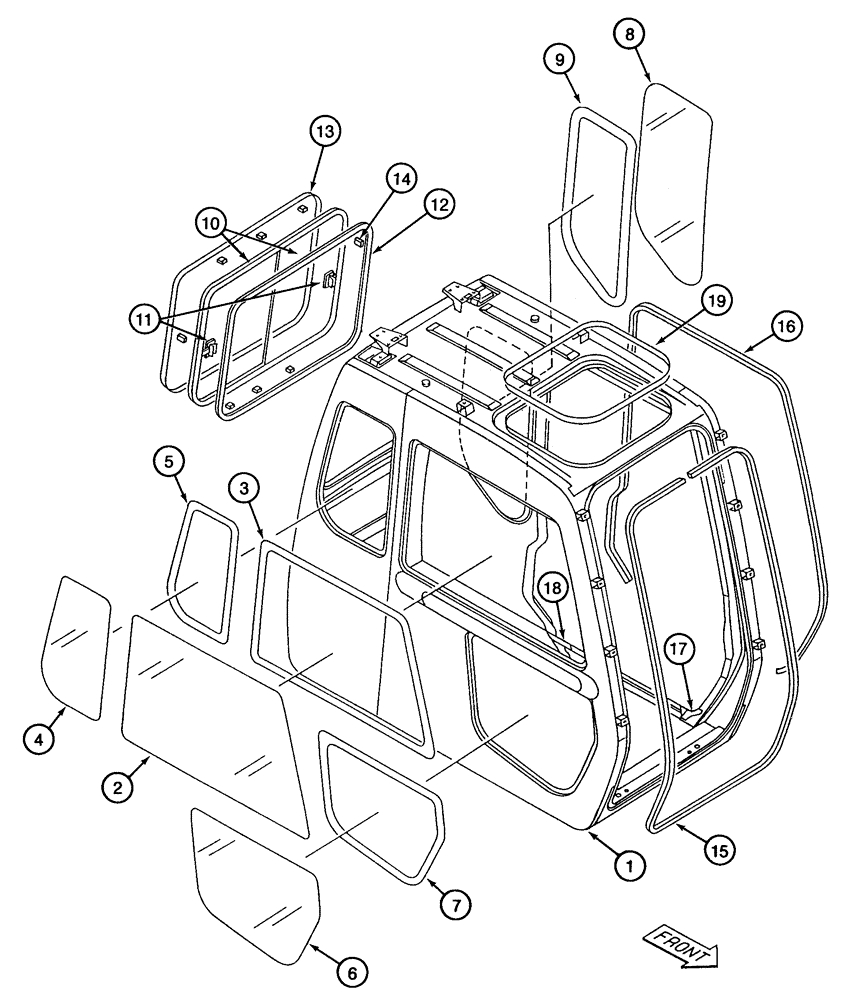

Запчасти Case 9050B (9-050) - CAB WINDOWS AND SEALS (09) - CHASSIS

161802A1

CAB

ASSEMBLY - operators includes all parts on figures 9-50 thru 9-58 and 9-62, Includes: Ref. 1 - 19

1шт.

162169A1

CAB

BODY ASSEMBLY - cab includes all parts on figures 9-50 thru 9-54, Includes: Ref. 1 - 19

1шт.

1

162831A1

CAB BODY

operators

1шт.

2

162175A1

GLASS

tempered, right-hand, upper, center

1шт.

3

161325A1

SEALING STRIP

STRIP - weather

1шт.

4

162177A1

GLASS

tempered, right-hand, upper, rear

1шт.

5

161326A1

SEAL, GLASS

STRIP - weather

1шт.

6

162176A1

GLASS

tempered, right-hand, lower, front

1шт.

7

161327A1

SEAL, GLASS

STRIP - weather

1шт.

8

162179A1

GLASS

tempered, left-hand, upper, rear

1шт.

9

161328A1

SEAL, GLASS

STRIP - weather

1шт.

162168A1

WINDOW ASSY

SASH ASSEMBLY - rear window, Includes: Ref. 10 and 11

1шт.

10

162178A1

GLASS

WINDOW - plastic

2шт.

11

162829A1

LOCK

window rear windows

2шт.

12

161329A1

SEAL

cushion, window

1шт.

13

161330A1

RUBBER BLOCK

TRIM - special, window

1шт.

14

159543A1

SPACER

sash

8шт.

15

161331A1

SEAL

front window

1шт.

16

161332A1

DOOR SEAL

door

1шт.

17

161333A1

CAP

end, front

1шт.

18

161334A1

CAP

end, rear

1шт.

19

161335A1

SEAL

1шт.
