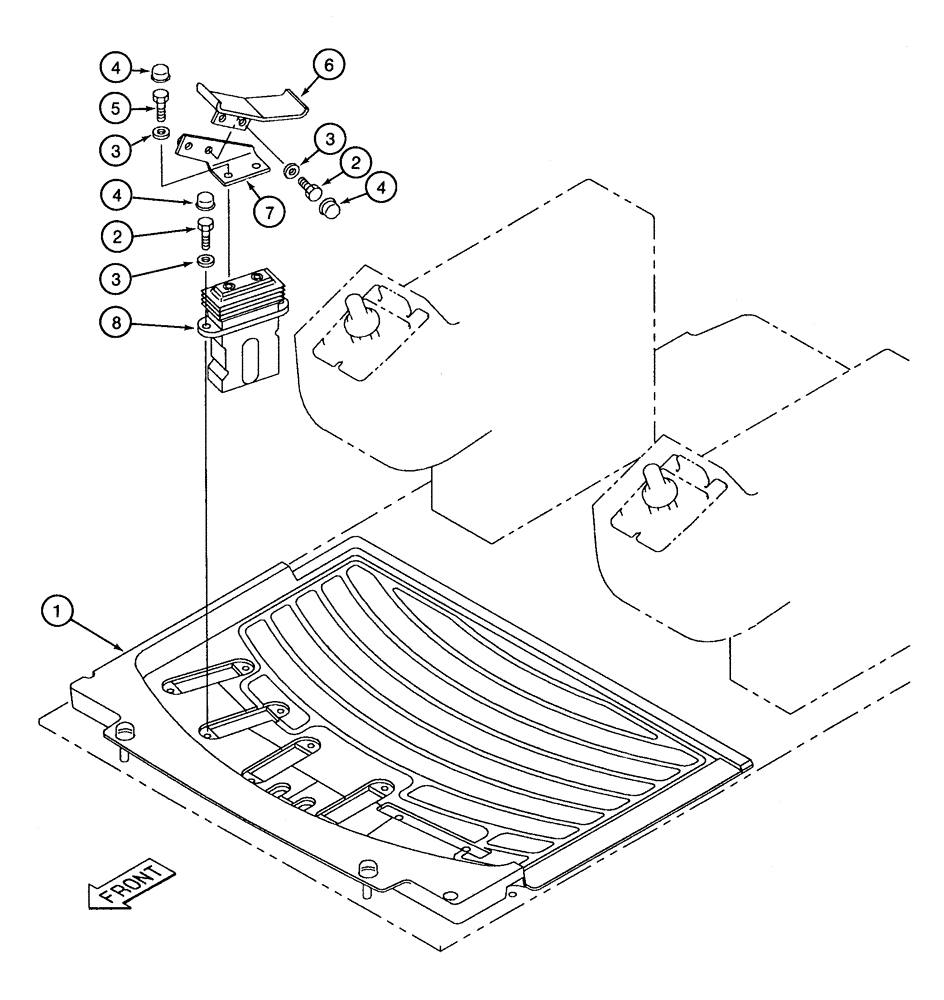

Запчасти Case 9050B (9-048) - AUXILIARY HYDRAULIC CONTROLS, PEDAL AND FLOORMAT (09) - CHASSIS

1

162362A1

FLOOR MAT

floor machines with single pedal travel and auxiliary equipment control pedal

1шт.

2

150552A1

BOLT,High Strength, Hex, M10 x 25mm

hex 10 - 1.5 x 25 mm, class 10.9

4шт.

3

150604A1

WASHER

special

6шт.

4

159488A1

CAP

special

6шт.

5

150548A1

BOLT,High Strength, Hex, M10 x 20mm

hex 10 - 1.5 x 20 mm, class 10.9

2шт.

6

162963A1

PEDAL

auxiliary hydraulic control

1шт.

7

161843A1

BRACKET

pedal mounting

1шт.

8

162079A1

CONTROL BLOCK

ASSEMBLY - remote control auxiliary hydraulic equipment, see figure 8-122

1шт.
