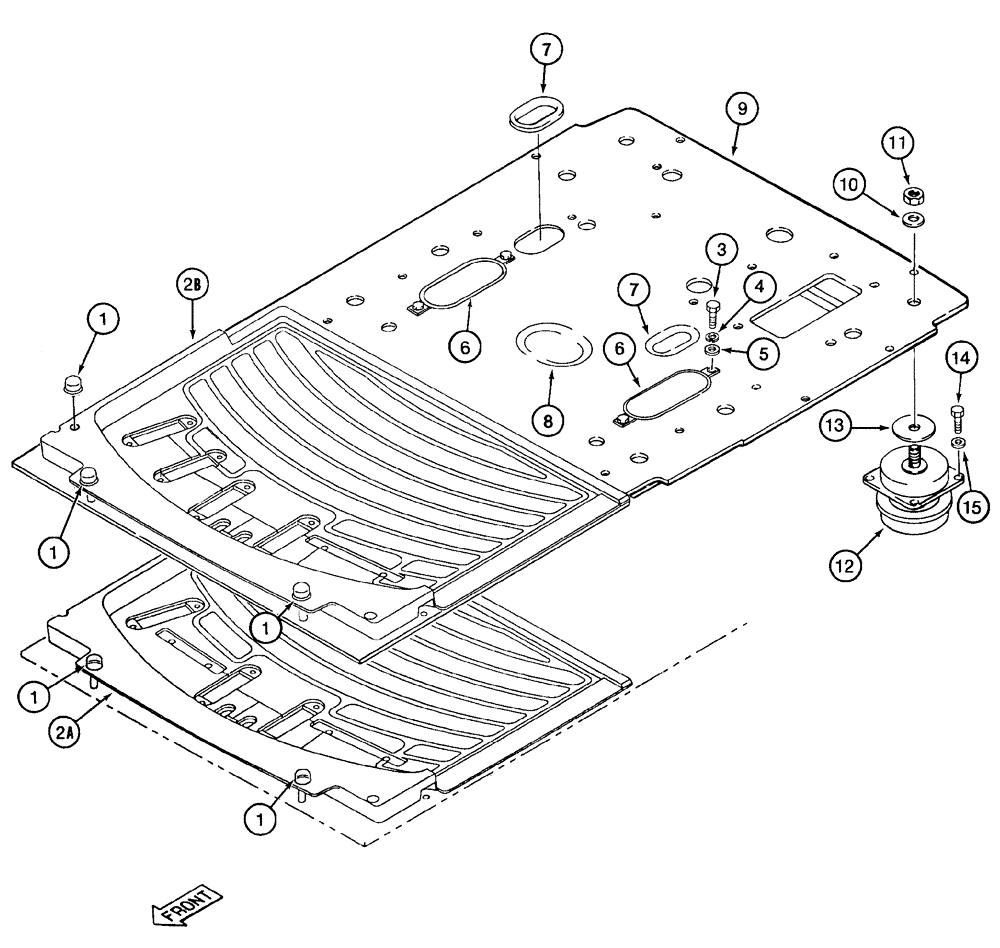

Запчасти Case 9050B (9-044) - CAB FLOOR AND MOUNTING (09) - CHASSIS

1

159489A1

CAP

special

3шт.

2a

159496A1

FLOOR MAT

floor machines with single pedal travel but without auxiliary hydraulic equipment

1шт.

2b

162362A1

FLOOR MAT

florr machines with single pedal travel adn auxiliary hydraulic equipment control pedal

1шт.

3

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

4шт.

4

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

6

162622A1

GROMMET

GUIDE - cab floor

2шт.

7

162623A1

GROMMET

rubber

2шт.

8

162624A1

GROMMET

rubber

1шт.

9

162621A1

CUSHION

FLOOR - cab

1шт.

10

150714A1

WASHER

special

6шт.

11

150760A1

NUT

hex

6шт.

12

162215A1

INSULATOR BLOCK

MOUNT - rubber, cab floor

6шт.

13

151092A1

SPACER

floor mount

1шт.

14

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads 10 - 1.5 x 25 mm, class 10.9

28шт.

15

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

31шт.

16

162625A1

GROMMET

rubber

2шт.

17

162626A1

SEAL

cushion

1шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.
