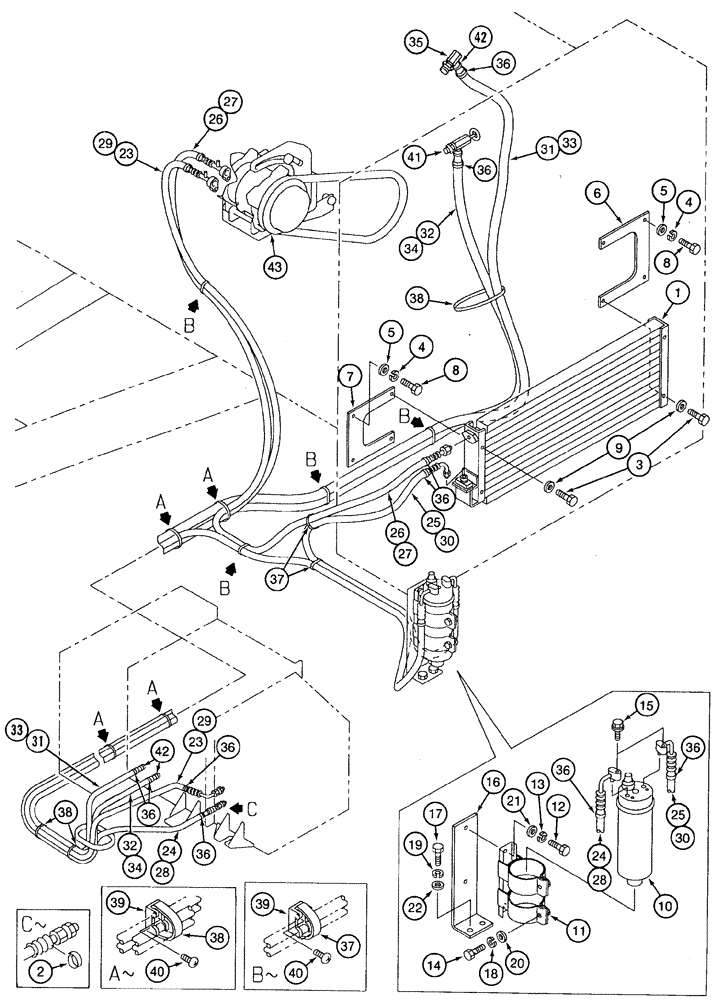

Запчасти Case 9050B (9-040) - AIR CONDITIONER WITH HEATER AND HOSES (09) - CHASSIS

1

159646A1

CONDENSER

air conditioner

1шт.

2

157294A1

TAPE

special, refrigerant

1шт.

3

827-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9

- hex, 8 - 1.25 x 55 mm, class 10.9

4шт.

4

892-11010

LOCK WASHER,M10

4шт.

6

162461A1

BRACKET

condenser

1шт.

7

162462A1

BRACKET

condenser

1шт.

8

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads 10 - 1.5 x 25 mm, class 10.9

4шт.

9

153081A1

WASHER

flat, special

4шт.

10

159634A1

RECEIVER-DRYER

RECEIVER DRIER - air conditioning

1шт.

11

159635A1

SUPPORT

BRACKET - receiver-drier

1шт.

12

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

hex, full threads 8 - 1.25 x 20 mm, class 10.9

2шт.

13

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

14

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

2шт.

15

162043A1

BOLT,Spcl, M6

special

2шт.

16

162464A1

BRACKET

reveiver-drier holder

1шт.

17

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads 10 - 1.5 x 25 mm, class 10.9

2шт.

18

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

19

892-11010

LOCK WASHER,M10

2шт.

20

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

flat, 6.6 x 12.5 x 1.6 mm

2шт.

23

162466A1

HOSE ASSY.

33-1/2 inch (850 mm) long

1шт.

24

159642A1

HOSE,3850.00 mm

1шт.

25

162467A1

HOSE,1100.00 mm

1шт.

26

162592A1

HOSE ASSY.

98-1/2 inch (2500 mm) long

1шт.

27

158066A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated 90-1/2 inch (2300 mm) long

1шт.

28

151563A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated 149-5/8 inch (3800 mm) long

1шт.

29

157926A1

PLASTIC-RUBBER TUBE,22 mm ID, 27 mm OD, 4100 mm Length

SLEEVE - corrugated 161-7/16 inch (4100 mm) long

1шт.

30

150774A1

PLASTIC-RUBBER TUBE

corrugated 39-3/8 inch (1000 mm) long

1шт.

31

151553A1

TUBE

SLEEVE - corrugated 189 inch (4800 mm) long

1шт.

32

151548A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated 169-9/32 inch (4300 mm) long

1шт.

33

152639A1

HOSE,13.00 mm ID x 5000.00 mm

- From heater back to engine 13.00 mm ID x 5000.00 mm

1шт.

34

150813A1

HOSE

- 177-1/4 inch (4500 mm) long

1шт.

35

151061A1

NIPPLE, LUBE

ADAPTER - straight

1шт.

36

150067A1

MOUNTING CLIP

tie

12шт.

37

150496A1

MOUNTING CLIP

tie 250 mm long

6шт.

38

150071A1

MOUNTING CLIP

tie

7шт.

39

150860A1

COLLAR

BRACKET - tie strap support

8шт.

40

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

8шт.

41

152725A1

VALVE

shutoff

1шт.

42

150384A1

COLLAR

adjustable

4шт.

43

REF

INSTRUCTION

COMPRESSOR - air conditioner see figure 2-20

1шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.
