(9-038) - HEATER AND HOSES

Запчасти Case 9050B (9-038) - HEATER AND HOSES (09) - CHASSIS

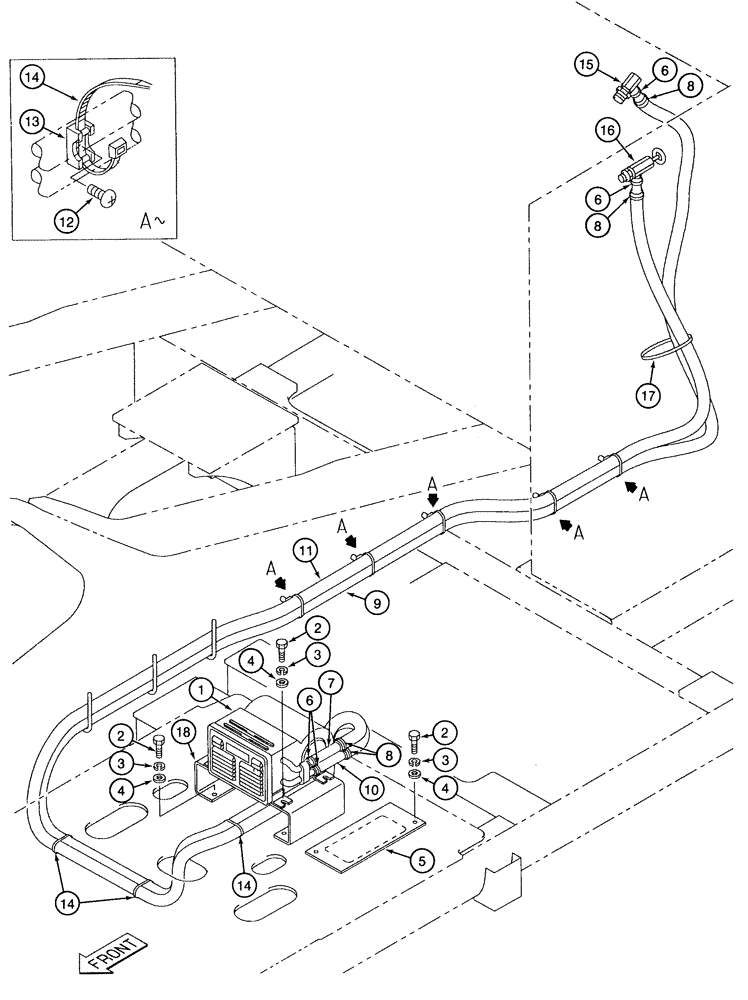

Схема запчастей Case 9050B - (9-038) - HEATER AND HOSES (09) - CHASSIS
16
5
4
14
4
2
18
4
7
8
3
17
2
9
1
10
6
6
11
3
14
15
8
8
2
13
6
12
14
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152815A1

HEATER,Assembly, Cab

cab

1шт.

2

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

10шт.

3

892-11010

LOCK WASHER,M10

10шт.

5

159950A1

COVER

cab floor

1шт.

6

150384A1

COLLAR

adjustable

4шт.

7

163162A1

HOSE,5200mm L

1шт.

8

150067A1

MOUNTING CLIP

tie

1шт.

9

163164A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated 212-5/8 inch (5400 mm) long

1шт.

10

163161A1

HOSE,5600.00 mm

1шт.

11

163163A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated 196-7/8 inch (5000 mm) long

1шт.

12

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

5шт.

13

150860A1

COLLAR

BRACKET - tie 250 mm long

5шт.

14

150496A1

MOUNTING CLIP

tie 250 mm long

1шт.

15

151061A1

NIPPLE, LUBE

ADAPTER - straight

1шт.

16

152725A1

VALVE

shutoff

1шт.

17

150071A1

MOUNTING CLIP

STRAP - tie

1шт.

18

161721A1

SUPPORT

BRACKET - mounting, heater

1шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

10шт.
