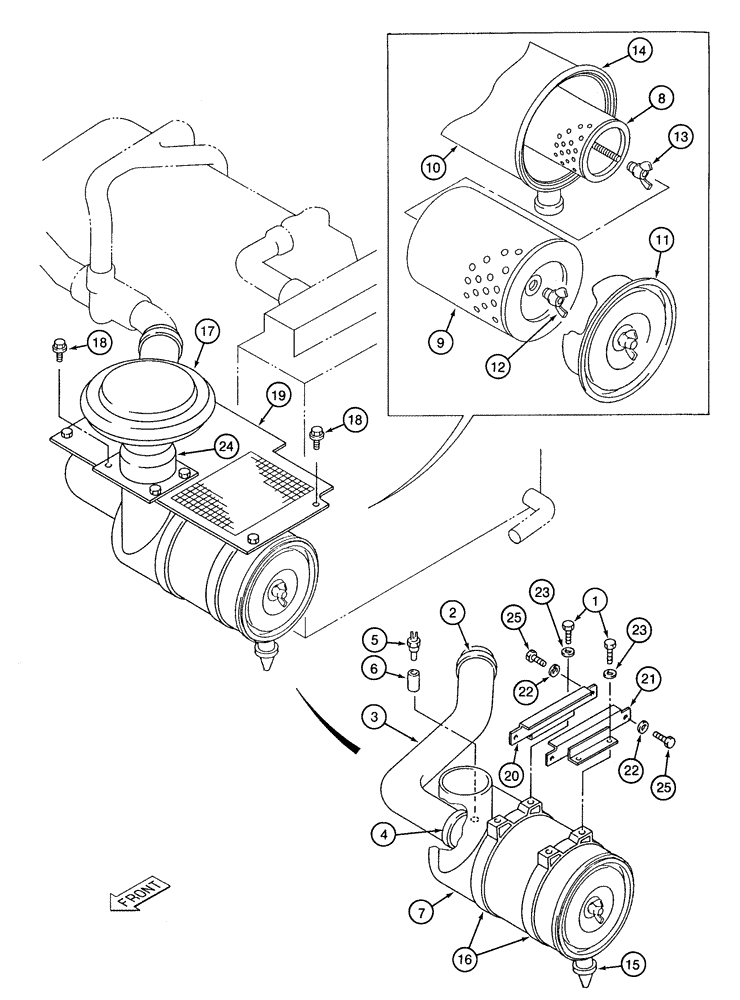

Запчасти Case 9050B (2-12) - AIR CLEANER SYSTEM, 6D22-T ENGINE (02) - ENGINE

1

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads 10 - 1.5 x 25 mm, class 10.9

4шт.

2

150545A1

COLLAR

hose at turbo

1шт.

3

162519A1

AIR HOSE,101.60 mm ID, 127.00 mm ID x 506.00 mm

- Inlet 101.60 mm ID, 127.00 mm ID x 506.00 mm

1шт.

4

150855A1

HOSE CLAMP,127mm - 146mm

CLAMP - at air cleaner

1шт.

5

150042A1

SENSOR

SWITCH - air restriction indicator

1шт.

6

150116A1

SOCKET

ADAPTER - switch

1шт.

162965A1

CLEANER ASSY.

ASSEMBLY - air, Includes: Ref. 7 - 17

1шт.

7

162965A1

CLEANER ASSY.

BODY ASSEMBLY - air cleaner, Includes: Ref. 8 - 15

1шт.

8

151397A1

AIR FILTER

ELEMENT - inner, air cleaner

1шт.

9

150783A1

ELEMENT

outer, air cleaner

1шт.

10

163725A1

CASE

BODY - air cleaner

1шт.

11

163726A1

COVER ASSY

air cleaner, includes captive wing nut

1шт.

12

156678A1

NUT

wing type outer element, includes gasket

1шт.

13

156679A1

NUT

wing type inner element, includes gasket

1шт.

14

157236A1

GASKET

cover

1шт.

15

156680A1

VALVE

CUP - dust

1шт.

16

162964A1

MOUNTING CLIP

BRACKET - mounting, air cleaner

2шт.

17

150786A1

CAP

COVER - air inlet

1шт.

18

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, cover plate

8шт.

19

162361A1

COVER

PLATE - cover on upper structure

1шт.

20

162364A1

BRACKET

support

1шт.

21

162416A1

BRACKET

support

1шт.

22

150811A1

WASHER

flat, special 12 mm

4шт.

23

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

4шт.

24

162520A1

AIR INTAKE TUBE,155 mm ID, 159 mm OD

PIPE - air inlet

1шт.

25

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

4шт.
