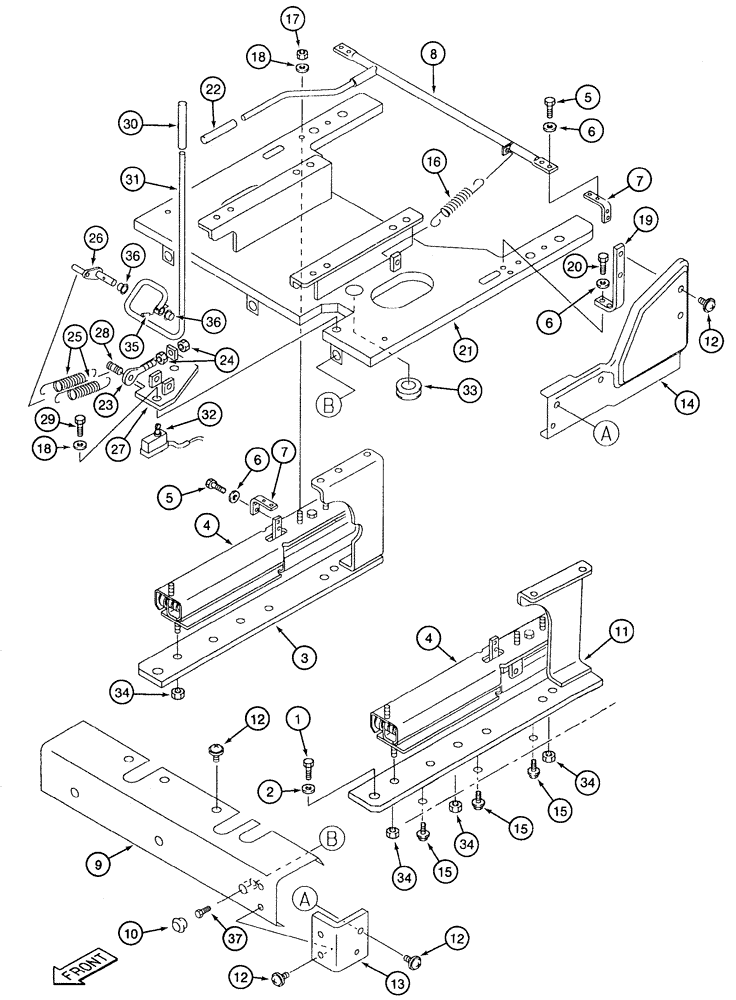

Запчасти Case 9050B (9-036) - SEAT SLIDE RAILS AND PLATFORM (09) - CHASSIS

1

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads 12 - 1.75 x 30 mm, class 10.9

2шт.

2

150811A1

WASHER

flat, special 12 mm

2шт.

3

159517A1

SUPPORT ASSY.

STAND - rail and platform mounting right hand

1шт.

4

159513A1

RAIL ASSY.

RAIL - slide, seat

2шт.

6

153081A1

WASHER

flat, special

10шт.

7

159331A1

BRACKET

90 degree, Serial Range: lever-rail

2шт.

8

159516A1

LEVER

seat adjusting, forward and reverse

1шт.

9

159314A1

COVER

GUARD - front, rail protection

1шт.

10

159519A1

PLUG

COVER - bolt head

3шт.

11

159518A1

SUPPORT ASSY.

STAND - rail and platform mounting, left-hand

1шт.

12

159533A1

SCREW

machine, special

10шт.

13

159287A1

COVER

BRACKET - 90 degree angle

1шт.

14

159260A1

COVER

GUARD - rail protection, left-hand side

1шт.

15

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, rail mounting

6шт.

16

159502A1

SPRING

seat adjuster return

1шт.

18

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

8шт.

19

159317A1

BRACKET

90 degree strap

1шт.

20

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

2шт.

21

162572A1

PLATFORM

seat mounting

1шт.

22

159501A1

CAP

GRIP - vinyl forward and reverse lever

1шт.

23

159346A1

BALL JOINT

EYE - threaded spring anchor, gate lock control lever

1шт.

25

159539A1

SPRING

return gate lock control lever

2шт.

26

159255A1

LINK

BELLCRANK - control lever gate lock

1шт.

27

159254A1

BRACKET

lever pivot gate lock

1шт.

28

159249A1

PIN

grooved spring anchor

1шт.

29

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

30

159547A1

CAP

GRIP - vinyl gate lock control lever

1шт.

31

159546A1

LEVER

control gate lock

1шт.

32

159541A1

LIMIT SWITCH

limit gate lock control

1шт.

33

150413A1

GROMMET

rubber

1шт.

34

150472A1

FLANGE NUT

hex flange, special 8 mm - 1.25

6шт.

35

738-1525

LOCK PIN,M5 x 25, Slotted

roll, 5 x 25 mm

1шт.

36

159244A1

RING

BUSHING - lever gate lock control

2шт.

37

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

hex, special

3шт.

5

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, class 10.9

8шт.

17

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

24

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.
