(9-034) - SEAT, SEAT BELTS AND OPERATORS MANUAL TETHER

Запчасти Case 9050B (9-034) - SEAT, SEAT BELTS AND OPERATORS MANUAL TETHER (09) - CHASSIS

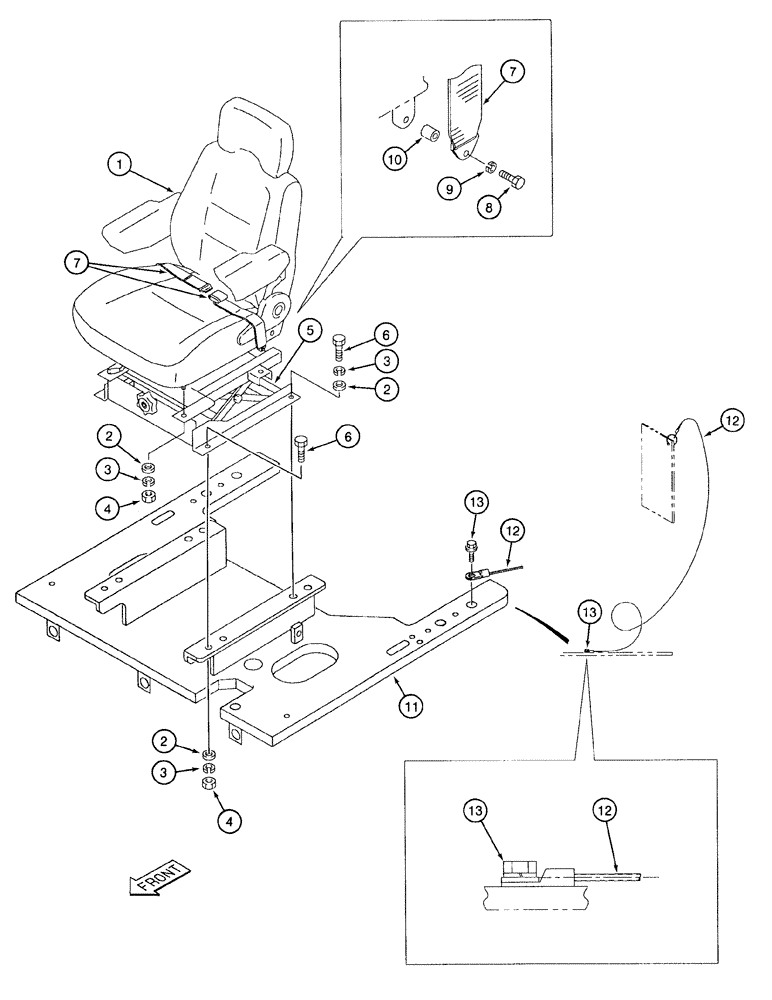

Схема запчастей Case 9050B - (9-034) - SEAT, SEAT BELTS AND OPERATORS MANUAL TETHER (09) - CHASSIS
4
12
3
3
9
7
4
2
3
5
2
12
13
10
11
13
2
6
7
12
6
1
8
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

159525A1

SEAT ASSY.

operators component parts not serviced separately

1шт.

2

159500A1

WASHER

flat, special

8шт.

3

159499A1

SPRING WASHER

lock, special

8шт.

4

157770A1

NUT

hex, special

6шт.

5

159526A1

SUSPENSION

seat base component part not serviced separately

1шт.

6

159534A1

BOLT,High Strength, Hex, M8 x 25mm

special

4шт.

7

151520A1

SAFETY BELT

SAFETY BELT, Includes Ref. 8 and 9

1шт.

8

151523A1

BOLT,High Strength, Hex

hex special

2шт.

9

151526A1

SPRING WASHER

lock special

2шт.

10

152755A1

SPACER

seat belt mounting

1шт.

11

162572A1

PLATFORM

seat mounting

1шт.

12

159895A1

CABLE,1500mm L

ROPE - steel wire operator's manual tether

1шт.

13

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

hex, special with attached lockwasher

1шт.
