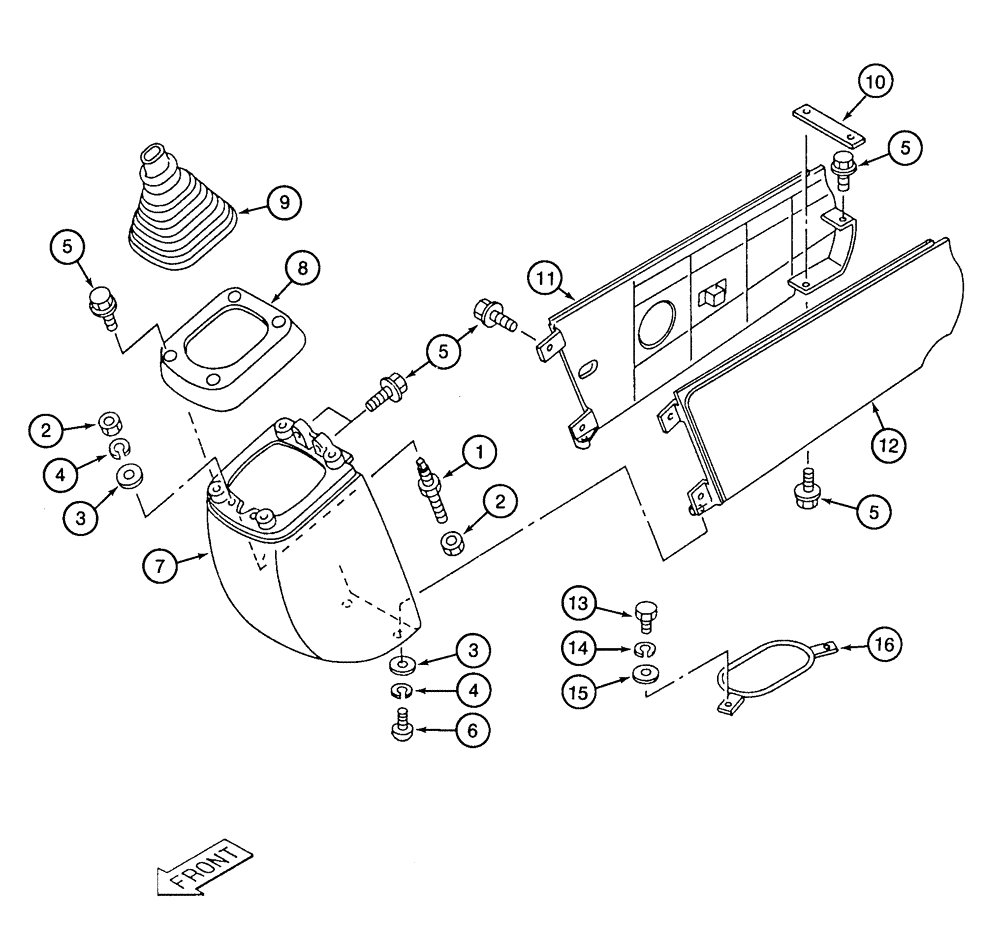

Запчасти Case 9050B (9-032) - CONSOLE BOX, SIDE COVERS (09) - CHASSIS

159520A1

CONSOLE

LINKAGE ASSEMBLY - control, right-hand, Includes: Ref. 1 - 16

1шт.

159537A1

CONSOLE

LINKAGE ASSEMBLY - control, left-hand, Includes: Ref. 1 - 16

1шт.

1

159509A1

BOLT,Spcl, M6 x 38mm

STUD - special

4шт.

2

829-1406

NUT,Hex, M6 x 1, Cl 10.9

8шт.

3

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

flat, 6.6 x 12.5 x 1.6 mm

8шт.

4

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

8шт.

5

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

hex, special

28шт.

7

159507A1

CARRIAGE BOLT,M6 x 12mm

special

4шт.

8

159510A1

COVER

HOUSING - controller

2шт.

9

159318A1

SHIN

FLANGE - boot retainer

2шт.

10

159506A1

BELLOWS

dust protection

2шт.

11

159319A1

BRACKET

STRAP - mounting

2шт.

12

159511A1

COVER

side, right-hand

2шт.

13

159512A1

COVER

side, left-hand

2шт.

14

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

4шт.

15

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.
