(9-024) - REMOTE CONTROL VALVE ASSEMBLY MOUNTING

Запчасти Case 9050B (9-024) - REMOTE CONTROL VALVE ASSEMBLY MOUNTING (09) - CHASSIS

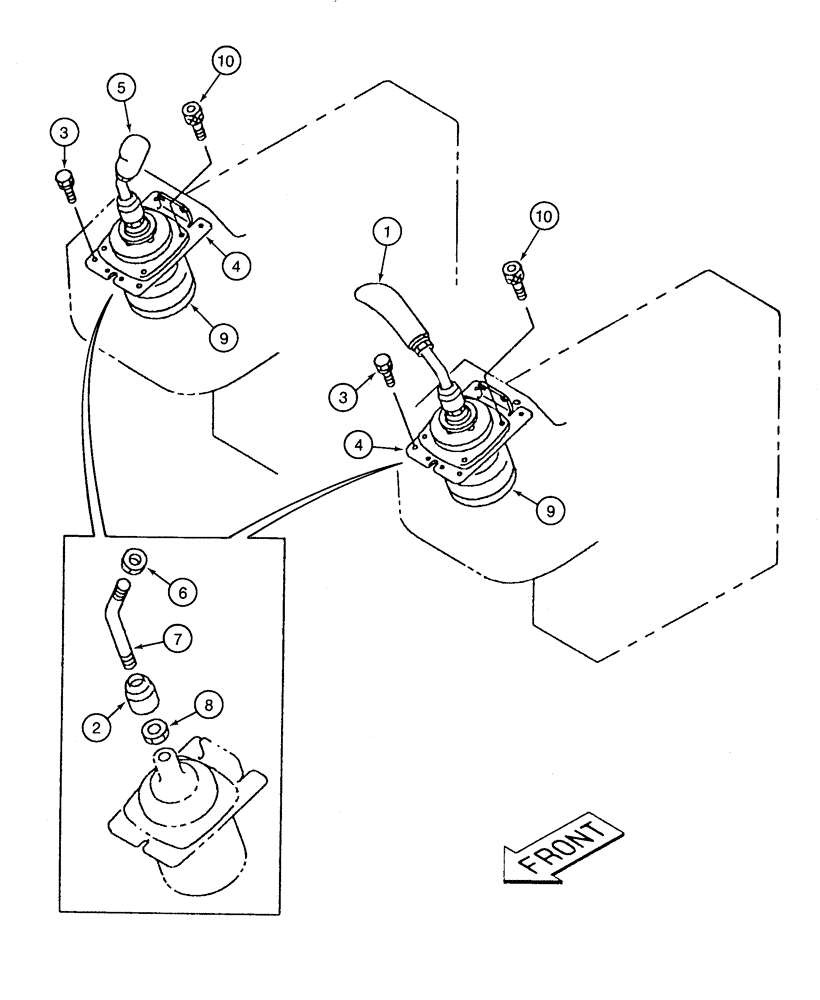

Схема запчастей Case 9050B - (9-024) - REMOTE CONTROL VALVE ASSEMBLY MOUNTING (09) - CHASSIS
9
10
6
8
4
10
1
9
3
2
5
3
7
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

159270A1

KNOB

left-hand, with horn button

1шт.

2

151302A1

CAP

BOOT - dust protection

2шт.

3

159602A1

BOLT,Sems, Hex, M6 x 16mm

special bracket

4шт.

4

159268A1

SUPPORT

BRACKET - mounting

2шт.

5

162363A1

KNOB

right-hand, with power up button

1шт.

6

159487A1

NUT

hex, special knob

2шт.

7

159269A1

LEVER

control

2шт.

8

151154A1

JAM NUT

hex control lever

2шт.

9

162097A1

VALVE

ASSEMBLY - remote control see figure 8-120

2шт.

10

862-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

SCREW - hex socket, 6 - 1.0 x 25 mm, class 12.9

8шт.
