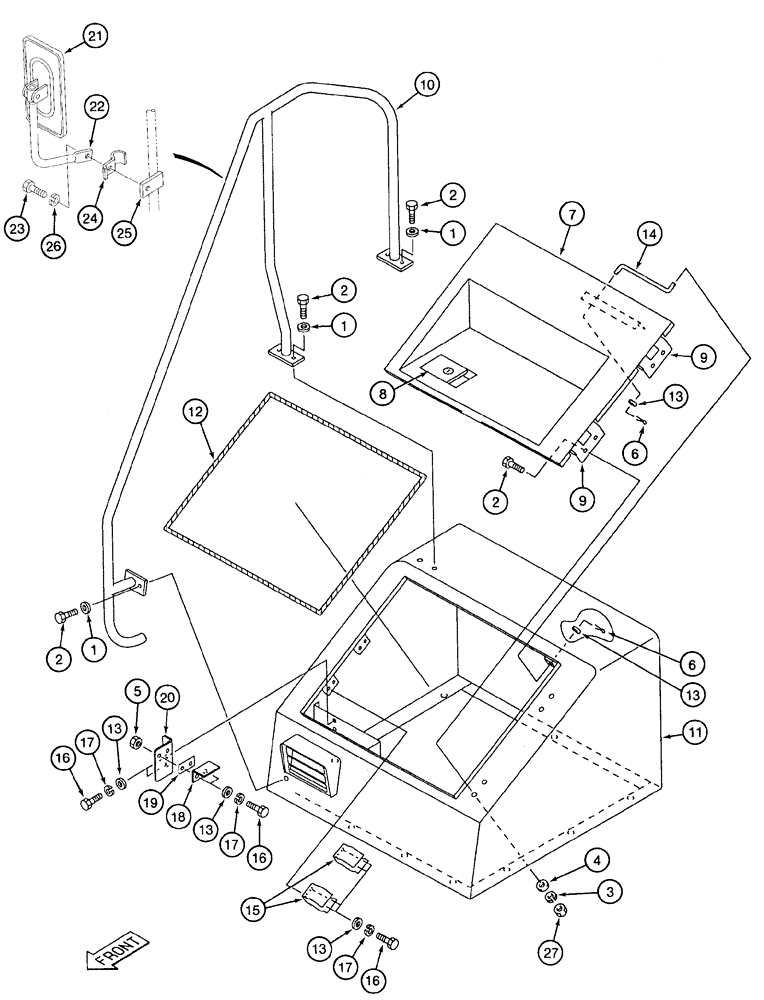

Запчасти Case 9050B (9-022) - UPPER STRUCTURE, STORAGE BOX AND REAR VIEW MIRROR (09) - CHASSIS

1

150811A1

WASHER

flat, special 12 mm

6шт.

2

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads 12 - 1.75 x 30 mm, class 10.9

10шт.

3

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

6

153181A1

COTTER PIN

CLIP - hair pin

2шт.

7

162451A1

COVER

storage box, Includes: Ref. 8 and 9

1шт.

8

150938A1

LOCK

LATCH - recessed

1шт.

9

151104A1

HINGE

door

2шт.

10

162452A1

STAY

HANDRAIL - storage box, right-hand

1шт.

11

162453A1

BOX

storage

1шт.

12

162454A1

SEAL

SEAL - rubber storage box

1шт.

14

159119A1

STAY

SUPPORT - cover, storage box

1шт.

15

152772A1

HOLDER

grease gun

2шт.

16

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads 10 - 1.5 x 25 mm, class 10.9

8шт.

17

892-11010

LOCK WASHER,M10

8шт.

18

162455A1

BRACKET

cover

1шт.

19

159115A1

ADJUSTING PLATE

SHIM - plate

1шт.

20

159114A1

BRACKET

lock

1шт.

21

151025A1

MIRROR

rear view

1шт.

22

156562A1

SUPPORT

ARM - rear view mirror

1шт.

23

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

24

150151A1

CLAMP

special

1шт.

25

150694A1

PLATE

mirror mounting

1шт.

26

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

27

829-1412

NUT,M12, Cl 10.9

4шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

10шт.
