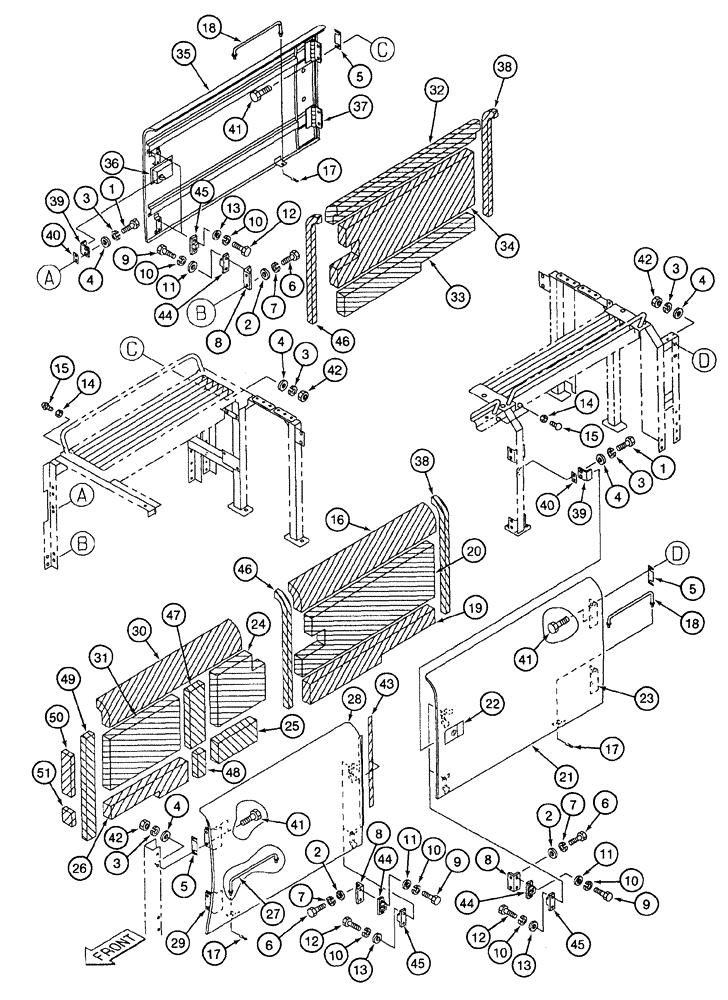

Запчасти Case 9050B (9-020) - UPPER STRUCTURE, LEFT-HAND AND RIGHT-HAND SIDE DOORS (09) - CHASSIS

1

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads 12 - 1.75 x 30 mm, class 10.9

4шт.

3

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

10шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

10шт.

5

152651A1

ADJUSTING PLATE

SHIM - 0.05 inch (1.27 mm) thick

1шт.

7

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

8

159094A1

BRACKET

door

6шт.

9

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

12шт.

10

892-1106

LOCK WASHER,M6

24шт.

11

153360A1

WASHER

flat, special

12шт.

12

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

12шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

flat, 6.6 x 12.5 x 1.6 mm

12шт.

15

159091A1

STOP

rubber

3шт.

16

162430A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

17

153181A1

COTTER PIN

CLIP - hair pin

5шт.

18

159102A1

STAY

HOLDER - door

2шт.

19

162431A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

20

162432A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

21

162433A1

INSPECTION DOOR

ASSEMBLY - side, left-hand rear radiator/oil cooler access, Includes: Ref. 22 and 23

1шт.

22

162434A1

LOCK

door

1шт.

23

162447A1

HINGE

door

2шт.

24

162436A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

25

162437A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

26

162438A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

27

159101A1

STAY

HOLER - door

1шт.

28

162439A1

INSPECTION DOOR

ASSEMBLY - side, left-hand front battery access, Includes: Ref. 29

1шт.

29

162447A1

HINGE

door

2шт.

30

162441A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

31

162442A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

32

162443A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

33

162444A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

34

162445A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

35

162446A1

INSPECTION DOOR

ASSEMBLY - side, right-handrear pump access, Includes: Ref. 36 and 37

1шт.

36

162434A1

LOCK

door

1шт.

37

162447A1

HINGE

door

2шт.

38

162448A1

SEAL

cushion

2шт.

39

162449A1

BRACKET

door lock catch

2шт.

40

151685A1

BLOCK

SHIM - plate

1шт.

41

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

12шт.

42

829-1412

NUT,M12, Cl 10.9

16шт.

43

162450A1

SEAL

CUSHION - rubber

1шт.

44

159095A1

BRACKET

door

6шт.

45

159099A1

STOP

door

6шт.

46

162383A1

SEAL

cushion

2шт.

47

163343A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

48

163344A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

49

163353A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

50

163351A1

SEAL

cushion

1шт.

51

163352A1

SEAL

cushion

1шт.

6

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, class 10.9

6шт.

14

829-1410

NUT,M10 x 1.5, Cl 10.9

5шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

6шт.
