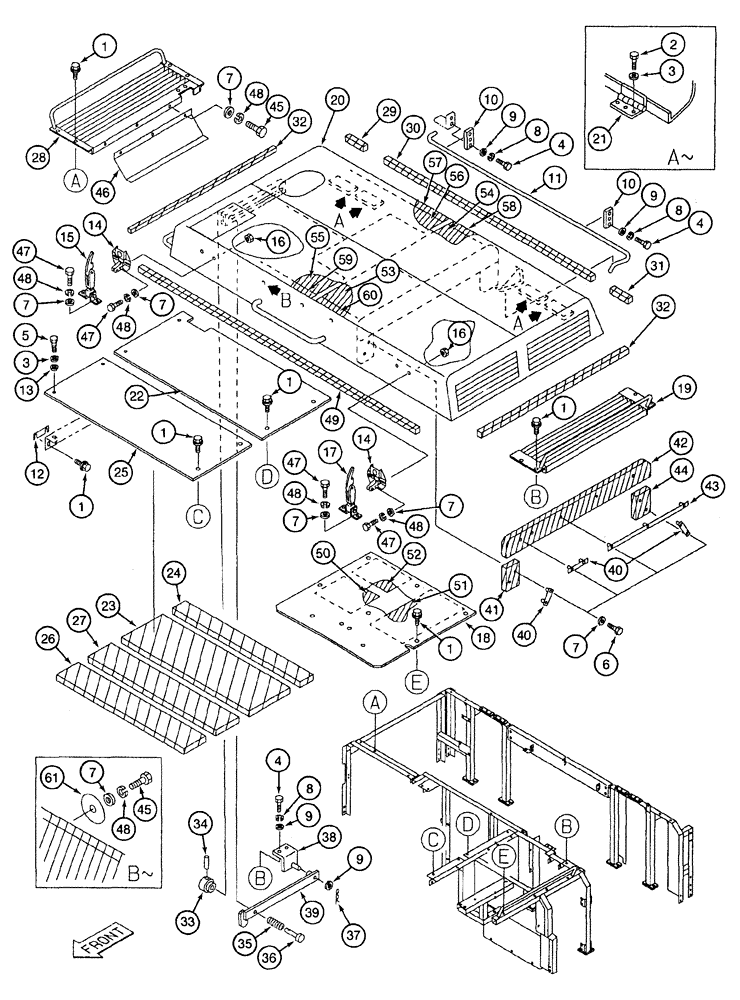

Запчасти Case 9050B (9-016) - UPPER STRUCTURE, HOOD, COVERS AND INSULATION (09) - CHASSIS

1

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

24шт.

2

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

12шт.

3

150811A1

WASHER

flat, special 12 mm

13шт.

4

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads 12 - 1.75 x 30 mm, class 10.9

8шт.

5

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads 12 - 1.75 x 35 mm, class 10.9

4шт.

6

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

7

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

16шт.

8

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

28шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

29шт.

10

162407A1

BRACKET

hood torsion bar

2шт.

11

162408A1

BAR

SPRING - torsion bar hood

1шт.

12

152651A1

ADJUSTING PLATE

SHIM - 0.05 inch (1.27 mm) thick

1шт.

13

162409A1

WASHER

flat, special

4шт.

14

150785A1

STOP LOCK

LATCH - hood assembly

2шт.

15

151361A1

HANDLE

LATCH - hood

1шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

4шт.

17

151356A1

LOCK ASSY

LATCH - hood

1шт.

18

162410A1

COVER

upper left-hand

1шт.

19

162411A1

FRAME

COVER - upper, with hand rail left-hand

1шт.

20

162412A1

HOOD

ASSEMBLY - engine, Includes: Ref. 21

1шт.

21

152819A1

HINGE

4шт.

22

162413A1

COVER

upper in front of hood assembly

1шт.

23

162414A1

NOISE PROTECTION

INSULATION - acooustic

1шт.

24

162415A1

NOISE PROTECTION

INSULATION - acooustic

1шт.

25

162488A1

COVER

upper front center

1шт.

26

162417A1

NOISE PROTECTION

INSULATION - acooustic

1шт.

27

162418A1

NOISE PROTECTION

INSULATION - acooustic

1шт.

28

162419A1

FRAME

COVER - upper, with handrail right-hand

1шт.

29

162420A1

CUSHION

sponge rubber

1шт.

30

162421A1

CUSHION

sponge rubber

1шт.

31

162422A1

CUSHION

sponge rubber

1шт.

32

162423A1

CUSHION

sponge rubber

2шт.

33

159129A1

SPACER

COLLAR - special

1шт.

34

738-5332

PIN, ROLL

roll 3 x 32 mm

1шт.

35

159877A1

SPRING

compression

1шт.

36

159127A1

HEADED PIN

clevis

1шт.

37

160762A1

COTTER PIN

CLIP - hair pin

1шт.

38

162424A1

BRACKET

STAY - hood support

1шт.

39

159128A1

STAY

SUPPORT - hood assembly

1шт.

40

162425A1

RETAINER

seal

3шт.

41

162426A1

CUSHION

SEAL

1шт.

42

162427A1

CUSHION

SEAL

1шт.

43

162428A1

RETAINER

seal

1шт.

44

162429A1

CUSHION

SEAL

1шт.

45

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

hex, full threads 8 - 1.25 x 20 mm, class 10.9

29шт.

46

162382A1

COVER

upper

1шт.

48

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

23шт.

49

162395A1

CUSHION

sponge rubber

1шт.

50

163339A1

NOISE PROTECTION

INSULATION acoustic

1шт.

51

163338A1

NOISE PROTECTION

INSULATION acoustic

1шт.

52

163340A1

NOISE PROTECTION

INSULATION acoustic

1шт.

53

163330A1

NOISE PROTECTION

INSULATION fiberglass

1шт.

54

163328A1

NOISE PROTECTION

INSULATION fiberglass

1шт.

55

163331A1

NOISE PROTECTION

INSULATION fiberglass

1шт.

56

163329A1

NOISE PROTECTION

INSULATION fiberglass

1шт.

57

163333A1

NOISE PROTECTION

INSULATION fiberglass

1шт.

58

163326A1

NOISE PROTECTION

INSULATION fiberglass

1шт.

59

163327A1

NOISE PROTECTION

INSULATION fiberglass

1шт.

60

163332A1

NOISE PROTECTION

INSULATION fiberglass

1шт.

61

163356A1

WASHER

RETAINER - insulation

26шт.

47

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, class 10.9

20шт.
