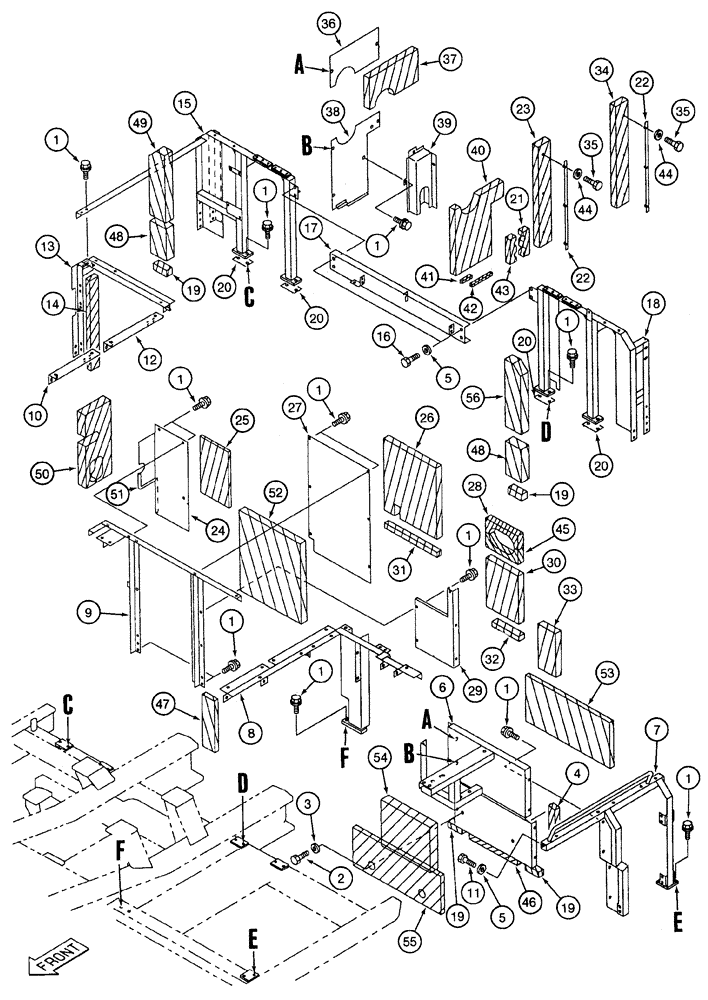

Запчасти Case 9050B (9-012) - UPPER STRUCTURE, FRAMES, COVERS AND INSULATION (09) - CHASSIS

1

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

93шт.

2

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

14шт.

3

151161A1

WASHER

special

2шт.

4

162368A1

SEAL

cushion

1шт.

5

150811A1

WASHER

flat, special 12 mm

36шт.

6

162369A1

FRAME

upper structure left-hand

1шт.

7

162370A1

FRAME

upper structure left-hand

1шт.

8

162371A1

FRAME

upper structure left-hand, front

1шт.

9

162372A1

FRAME

upper structure center

1шт.

10

162373A1

BRACKET

frame right-hand

1шт.

11

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads 12 - 1.75 x 30 mm, class 10.9

32шт.

12

162374A1

BRACKET

frame right-hand

1шт.

13

162375A1

FRAME

upper structure right-hand front

1шт.

14

162376A1

SEAL

cushion

1шт.

15

162377A1

FRAME

upper structure right-hand rear

1шт.

16

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads 12 - 1.75 x 35 mm, class 10.9

8шт.

17

162378A1

FRAME

upper structure

1шт.

18

162379A1

FRAME

upper structure left-hand rear

1шт.

19

162380A1

SEAL

cushion

4шт.

20

162381A1

SHIM

plate

1шт.

21

162404A1

SEAL

cushion

1шт.

22

162405A1

RETAINER

seal

2шт.

23

162406A1

SEAL

cushion

1шт.

24

163348A1

COVER

upper structure right-hand

1шт.

25

162385A1

SEAL

cushion

1шт.

26

162386A1

NOISE PROTECTION

INSULATION acoustic

1шт.

27

162387A1

COVER

upper structure center

1шт.

28

162388A1

SEAL

cushion

1шт.

29

162389A1

COVER

upper structure center

1шт.

30

162390A1

NOISE PROTECTION

INSULATION acoustic

1шт.

31

162391A1

SEAL

cushion

1шт.

32

162392A1

SEAL

cushion

1шт.

33

162393A1

SEAL

cushion

1шт.

34

162394A1

SEAL

cushion

1шт.

35

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

15шт.

36

162396A1

COVER

upper structure upper half on right-hand side

1шт.

37

162397A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

38

162398A1

COVER

upper structure lower half on right-hand side

1шт.

39

162399A1

COVER

upper structure behind cover no. 38

1шт.

40

162400A1

NOISE PROTECTION

INSULATION acoustic

1шт.

41

162401A1

SEAL

cushion

1шт.

42

162402A1

SEAL

cushion

1шт.

43

162403A1

SEAL

cushion

1шт.

44

895-1108

WASHER

flat 9 x 17 x 1.6 mm

38шт.

45

163430A1

SEAL

cushion

1шт.

46

163431A1

SEAL

cushion

1шт.

47

163354A1

SEAL

cushion

1шт.

48

163337A1

NOISE PROTECTION

INSULATION acoustic

2шт.

49

163334A1

NOISE PROTECTION

INSULATION acoustic

1шт.

50

163349A1

NOISE PROTECTION

INSULATION acoustic

1шт.

51

163350A1

HOOK

CUSHION - rubber

1шт.

52

163347A1

NOISE PROTECTION

INSULATION acoustic

1шт.

53

163346A1

NOISE PROTECTION

INSULATION acoustic

1шт.

54

163341A1

NOISE PROTECTION

INSULATION acoustic

1шт.

55

163345A1

NOISE PROTECTION

INSULATION acoustic

1шт.

56

163335A1

NOISE PROTECTION

INSULATION acoustic

1шт.
