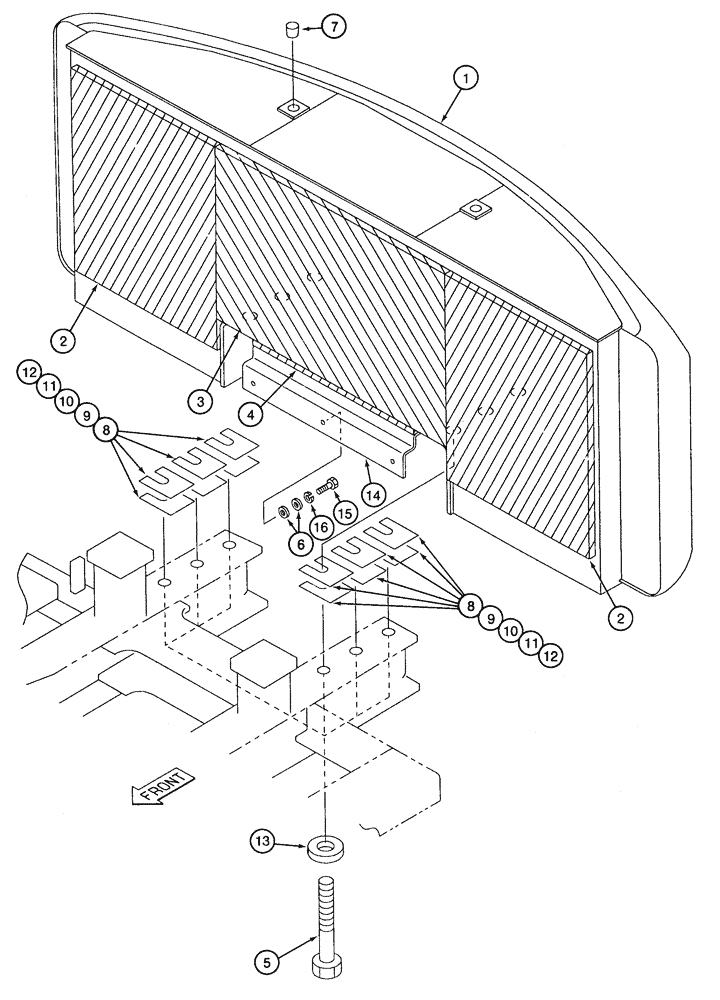

Запчасти Case 9050B (9-010) - COUNTERWEIGHT (09) - CHASSIS

1

162581A1

WEIGHT PACKAGE

COUNTERWEIGHT - rear 13,230 lbs (6048 kg)

1шт.

2

162582A1

NOISE PROTECTION

INSULATION - acoustic

2шт.

3

162583A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

4

162584A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

5

159758A1

BOLT,Spcl, Hex, M27 x 290mm

special

6шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

7

150139A1

PLUG

special counterweight

2шт.

8

162585A1

ADJUSTING PLATE

SHIM - counterweight 0.03 inch (0.77 mm) thick

1шт.

9

162586A1

ADJUSTING PLATE

SHIM - counterweight 0.05 inch (1.27 mm) thick

1шт.

10

162587A1

ADJUSTING PLATE

SHIM - counterweight 0.09 inch (2.29 mm) thick

1шт.

11

162588A1

ADJUSTING PLATE

SHIM - counterweight 0.18 inch (4.58 mm) thick

1шт.

12

162589A1

ADJUSTING PLATE

SHIM - counterweight 0.25 inch (6.35 mm) thick

1шт.

13

157544A1

WASHER

hight strength, special

6шт.

14

162590A1

BRACKET

counterweight mounting

1шт.

15

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

3шт.

16

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

3шт.
