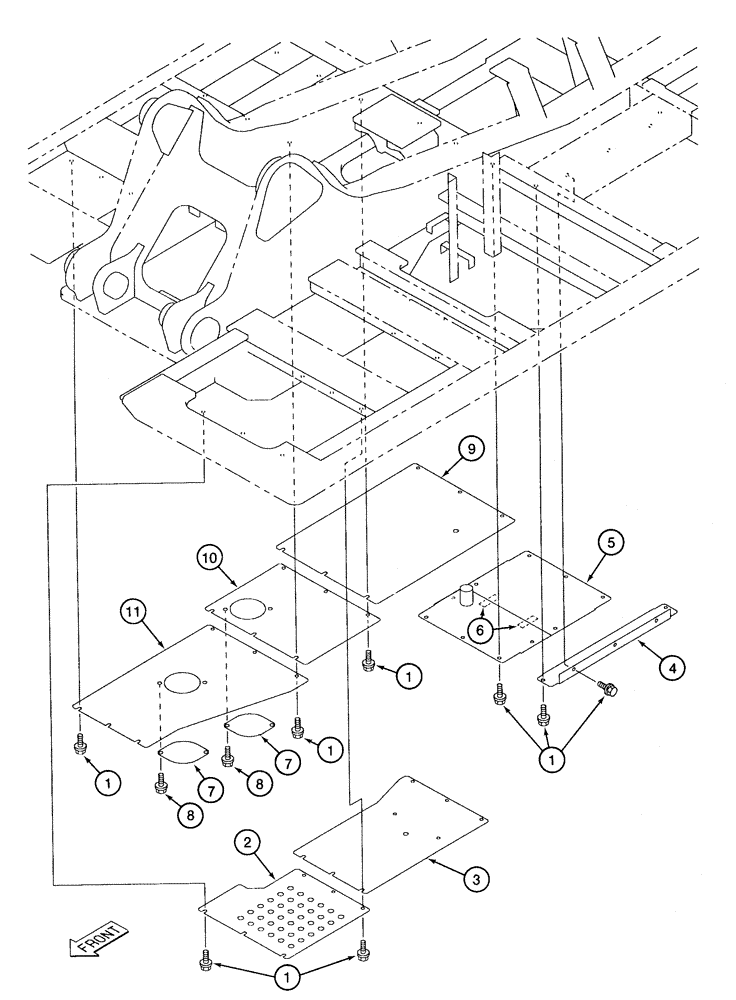

Запчасти Case 9050B (9-008) - TURNTABLE ACCESS COVERS (09) - CHASSIS

1

162278A1

BOLT

flange head, special

38шт.

2

162279A1

COVER

access left-hand front

1шт.

3

162280A1

COVER

access left-hand center

1шт.

4

162281A1

COVER

access left-hand rear

1шт.

5

162282A1

COVER

ASSEMBLY, hinged center rear, Includes: Ref. 6

1шт.

6

162283A1

HINGE

special hinged access cover

2шт.

7

162284A1

COVER

PLATE, access cover

2шт.

8

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, flange head

4шт.

9

162285A1

COVER

access right-hand rear

1шт.

10

162286A1

COVER

access right-hand center

1шт.

11

162287A1

COVER

access right-hand front

1шт.
