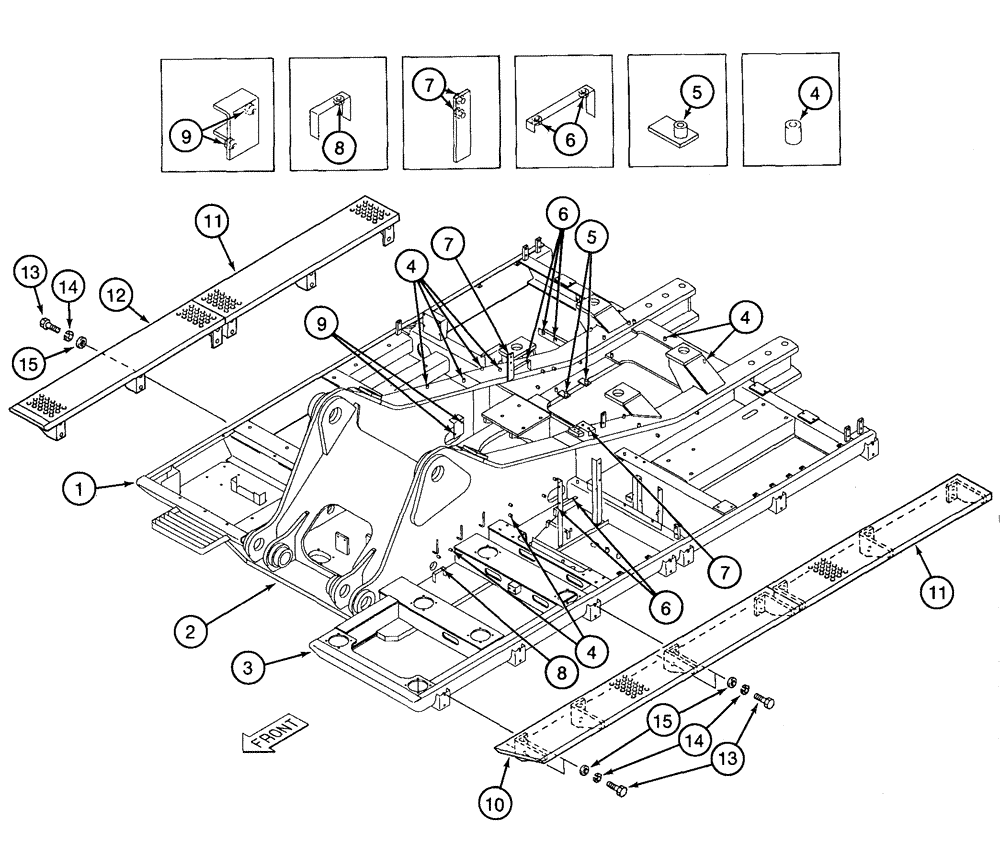

Запчасти Case 9050B (9-006) - TURNTABLE AND WALKWAYS (09) - CHASSIS

163829A1

FRAME ASSY

TURNTABLE, excavator, Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

PLATFORM - turntable right-hand

1шт.

2

NSS

NOT SOLD SEPARAT

FRAME - boom mounting

1шт.

3

NSS

NOT SOLD SEPARAT

PLATFORM - turntable left-hand

1шт.

4

158811A1

BOSS

special weld on

44шт.

5

158918A1

SPECIAL NUT

special

4шт.

6

829-1308

NUT,M8, Cl 10

- hex, 8 mm - 1.25, Cl 10

11шт.

7

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

6шт.

8

829-1306

NUT,M6, Cl 10

hex, 6 mm - 1.0, class 10

3шт.

9

829-1310

NUT,M10, Cl 10

- hex, 10 mm - 1.5, class 10, RH and LH rear

2шт.

10

162288A1

GRATING

WALKWAY - turntable left-hand front

1шт.

11

162289A1

GRATING

WALKWAY - turntable right-hand and left-hand rear

2шт.

12

162290A1

GRATING

WALKWAY, turntable right-hand front

1шт.

13

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads 12 - 1.75 x 30 mm, class 10.9

26шт.

14

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

26шт.

15

150900A1

WASHER

flat, 12 mm

26шт.
