(9-004) - TURNTABLE BEARING LUBRICATION LINES

Запчасти Case 9050B (9-004) - TURNTABLE BEARING LUBRICATION LINES (09) - CHASSIS

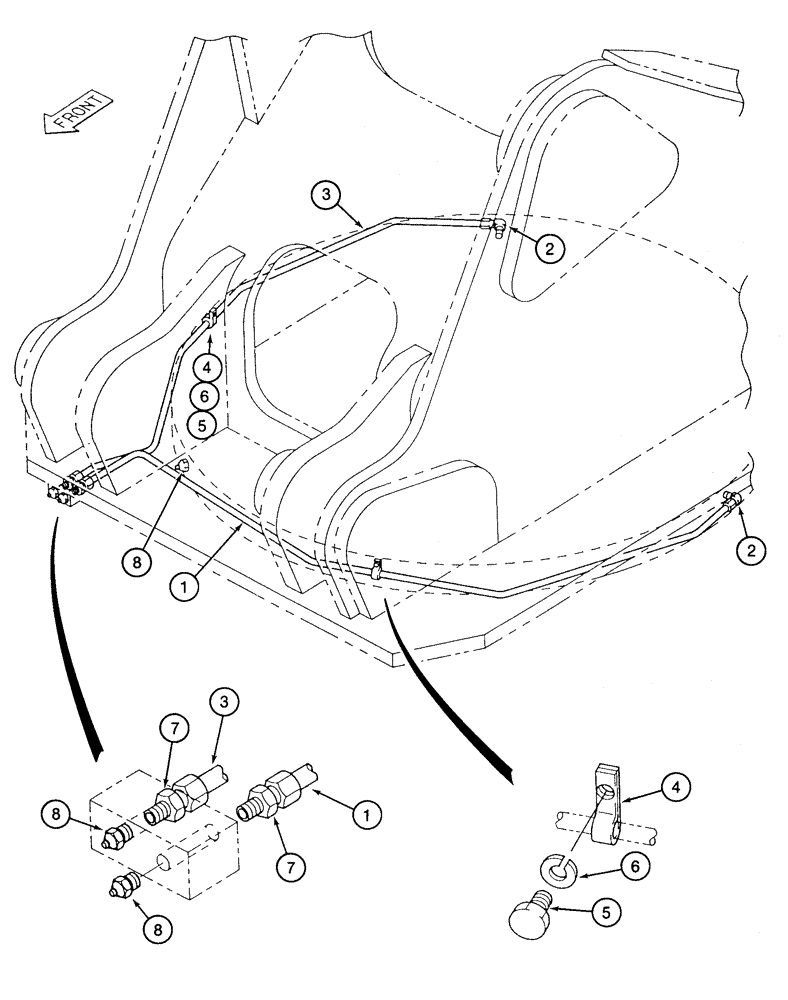

Схема запчастей Case 9050B - (9-004) - TURNTABLE BEARING LUBRICATION LINES (09) - CHASSIS
8
2
7
4
6
8
7
6
5
2
8
4
3
1
3
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

158786A1

TUBE ASSY.,6 mm ID, 8 mm OD

lubrication

1шт.

2

152627A1

ELBOW

90 degree, special

2шт.

3

158787A1

TUBE ASSY.,6 mm ID, 8 mm OD

lubrication

1шт.

4

150566A1

CLAMP

P-type, lubrication lines

2шт.

5

628-6012

BOLT,Hex, M6 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

2шт.

6

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

7

152599A1

MULTIPOLE CONNECTOR

straight, special

2шт.

8

153630A1

LUBE NIPPLE

FITTING grease, special

3шт.
