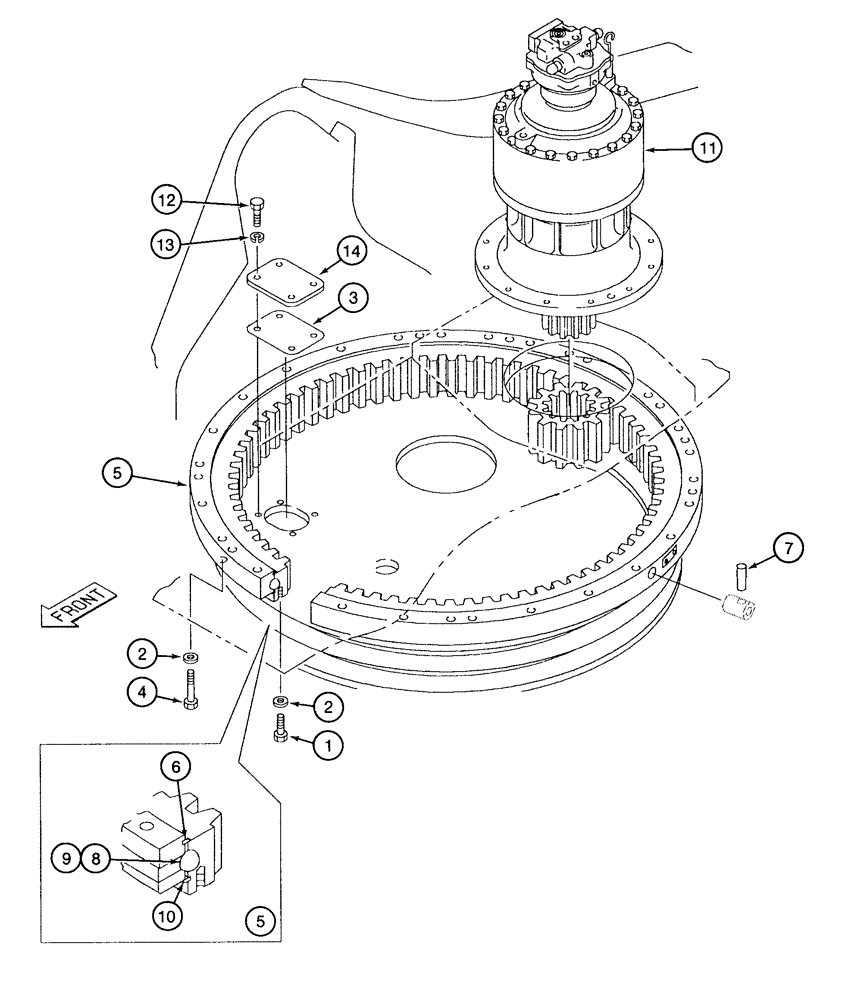

Запчасти Case 9050B (9-002) - TURNTABLE BEARING (09) - CHASSIS

1

827-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

- hex, 24 - 3.0 x 90 mm, class 10.9

42шт.

2

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

flat, special

80шт.

3

151070A1

GASKET

access cover

1шт.

4

827-24140

BOLT,Hex, M24 x 3 x 140mm, Cl 10.9

hex, 24 - 3.0 x 140 mm, class 10.9

38шт.

5

162087A1

BEARING,1192 mm ID x 1512 mm OD x 135 mm

BEARING ASSEMBLY, turntable, Includes: Ref. 6 - 10

1шт.

6

162548A1

SEALING RING

RING, upper

1шт.

7

162549A1

LINCH PIN

special, stopper

1шт.

8

162550A1

BEARING, BALL,41.27mm OD

turntable

93шт.

9

162551A1

SPACER

ball bearing

93шт.

10

162552A1

SEALING RING

RING, lower

1шт.

11

162100A1

MOTOR, HYDRAULIC

ASSEMBLY - swing see Fig. 8-168

1шт.

12

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

4шт.

13

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

14

151068A1

LID

COVER access

1шт.
