(8-172) - SWING REDUCTION GEAR ASSEMBLY

Запчасти Case 9050B (8-172) - SWING REDUCTION GEAR ASSEMBLY (08) - HYDRAULICS

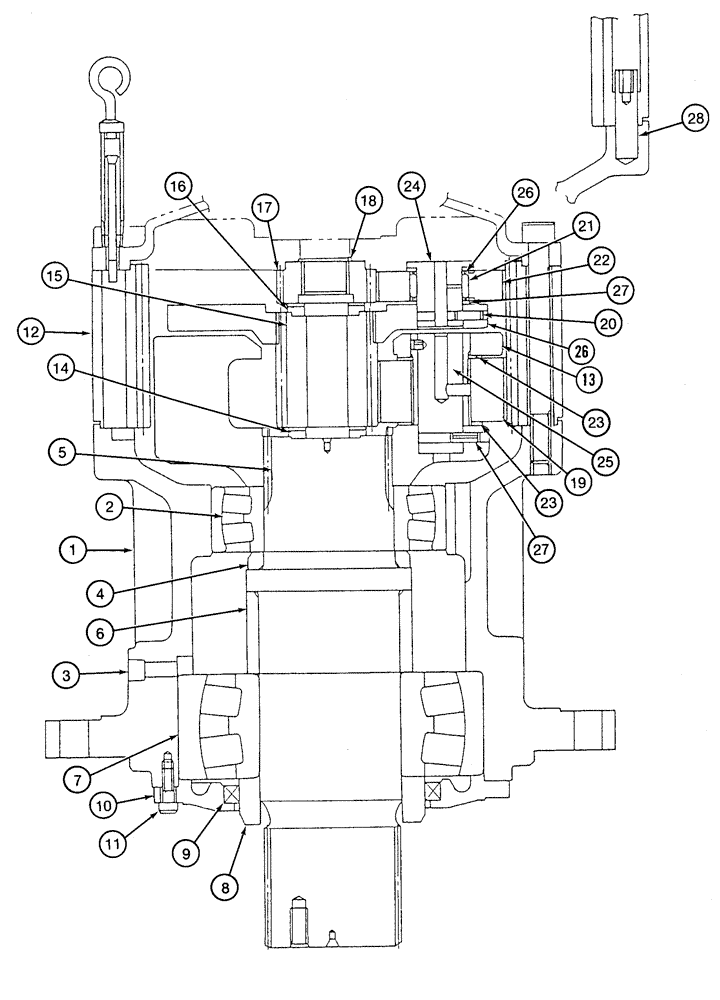

Схема запчастей Case 9050B - (8-172) - SWING REDUCTION GEAR ASSEMBLY (08) - HYDRAULICS
25
7
6
18
13
12
16
28
23
3
9
4
23
10
2
19
22
27
21
27
5
14
1
26
20
8
26
24
15
11
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

158853A1

REDUCER

GEAR ASSEMBLY, Includes: Ref. 1 - 28

1шт.

1

150427A1

HOUSING ASSY.

gear

1шт.

2

150260A1

ROLLER BEARING,120 mm ID x 215 mm OD x 58 mm

roller

1шт.

3

150825A1

PLUG

port

1шт.

4

150500A1

SPACER

bearing

1шт.

5

150437A1

SHAFT

drive

1шт.

6

150503A1

SPACER

bearing

1шт.

7

150491A1

ROLLER BEARING,130mm ID x 280mm OD x 93mm W

roller

1шт.

8

150468A1

HOLDER

RING

1шт.

9

150494A1

OIL SEAL

oil

1шт.

10

158854A1

RETAINER

oil seal

1шт.

11

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

16шт.

12

150528A1

PINION

GEAR ring

1шт.

13

150534A1

HOUSING

planetary

1шт.

14

150471A1

PLATE, THRUST

1шт.

15

150538A1

SUN GEAR

1шт.

16

150471A1

PLATE, THRUST

1шт.

17

150536A1

SUN GEAR

1шт.

18

800-1145

SNAP RING,M45, Ext

1шт.

19

150544A1

SUN GEAR

planetary carrier

1шт.

20

150532A1

BEARING CARRIER

planet

1шт.

21

150489A1

BEARING, NEEDLE

3шт.

22

150541A1

SUN GEAR

planetary

3шт.

23

150463A1

WASHER, THRUST

PLATE side

8шт.

24

150451A1

GEAR SHAFT

PIN planetary gear

3шт.

25

150456A1

GEAR SHAFT

PIN

4шт.

26

150458A1

WASHER, THRUST

PLATE side

6шт.

27

738-1825

LOCK PIN,M8 x 25, Slotted

7шт.

28

150474A1

PIN

special

4шт.
