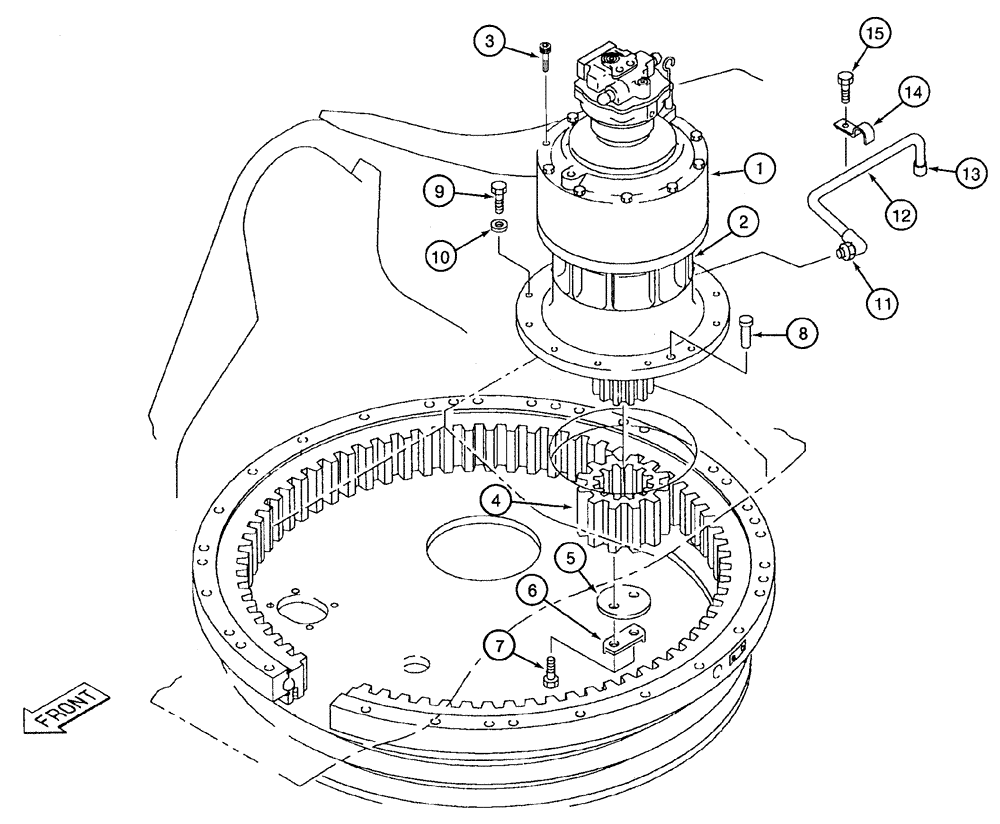

Запчасти Case 9050B (8-166) - SWING DRIVE ASSEMBLY AND MOUNTING (08) - HYDRAULICS

162088A1

MOTOR

ASSEMBLY, swing drive with reduction gear, Includes: Ref. 1 - 3

1шт.

1

162100A1

MOTOR, HYDRAULIC

ASSEMBLY, swing parts list on figures 8-168 and 8-170

1шт.

2

158853A1

REDUCER

GEAR ASSEMBLY, reduction swing drive, parts list on figure 8-172

1шт.

3

150483A1

BOLT,Hex Skt, M20

hex socket, special

12шт.

4

150506A1

PINION

GEAR drive

1шт.

5

150285A1

PLATE, LOCKING

end

1шт.

6

114262A1

LOCK WASHER

RETAINER plate

1шт.

7

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

8

150317A1

HEADED PIN,24mm OD x 90mm L

alignment, headed locator

1шт.

9

827-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

- hex, 24 - 3.0 x 90 mm, class 10.9

12шт.

10

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

flat, special

12шт.

11

150073A1

ADAPTER

straight, special

1шт.

12

162545A1

TUBE ASSY.,16.1 mm ID, 21.7 mm OD

drain

1шт.

13

162547A1

CAP

tube

1шт.

14

162546A1

COLLAR

tube

1шт.

15

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

1шт.
