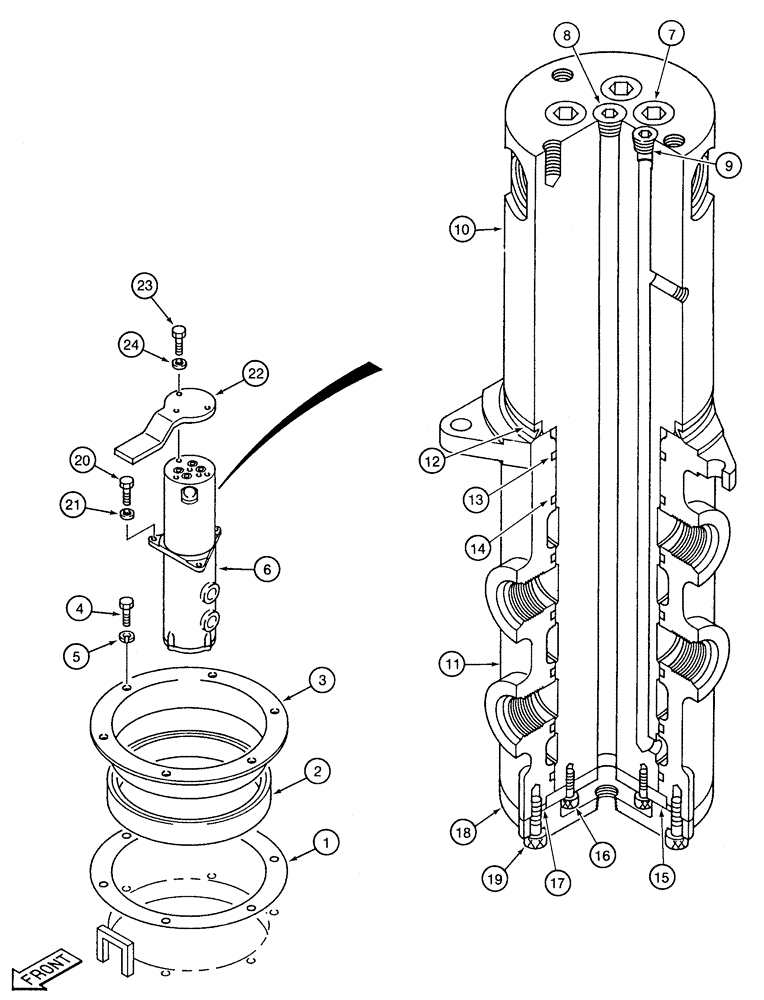

Запчасти Case 9050B (8-164) - HYDRAULIC SWIVEL (08) - HYDRAULICS

1

152596A1

RUBBER SEAL

GASKET - rubber

1шт.

2

151009A1

SEALING RING

RING - wiper

1шт.

3

152635A1

RETAINER

- wiper ring

1шт.

4

628-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads 12 - 1.75 x 20 mm, class 10.9

6шт.

5

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

6шт.

6

152096A1

HYDRAULIC SWIVEL

SWIVEL ASSEMBLY - hydraulic, Includes: Ref. 7 - 19

1шт.

7

150829A1

PLUG

special top of swivel

4шт.

8

150825A1

PLUG

port top of swivel

1шт.

9

150824A1

PLUG

port top of swivel

1шт.

10

152088A1

HOUSING

swivel

1шт.

11

151535A1

ROTOR

hydraulic swivel

1шт.

12

151542A1

SEALING RING

RING - swivel shaft vee type

1шт.

13

152623A1

O-RING

rotor

1шт.

14

151545A1

PACKING RING

sealing

6шт.

15

152097A1

PLATE, THRUST

1шт.

16

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 20 mm, class 12.9

4шт.

17

150911A1

O-RING

swivel base

1шт.

18

151540A1

COVER

BASE - swivel

1шт.

19

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

20

626-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads 12 - 1.75 x 30 mm, class 10.9

3шт.

21

150988A1

WASHER

flat, special 12 mm

3шт.

22

152092A1

BAR

anti-rotation

1шт.

23

626-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

3шт.

24

150991A1

WASHER

flat, special 16 mm

3шт.
