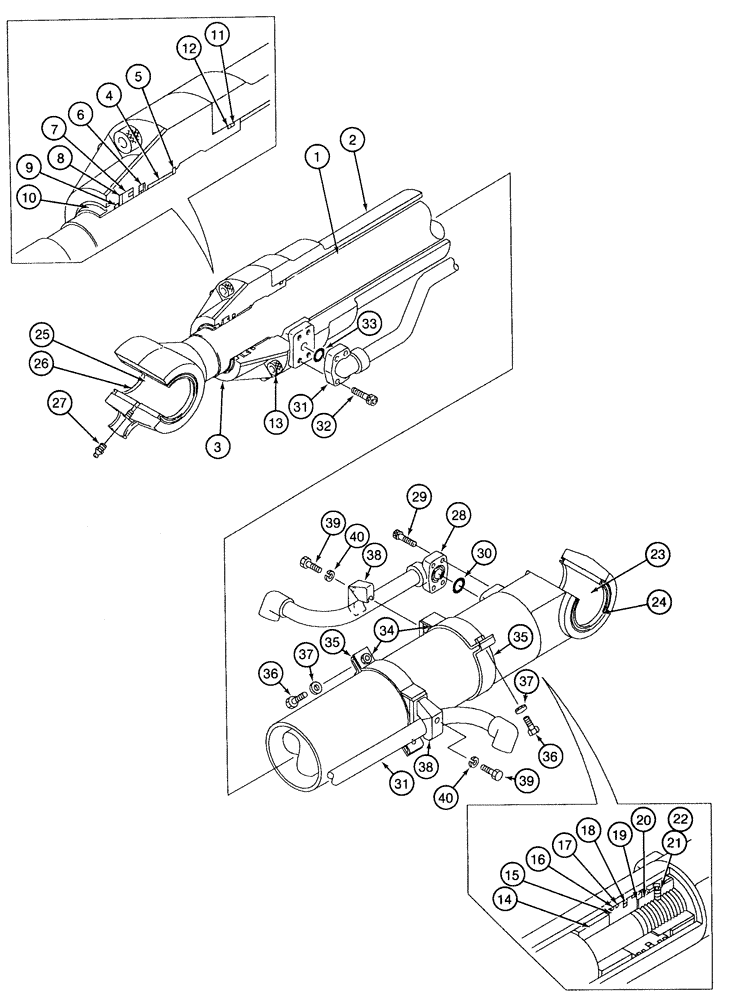

Запчасти Case 9050B (8-160) - BUCKET CYLINDER (08) - HYDRAULICS

162090A1

CYLINDER ASSY.

5-1/2 (140) ID x 50-1/4 inch (1275 mm) stroke bucket, Includes: Ref. 1 - 40

1шт.

1

162739A1

PISTON ROD

cylinder includes Ref. 25

1шт.

2

162740A1

JACK BODY

TUBE - cylinder includes Ref. 23

1шт.

3

162738A1

CYLINDER END CAP

GLAND - cylinder

1шт.

4

155418A1

BUSHING

gland

1шт.

5

155706A1

RING, SNAP

retaining

1шт.

6

155148A1

SEALING RING

RING - buffer

1шт.

Part of repair kit P/N 162733A1

1шт.

7

155112A1

RING

SEAL - U-cup

1шт.

Part of repair kit P/N 162733A1

1шт.

8

155238A1

BACK-UP RING

1шт.

Part of repair kit P/N 162733A1

1шт.

9

155327A1

RING

SEAL - piston rod

1шт.

Part of repair kit P/N 162733A1

1шт.

10

162700A1

WIPER SEAL

WIPER - piston rod

1шт.

Part of repair kit P/N 162733A1

1шт.

11

154776A1

O-RING

piston rod

1шт.

Part of repair kit P/N 162733A1

1шт.

12

155233A1

SEALING RING

1шт.

Part of repair kit P/N 162733A1

1шт.

13

863-22075

HEX SOC SCREW,M22 x 75mm, Cl 12.9

BOLT - hex socket 22 - 2.5 x 75 mm, class 12.9

8шт.

14

162753A1

RING

- cushion

1шт.

15

155980A1

PISTON

1шт.

16

155307A1

RING

slide

2шт.

Part of repair kit P/N 162733A1

1шт.

17

155321A1

RING

slide

2шт.

Part of repair kit P/N 162733A1

1шт.

18

155312A1

SEALING RING

1шт.

Part of repair kit P/N 162733A1

1шт.

19

155732A1

SHIM

special

1шт.

Part of repair kit P/N 162733A1

1шт.

20

156229A1

NUT

piston retaining

1шт.

21

156228A1

SET SCREW

1шт.

22

155981A1

BALL

- Steel

1шт.

23

155423A1

BUSHING

Tube closed end

1шт.

24

155151A1

WIPER SEAL

WIPER - mounting pin closed end

2шт.

25

155424A1

BUSHING

Cylinder rod end

1шт.

26

155152A1

BACK-UP RING

WIPER - Mounting pin rod end

2шт.

27

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

162733A1

SEAL KIT

KIT - repair includes Ref. 6 thru 12, 16 thru 19

1шт.

28

155535A1

HYD TUBE

TUBE - hydraulic

1шт.

29

861-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

SCREW - hex socket 12 - 1.75 x 40 mm, class 12.9

4шт.

30

154543A1

O-RING

- Tube

1шт.

31

155536A1

HYD TUBE

TUBE - hydraulic rod end

1шт.

32

861-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

SCREW - hex socket 12 - 1.75 x 40 mm, class 12.9

4шт.

33

154543A1

O-RING

- Tube

1шт.

34

156378A1

MOUNTING CLIP

band

2шт.

35

156375A1

MOUNTING CLIP

CLAMP

2шт.

36

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

hex, special

4шт.

37

156227A1

WASHER

lock, special

4шт.

38

155716A1

COLLAR

tube

2шт.

39

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm, class 10.9

2шт.

40

112312A1

LOCK WASHER

lock 12 mm

2шт.
