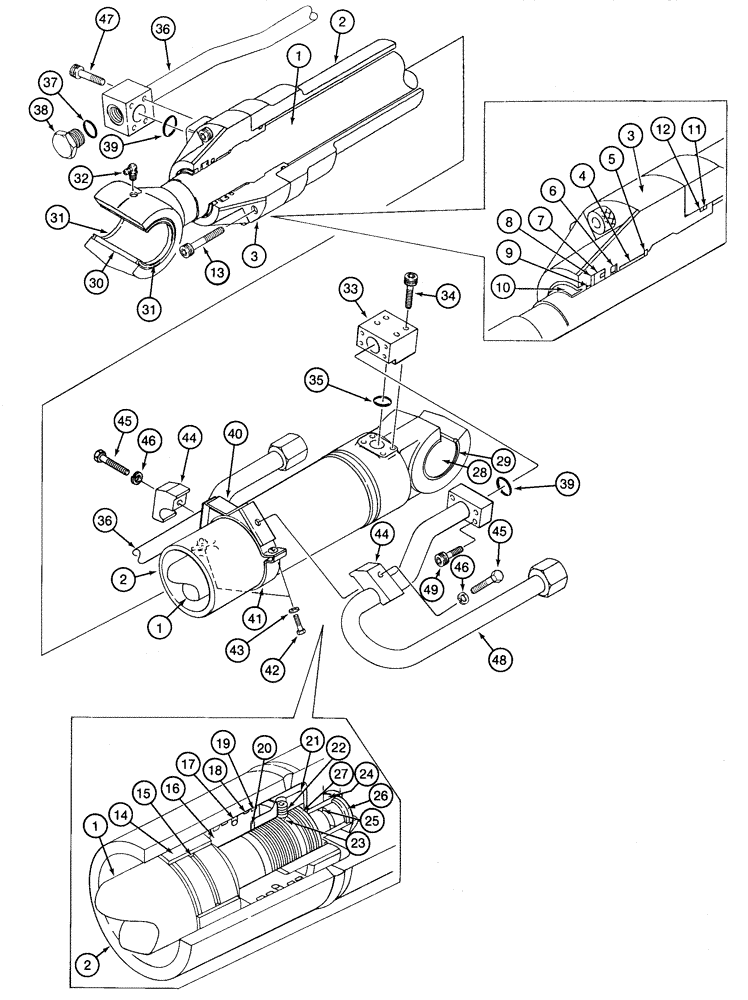

Запчасти Case 9050B (8-158) - ARM CYLINDER (08) - HYDRAULICS

164553A1

CYLINDER

ASSEMBLY - 6-5/16 (160) ID x 68-1/4 inch (1733 mm) stroke arm, replaces 162091A1 cylinder assembly on figure 8-156, Includes: Ref. 1 - 48

1шт.

1

162744A1

KIT

ROD - Cylinder includes Ref 30

1шт.

2

162745A1

HYD CYL SLEEVE

Includes Ref 28

1шт.

3

162742A1

CYLINDER END CAP

Gland, Includes Ref 4

1шт.

4

155428A1

BUSHING

- Gland

1шт.

5

155704A1

RING, SNAP

RING SNAP - Retaining

1шт.

6

162697A1

RING

Buffer

1шт.

Part of repair kit P/N 162741A1

1шт.

7

155114A1

RING

Seal - U-cup

1шт.

Part of repair kit P/N 162741A1

1шт.

8

155237A1

BACK-UP RING

1шт.

Part of repair kit P/N 162741A1

1шт.

9

162708A1

RING

- Slide

1шт.

Part of repair kit P/N 162741A1

1шт.

10

155127A1

WIPER SEAL

WIPER - Piston rod

1шт.

Part of repair kit P/N 162741A1

1шт.

11

154812A1

O-RING,149.6mm ID x 5.7mm Width

SEAL - gland

1шт.

Part of repair kit P/N 162741A1

1шт.

12

155242A1

BACK-UP RING

1шт.

Part of repair kit P/N 162741A1

1шт.

13

156232A1

BOLT,Hex Skt

Hex socket

8шт.

14

155734A1

RING

Cushion

1шт.

15

162698A1

SEAL

Piston

1шт.

Part of repair kit P/N 162741A1

1шт.

16

162732A1

JACK PISTON

Cylinder

1шт.

162743A1

SEAL KIT

Piston seal, Includes Ref 17 - 19

1шт.

17

162706A1

SEALING RING

Piston

1шт.

Part of repair kit P/N 162741A1

1шт.

18

155340A1

RING

Wear

2шт.

Part of repair kit P/N 162741A1

1шт.

19

155341A1

RING

Wear

2шт.

Part of repair kit P/N 162741A1

1шт.

20

155733A1

SHIM

Washer - Special

1шт.

Part of repair kit P/N 162741A1

1шт.

21

156230A1

NUT

- Piston retaining

1шт.

22

156228A1

SET SCREW

1шт.

23

155981A1

BALL

- Steel

1шт.

24

162709A1

BEARING

RING

1шт.

25

160127A1

SEAL

- Cushion

1шт.

Part of repair kit P/N 162741A1

1шт.

26

160128A1

STOP

- Cushion

2шт.

27

160129A1

RING, SNAP

RING SNAP

1шт.

28

155427A1

BUSHING

- Tube, closed end

1шт.

29

155152A1

BACK-UP RING

WIPER - Mounting pin closed end

2шт.

30

155427A1

BUSHING

- Rod eye

1шт.

31

155152A1

BACK-UP RING

WIPER - Mounting pin rod end

2шт.

32

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.

33

164149A1

JOINT

Block - Coupling closed end

1шт.

34

861-12095

HEX SOC SCREW,M12 x 95mm, Cl 12.9

SCREW - hex socket, 12 - 1.75 x 95 mm, class 12.9

4шт.

35

154543A1

O-RING

- Elbow

1шт.

36

164564A1

HYD TUBE

hydraulic rod end, Includes: Ref. 37 and 38

1шт.

37

154539A1

O-RING

plug

1шт.

38

NSS

NOT SOLD SEPARAT

hydraulic port, at tube flange

1шт.

39

154579A1

O-RING

tube assembly

2шт.

40

165106A1

CLAMP

band, half with two tube mounting flats

1шт.

41

156390A1

BAND

CLAMP - band plain half

1шт.

42

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

hex, special

2шт.

43

156227A1

WASHER

lock, special

2шт.

44

155736A1

HALF-FLANGE

tube

2шт.

45

153910A1

BOLT,High Strength, Hex, M14 x 80mm

BOLT - hex, special

2шт.

46

156547A1

WASHER

special

2шт.

47

156231A1

BOLT

hex socket

4шт.

48

164565A1

HYD TUBE

hydraulic cylinder closed end

1шт.

49

164569A1

BOLT

hex socket, special

4шт.

162741A1

KIT

repair includes Ref. 6 thru 12, 15, 17 thru 20, and 25

1шт.
