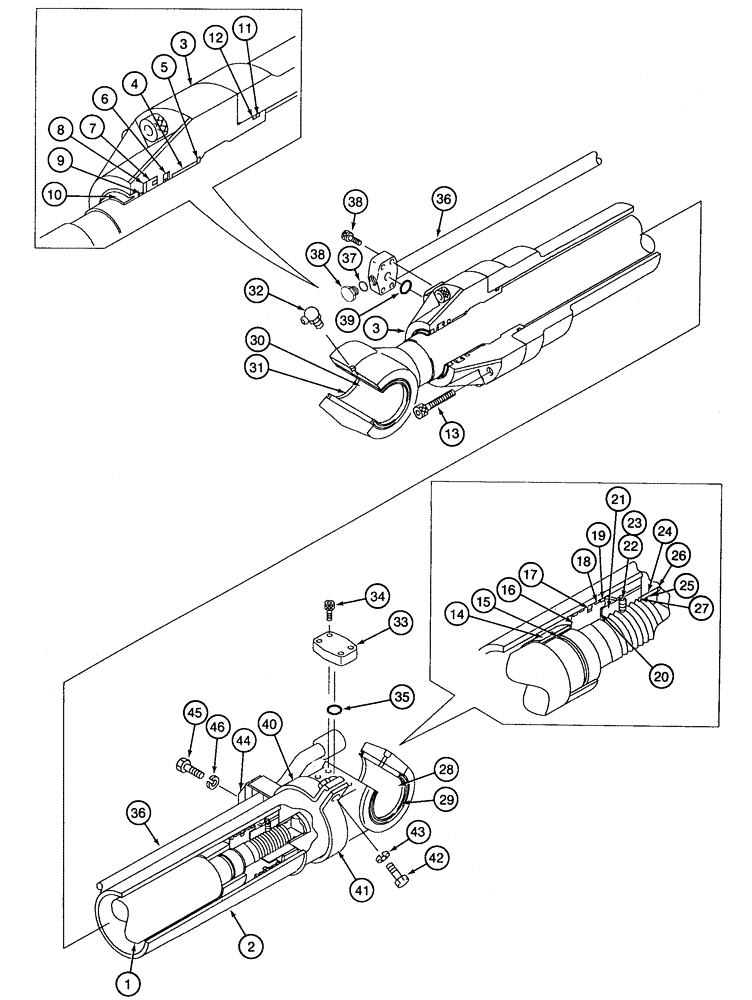

Запчасти Case 9050B (8-156) - ARM CYLINDER (08) - HYDRAULICS

162091A1

CYLINDER

ASSEMBLY - 6-5/16 (160) ID x 68-1/4 inch (1733 mm) stroke arm, replaced by 164553A1 cylinder assembly on figure 8-158, Includes: Ref. 1 - 47

1шт.

1

162744A1

KIT

ROD - Cylinder includes Ref 30

1шт.

2

162745A1

HYD CYL SLEEVE

Includes Ref 28

1шт.

3

162742A1

CYLINDER END CAP

Gland, Includes Ref 4

1шт.

4

155428A1

BUSHING

- Gland

1шт.

5

155704A1

RING, SNAP

RING SNAP - Retaining

1шт.

6

162697A1

RING

Buffer

1шт.

Part of repair kit P/N 162741A1

1шт.

7

155114A1

RING

Seal - U-cup

1шт.

Part of repair kit P/N 162741A1

1шт.

8

155237A1

BACK-UP RING

1шт.

Part of repair kit P/N 162741A1

1шт.

9

162708A1

RING

- Slide

1шт.

Part of repair kit P/N 162741A1

1шт.

10

155127A1

WIPER SEAL

WIPER - Piston rod

1шт.

Part of repair kit P/N 162741A1

1шт.

11

154812A1

O-RING,149.6mm ID x 5.7mm Width

SEAL - gland

1шт.

Part of repair kit P/N 162741A1

1шт.

12

155242A1

BACK-UP RING

1шт.

Part of repair kit P/N 162741A1

1шт.

13

156232A1

BOLT,Hex Skt

Hex socket

8шт.

14

155734A1

RING

Cushion

1шт.

15

162698A1

SEAL

Piston

1шт.

Part of repair kit P/N 162741A1

1шт.

16

162732A1

JACK PISTON

Cylinder

1шт.

162743A1

SEAL KIT

Piston seal, Includes Ref 17 - 19

1шт.

17

162706A1

SEALING RING

Piston

1шт.

Part of repair kit P/N 162741A1

1шт.

18

155340A1

RING

Wear

2шт.

Part of repair kit P/N 162741A1

1шт.

19

155341A1

RING

Wear

2шт.

Part of repair kit P/N 162741A1

1шт.

20

155733A1

SHIM

Washer - Special

1шт.

Part of repair kit P/N 162741A1

1шт.

21

156230A1

NUT

- Piston retaining

1шт.

22

156228A1

SET SCREW

1шт.

23

155981A1

BALL

- Steel

1шт.

24

162709A1

BEARING

RING

1шт.

25

160127A1

SEAL

- Cushion

1шт.

Part of repair kit P/N 162741A1

1шт.

26

160128A1

STOP

- Cushion

2шт.

27

160129A1

RING, SNAP

RING SNAP

1шт.

28

155427A1

BUSHING

- Tube, closed end

1шт.

29

155152A1

BACK-UP RING

WIPER - Mounting pin closed end

2шт.

30

155427A1

BUSHING

- Rod eye

1шт.

31

155152A1

BACK-UP RING

WIPER - Mounting pin rod end

2шт.

32

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.

33

155542A1

JOINT

BLOCK - coupling closed end

1шт.

34

863-12090

HEX SOC SCREW,M12 x 90mm, Cl 12.9

BOLT - hex socket 12 - 1.75 x 90 mm, class 12.9

4шт.

35

154543A1

O-RING

- Elbow

1шт.

36

155537A1

HYD TUBE

TUBE ASSEMBLY - hydraulic rod end, Includes: Ref. 37 and 38

1шт.

37

154539A1

O-RING

plug

1шт.

38

NSS

NOT SOLD SEPARAT

PLUG - hydraulic port, at tube flange

1шт.

39

154579A1

O-RING

- tube assembly

1шт.

40

156393A1

CLAMP

- band half iwth one tube mounting flat

1шт.

41

156390A1

BAND

CLAMP - band plain half

1шт.

42

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

hex special

2шт.

43

156227A1

WASHER

lock, special

2шт.

44

155736A1

HALF-FLANGE

tube

1шт.

45

153910A1

BOLT,High Strength, Hex, M14 x 80mm

hex, special

1шт.

46

156547A1

WASHER

special

1шт.

47

156231A1

BOLT

hex socket

4шт.

162741A1

KIT

repair includes Ref. 6 thru 12, 15, 17 thru 20, and 25

1шт.
