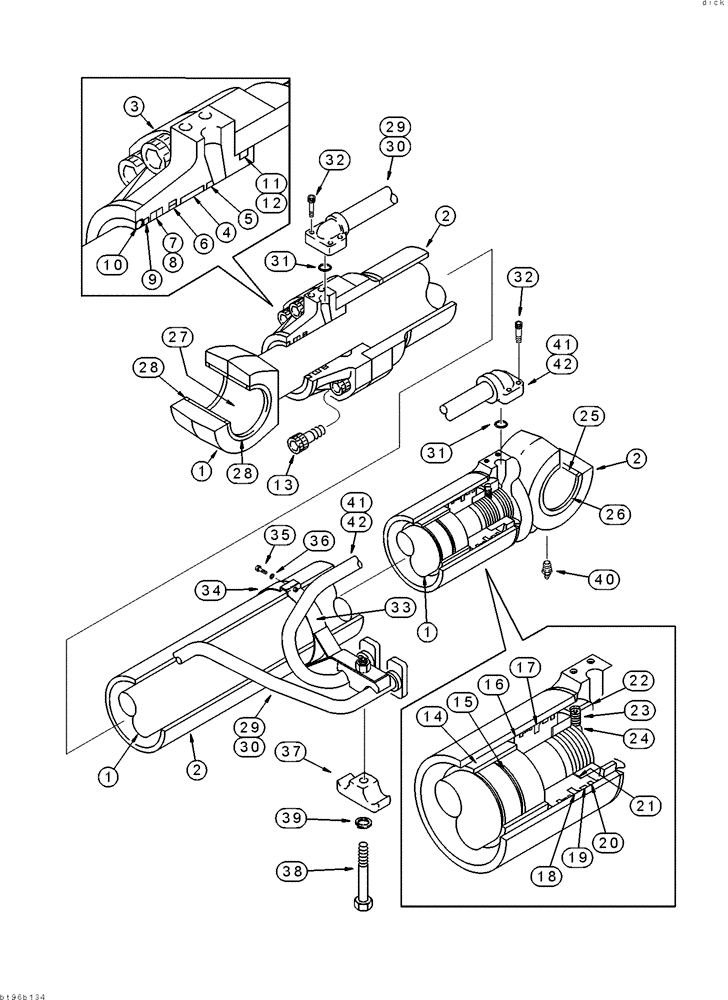

Запчасти Case 9050B (8-152) - BOOM CYLINDERS (08) - HYDRAULICS

162983A1

CYLINDER ASSY.

5-1/2 (140) ID x 58-1/4 inch (1480 mm) stroke boom, right-hand, Includes: Ref. 1 - 32

1шт.

162984A1

CYLINDER ASSY.

5-1/2 (140) ID x 58-1/4 inch (1480 mm) stroke boom, left-hand, Includes: Ref. 1 - 32

1шт.

1

162736A1

PISTON ROD

cylinder includes Ref. 27

1шт.

2

162735A1

SET OF PARTS

TUBE - cylinder includes Ref. 25

1шт.

3

162737A1

CYLINDER END CAP

GLAND - cylinder includes Ref. 4 and 5

1шт.

4

155429A1

BUSHING

gland

1шт.

5

155695A1

RING, SNAP

retaining

1шт.

6

155154A1

SEALING RING

RING - buffer

1шт.

Part of seal kit P/N 162734A1

1шт.

7

155115A1

RING

SEAL - U-cup gland

1шт.

Part of seal kit P/N 162734A1

1шт.

8

155236A1

BACK-UP RING

RING - back-up

1шт.

Part of seal kit P/N 162734A1

1шт.

9

162707A1

GUIDE RING

slide

1шт.

Part of seal kit P/N 162734A1

1шт.

10

162699A1

WIPER SEAL

WIPER - piston rod

1шт.

Part of seal kit P/N 162734A1

1шт.

11

154776A1

O-RING

- piston rod

1шт.

Part of seal kit P/N 162734A1

1шт.

12

155233A1

SEALING RING

RING - backup

1шт.

Part of seal kit P/N 162734A1

1шт.

13

863-22075

HEX SOC SCREW,M22 x 75mm, Cl 12.9

BOLT - hex socket 22 - 2.5 x 75 mm, class 12.9

8шт.

14

160550A1

RING

cushion

1шт.

15

155345A1

SEALING RING

RING - seal

1шт.

Part of seal kit P/N 162734A1

1шт.

16

155980A1

PISTON

cylinder

1шт.

17

155312A1

SEALING RING

piston, Includes: Ref. 18

1шт.

Part of seal kit P/N 162734A1

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - seal1

1шт.

Part of seal kit P/N 162734A1

1шт.

19

155321A1

RING

slide

2шт.

Part of seal kit P/N 162734A1

1шт.

20

155307A1

RING

slide

2шт.

Part of seal kit P/N 162734A1

1шт.

21

155732A1

SHIM

special

1шт.

Part of seal kit P/N 162734A1

1шт.

22

156229A1

NUT

piston retaining

1шт.

23

156228A1

SET SCREW

1шт.

24

155981A1

BALL

- Steel

1шт.

25

155425A1

BUSHING

Tube

1шт.

26

163839A1

WIPER SEAL

WIPER - pin

2шт.

27

155426A1

BUSHING

cylinder rod

1шт.

28

163840A1

WIPER SEAL

RING - wiper

2шт.

29

163842A1

HYD TUBE

hydraulic used on 162983A1 cylinder assembly

1шт.

30

163844A1

HYD TUBE

hydraulic used on 162984A1 cylinder assembly

1шт.

31

154543A1

O-RING

- Tube

2шт.

32

863-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 35 mm, class 12.9

8шт.

162734A1

SEAL KIT

KIT - seal replacement includes Ref. 6 thru 12, 15, 17 thru 21

1шт.

162983A1

CYLINDER ASSY.

5-1/2 (140) ID x 58-1/4 inch (1480 mm) stroke boom, right-hand continued

1шт.

162984A1

CYLINDER ASSY.

5-1/2 (140) ID x 58-1/4 inch (1480 mm) stroke boom, left-hand continued

1шт.

33

156392A1

GASKET

CLAMP - band

2шт.

34

156391A1

MOUNTING CLIP

CLAMP - band

1шт.

35

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

hex, special

2шт.

36

156227A1

WASHER

lock, special

2шт.

37

155709A1

COLLAR

tube

2шт.

38

153911A1

BOLT

special

1шт.

39

156547A1

WASHER

special

1шт.

40

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

41

163841A1

TUBE ASSY.

hydraulic used on 162983A1 cylinder assembly

1шт.

42

163843A1

HYD TUBE

hydraulic used on 162984A1 cylinder assembly

1шт.
