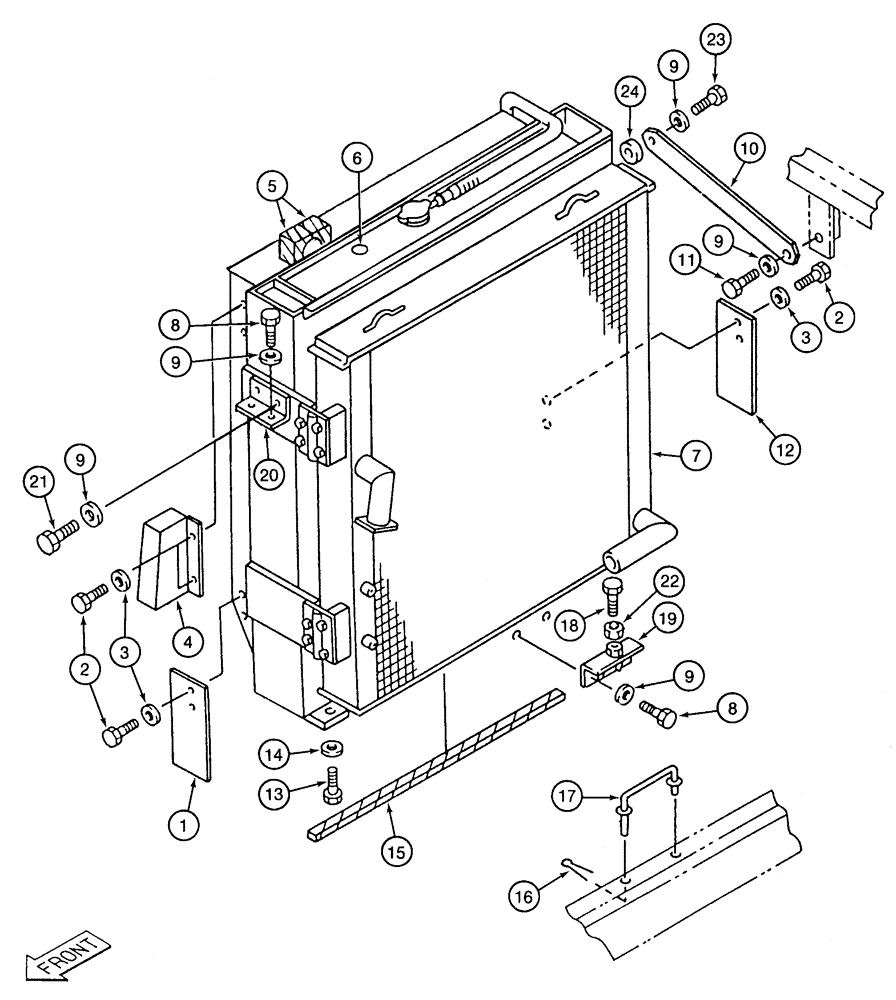

Запчасти Case 9050B (2-06) - RADIATOR MOUNTING, SUPPORTS AND SEALS (02) - ENGINE

1

162512A1

BRACKET

radiator left-hand, front

1шт.

2

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

10шт.

3

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

10шт.

4

162513A1

BRACKET

special radiator support

1шт.

5

163789A1

SEAL

cushion top radiator hose

2шт.

6

151885A1

DECAL

LABEL - coolant

1шт.

7

162882A1

RADIATOR

ASSEMBLY - water and hydraulic oil cooling see figure 2-10

1шт.

8

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads 12 - 1.75 x 30 mm, class 10.9

4шт.

9

150811A1

WASHER

flat, special 12 mm

8шт.

10

163406A1

CROSSMEMBER

SUPPORT - radiator left-hand, rear

1шт.

11

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

1шт.

12

162472A1

BRACKET

radiator left-hand, rear

1шт.

13

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

14

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

flat, special

4шт.

15

162514A1

SEAL

cushion

1шт.

16

153181A1

COTTER PIN

CLIP - hair pin

1шт.

17

162473A1

STAY

HOLDER - special swing-out radiator

1шт.

18

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

19

162517A1

BRACKET

special radiator mount, left-hand

1шт.

20

162518A1

STAY

BRACKET - special radiator mount, left-hand, front

1шт.

21

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

22

829-1416

NUT,M16, Cl 10

1шт.

23

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

- hex, 12 - 1.75 x 45 mm

1шт.

24

162883A1

SPACER

special radiator support

1шт.
