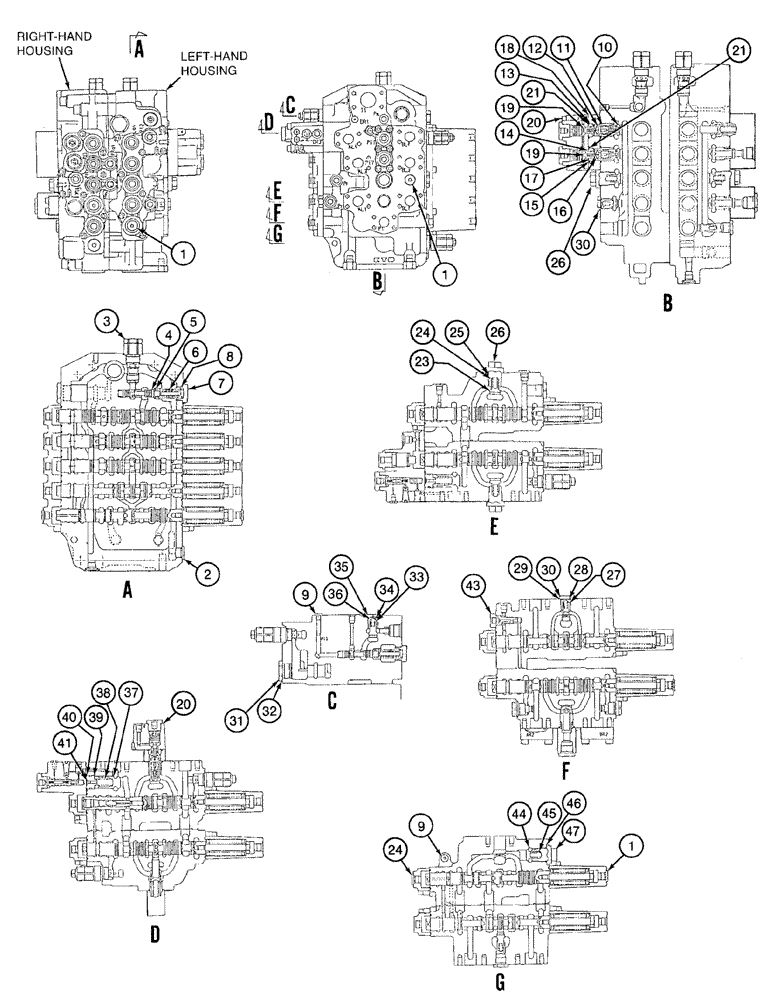

Запчасти Case 9050B (8-136) - CONTROL VALVE, MISCELLANEOUS VALVES AND COMPONENTS, LEFT-HAND HOUSING (08) - HYDRAULICS

162978A1

VALVE

ASSEMBLY - control, Includes: Ref. 1 - 45

1шт.

1

163369A1

PLUG

port

4шт.

2

163370A1

PLUG

port

1шт.

3

163371A1

VALVE

ASSEMBLY - relief, component pars not serviced separately

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - valve1

1шт.

5

163393A1

SPRING SEAT

spring

1шт.

6

163391A1

SPRING

compression

1шт.

7

163366A1

PLUG

port

1шт.

8

155224A1

O-RING

plug

1шт.

9

163368A1

PLUG

port

2шт.

10

163377A1

VALVE POPPET

1шт.

11

154535A1

O-RING

valve

1шт.

12

163395A1

SPRING

compression

1шт.

13

154535A1

O-RING

spacer

1шт.

14

163376A1

VALVE POPPET

1шт.

15

154535A1

O-RING

valve

1шт.

16

163395A1

SPRING

compression

1шт.

17

154535A1

O-RING

spacer

1шт.

18

163375A1

SPACER

cover

1шт.

19

163389A1

PISTON

valve

2шт.

20

163378A1

PLUG

COVER - valve

1шт.

21

154499A1

O-RING

cover

2шт.

22

863-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

SCREW, hex socket 10 - 1.5 x 60 mm, class 12.9

6шт.

23

160189A1

WELL

VALVE - poppet

1шт.

24

160243A1

SPRING

compression

1шт.

25

155224A1

O-RING

valve

1шт.

26

160064A1

PLUG

valve

1шт.

27

163388A1

VALVE POPPET

1шт.

28

156026A1

SPRING

compression

1шт.

29

155222A1

O-RING

valve

1шт.

30

155464A1

PLUG

1шт.

31

163364A1

PLUG

port

1шт.

32

155225A1

O-RING

plug

1шт.

33

155931A1

VALVE POPPET

1шт.

34

156026A1

SPRING

compression

1шт.

35

155464A1

PLUG

1шт.

36

155222A1

O-RING

plug

1шт.

37

163390A1

VALVE POPPET

1шт.

38

163394A1

SPRING

compression

1шт.

39

163374A1

SPACER

special cover

1шт.

40

154549A1

O-RING

cover

1шт.

41

154471A1

O-RING

cover

1шт.

42

155449A1

PLUG

special

1шт.

43

160065A1

PLUG

special

1шт.

44

160189A1

WELL

VALVE - poppet

1шт.

45

160243A1

SPRING

compression

1шт.

46

155224A1

O-RING

valve

1шт.

47

160064A1

PLUG

valve

1шт.
